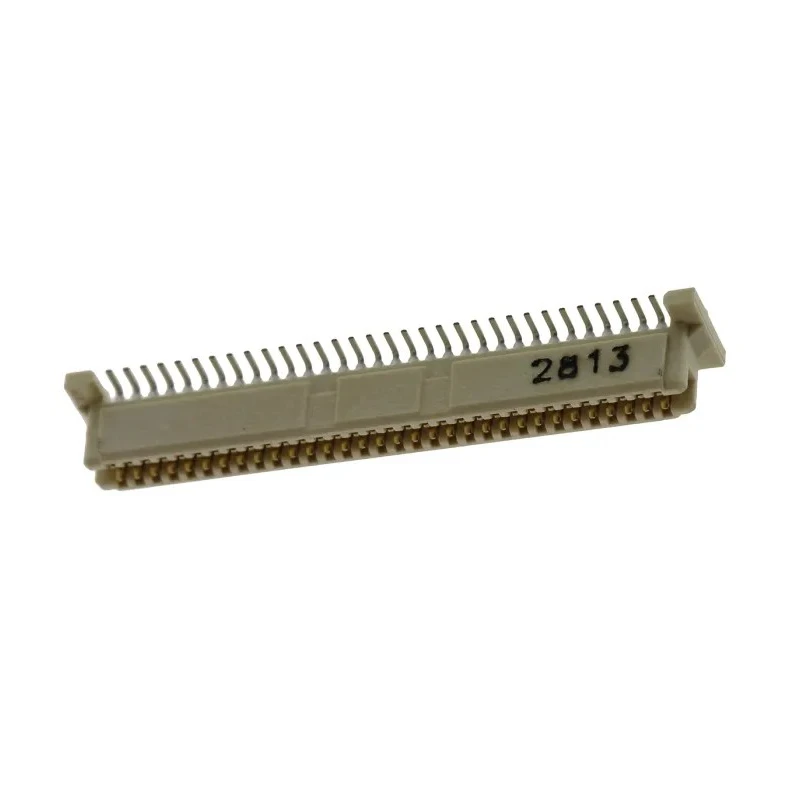

Molex PMC Mezzanine Series Straight Surface Edge Connector 64-Contact 2 Row 1 mm Pitch Solder 71439-0164
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | PMC Mezzanine |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN, WAN, telecommunication, PC and workstation applications |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
| Row Pitch | 1.4mm |
| Mated heights | 8 → 15mm (see combination guide) |
Key Features
- Supports currents up to 12A for reliable power transmission.
- Constructed with a thermoplastic housing ensuring high durability.
- Features gold-plated bronze contacts with female gender for optimal signal quality.
- Designed for surface mount with straight orientation, enabling compact PCB assembly.
- Operating temperature ranges from -55°C to 85°C for robust performance.
- Vertical stacking SMT headers suitable for PCI and S-bus mezzanine cards.
- Low insertion force sockets with shrouded leaf design to protect header contacts.
- High-temperature LCP housing compatible with reflow solder processes.
Product Description
Molex 71439-0164 PMC Mezzanine Series Straight Surface Edge Connector is a specialized board-to-board connector designed for high-density applications requiring reliable electrical connections. With a 64-contact, 2-row configuration and 1 mm pitch, it allows compact vertical stacking of mezzanine cards in devices.
Constructed with a durable thermoplastic housing, this surface mount connector is engineered for high-temperature soldering processes with a maximum operating temperature of 85°C and minimum of -55°C. Gold-plated bronze female contacts ensure excellent conductivity and low contact resistance, which are critical in signal and power transmission.
The connector is optimized for LAN, WAN, telecommunication, PC, and workstation environments. Its shrouded leaf design minimizes damage to header contacts and reduces insertion force, improving assembly efficiency and connector longevity.
This PMC Mezzanine Series connector supports PCI and S-bus (IEEE 1386) mezzanine cards compatible with VMEbus and Multibus host boards. Mated heights range from 8 mm to 15 mm as per the combination guide, providing design flexibility.
Currently serving industrial and electronic assembly use cases such as telecommunications equipment, computing systems, and networking hardware. Ideal for construction of compact, high-performance electronic modules demanding precise and robust board-to-board connections.
Connector system facilitates signal and power transfer with low insertion force for ease of manufacturing and serviceability. This product is manufactured in the United States and complies with UL recognized component standards where applicable.
Explore EnvMart's extensive range of electronic connectors and PCB components to find compatible parts for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex PMC Mezzanine Series connector supports a maximum current of 12A for reliable power transmission.
This connector operates within a temperature range of -55°C to 85°C, making it suitable for various environmental conditions.
It is designed for surface mounting, allowing for compact PCB assembly in high-density applications.
The connector features a total of 64 contacts arranged in a 2-row configuration with a 1 mm pitch.
The housing is made from thermoplastic, and the contacts are gold-plated bronze, which ensures good conductivity and low contact resistance.
It is optimized for LAN, WAN, telecommunication, PC, and workstation environments, making it versatile for various electronic assembly uses.
The connector features female contacts, which are designed for optimal signal quality and ease of connection.
The pitch of this connector is 1 mm, which allows for compact arrangements in electronic designs.
The mated heights for this connector range from 8 mm to 15 mm, providing design flexibility for various applications.
This model uses solder termination, which is suitable for permanent connections on PCBs.
Yes, it complies with UL recognized component standards where applicable, ensuring safety and reliability in use.
The connector is manufactured in the United States, ensuring adherence to local manufacturing standards.
