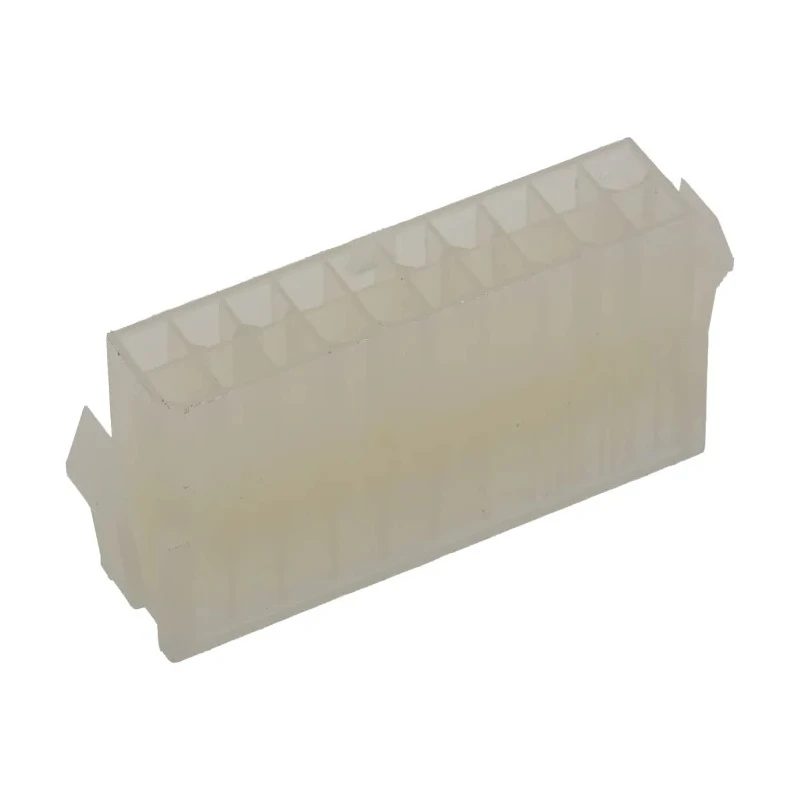

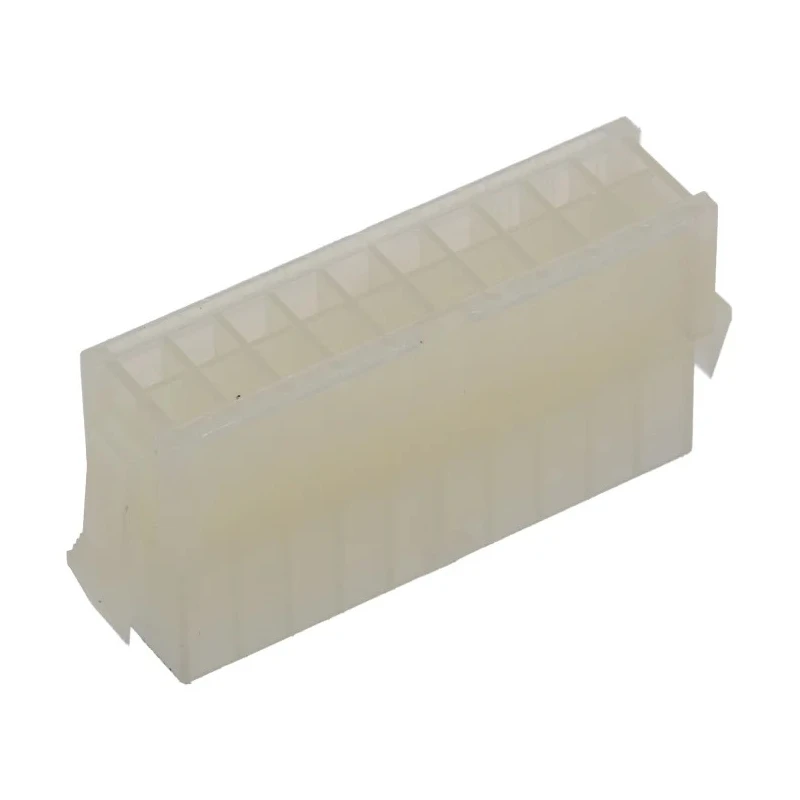

Molex Mini-Fit Male Connector Housing Panel Mount 20 Contacts 2 Row Straight 4.2 mm Pitch 39-01-2201
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 48.6mm |
| Width | 23.9mm |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 5558, 30490 Male Terminals, 46012 Mini-Fit Plus Crimp Terminals |
| Number of Contacts | 20 |
| Connector Gender | Male |
Key Features
- Constructed of durable nylon material resistant to impact and abrasion.
- Designed for panel mount with a positive locking mechanism to prevent accidental disconnection.
- Supports up to 13A current per contact for demanding electrical applications.
- Compatible with 5558, 30490 male terminals, and 46012 Mini-Fit Plus crimp terminals.
- Suitable for wire-to-wire and wire-to-board connections in industrial and electronic equipment.
- Compact dimensions of 48.6 mm length and 23.9 mm width for space-saving installation.
- Reliable operation in a broad temperature range with consistent performance.
- Used in applications such as industrial control panels, medical equipment, and computer assemblies.
Product Description
Molex 39-01-2201 Mini-Fit Male Connector Housing is a robust connector housing designed for electrical and electronic applications requiring reliable connections with high current capacity. This connector housing features 20 contacts arranged in 2 rows with a pitch of 4.2 mm and a straight orientation, making it ideal for panel mount configurations.
The housing is molded from hardwearing nylon material that offers excellent resistance to impact and abrasion, ensuring durability in demanding industrial environments. It is designed to support a maximum current of 13 amperes per contact, making it suitable for power distribution and control panel applications.
This connector housing includes a positive locking mechanism and an easy-to-operate thumb latch that provides secure mating with its female counterpart, reducing the risk of accidental disconnections and service interruptions. Its compact dimensions of approximately 48.6 mm length and 23.9 mm width enable space-efficient installations in electronic assemblies.
The Mini-Fit Jr Series connectors by Molex are engineered for versatility, supporting both wire-to-wire and wire-to-board connections. Compatible with a variety of crimp terminals such as 5558, 30490 Male Terminals, and 46012 Mini-Fit Plus Crimp Terminals, this housing offers flexibility for different wiring needs.
Common industrial applications include use in control panels, medical equipment, testing and measuring instruments, and computer assemblies, where reliable electrical connections and ease of service are critical.
Durable nylon construction for long-lasting performance. Positive locking and keying to prevent mismatching and accidental disconnects. Compact size for efficient use of space in assemblies. Supports up to 13A current per contact suitable for demanding electrical loads.
Broad application across industrial, medical, and computing equipment.
Choose the Molex 39-01-2201 Mini-Fit Male Connector Housing for secure, compact, and reliable electrical connector housing solutions. Browse more from Molex products and Connector Housings on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports up to 13A current per contact, making it suitable for demanding electrical applications.
It has compact dimensions of approximately 48.6 mm in length and 23.9 mm in width, allowing for space-saving installation.
It is compatible with 5558, 30490 male terminals, and 46012 Mini-Fit Plus crimp terminals, providing flexibility for different wiring needs.
The housing is constructed from durable nylon material, which offers excellent resistance to impact and abrasion.
This connector housing features a straight orientation, designed for panel mount configurations.
It has 20 contacts arranged in 2 rows, facilitating reliable connections in electrical applications.
It is designed for panel mount installation, ensuring secure placement in various applications.
This model is part of the Mini-Fit series, which is known for its versatility in electrical connections.
Common applications include industrial control panels, medical equipment, and computer assemblies, where reliable connections are critical.
It includes a positive locking mechanism and an easy-to-operate thumb latch, which provide secure mating with its female counterpart.
The contacts are arranged with a pitch of 4.2 mm, which is standard for this type of connector.
The country of origin for this product is the United States.
