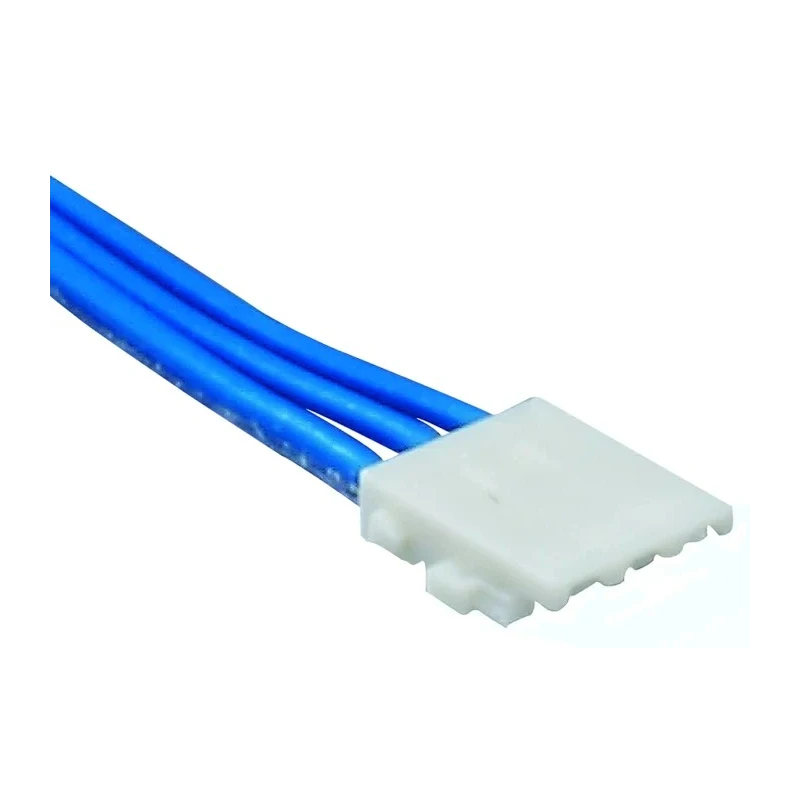

Hirose DF57 Female Connector Housing, 1.2 mm Pitch, 3 Way, 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 4.7mm |
| Model | DF57 |
| Width | 1.2mm |
| Mount Type | Surface Mount |
| Housing Material | Nylon |
| Series | DF57 |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| For Use With | DF57H Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Features a reinforced swing lock design with double locking for secure cable retention.
- Includes insert key guides preventing mismating and connector damage.
- Accepts wire sizes from 34 AWG to 26 AWG with crimp contacts sold separately.
- Low profile mating height of 1.4 mm ensures compact board design.
- Ideal for electronic devices including LED drivers, digital cameras, notebooks, and tablets.
- Housing material is durable nylon to provide insulation and mechanical strength.
- Connector gender is female with a straight orientation.
Product Description
Hirose DF57H-3S-1.2C female connector housing is engineered for reliable electronic connections in compact PCB assemblies with a 1.2 mm pitch and 3 contacts arranged in a single row.
This surface-mount connector housing features a unique double locking mechanism incorporating both positive and friction locks via a reinforced swing lock design. This prevents accidental disconnection and enhances cable retention during operation.
Insert key guides assist in precise mating alignment, reducing the risk of connector damage caused by improper engagement. The housing also provides a tactile click to confirm secure connection.
The low profile mating height of 1.4 mm supports miniaturized electronic devices where space is limited. Compatible with crimp contacts (sold separately), it accommodates wire gauges from 34 AWG to 26 AWG, making it versatile for different signal and power needs.
Constructed from robust nylon material, the housing ensures electrical insulation and mechanical durability. It measures 4.7 mm in length with a 1.2 mm pitch between contacts and total width of 1.2 mm, making it suitable for a broad range of electronics manufacturing applications.
Applications include connecting LED drivers to lighting fixtures, integration in digital still cameras, digital video cameras, notebook PCs, and tablet PCs, where reliable and space-efficient connectors are critical.
Reinforced swing lock design improves cable retention. Double locking mechanism prevents accidental disconnects. Insert key guides ensure proper mating alignment. Low profile 1.4 mm mating height supports compact device design.
Compatible with 34 AWG to 26 AWG wires for varied applications. Nylon housing offers insulation and durability. Meets requirements for LED drivers, cameras, and portable electronics. Explore more Connector Housing solutions and electronic components categories on EnvMart for industrial, laboratory, and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.2 mm.
This model features 3 contacts arranged in a single row.
It accepts wire sizes from 34 AWG to 26 AWG with crimp contacts sold separately.
The housing measures 4.7 mm in length and 1.2 mm in width.
It supports surface mount installation.
The housing is constructed from durable nylon, providing insulation and mechanical strength.
The orientation of this connector housing is straight.
It is ideal for applications in electronic devices including LED drivers, digital cameras, notebooks, and tablets.
Yes, it includes insert key guides that assist in precise mating alignment and reduce the risk of connector damage.
The mating height of this connector is 1.4 mm, supporting compact board designs.
It features a reinforced swing lock design with a double locking mechanism to enhance cable retention and prevent accidental disconnection.
Yes, it is designed for use with the DF57H connector.
