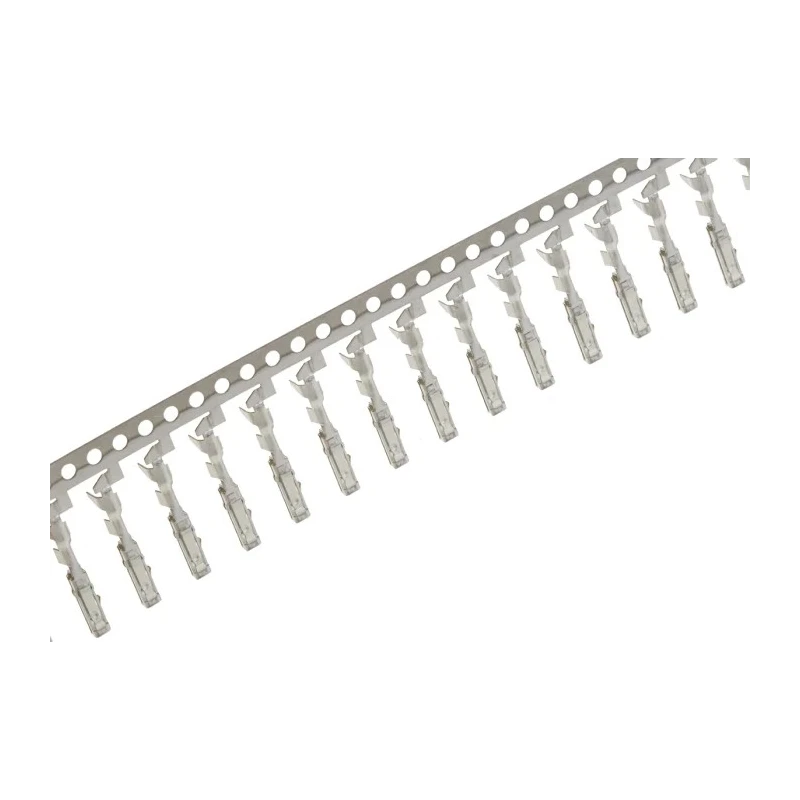

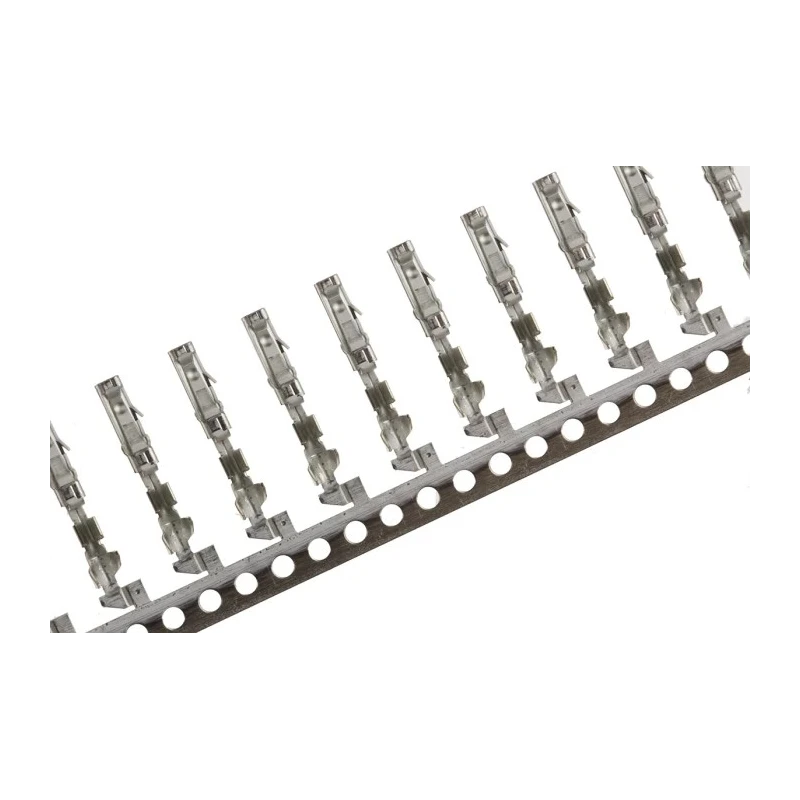

Amphenol Communications Solutions Dubox Series Female Crimp Terminal 2.5A 30-22 AWG 76347-403LF

Amphenol Communications Solutions 76347-403LF Dubox Series Female Crimp Terminal is a high-quality crimp contact designed for electronic applications requiring reliable and efficient wire termination. This female crimp terminal supports wire gauges from 30 AWG minimum to 22 AWG maximum, making it suitable for a broad range of wiring needs in board to board connector assemblies. It is rated for a current of up to 2.5 amperes, providing dependable signal or power transmission.

The contact material is phosphor bronze, known for its strength and resistance to fatigue, while the contact plating with tin ensures excellent electrical conductivity and protection against corrosion. This component's design allows it to mate with Dubox headers, accommodating short 5 mm pins which aid in reducing assembly size and enhancing connection stability.

Engineered to perform in demanding environments, the terminal operates safely within a temperature range from -40 degrees Celsius to 125 degrees Celsius, making it applicable for industrial, automotive, and communication system installations.

The termination method used is crimp, providing a secure mechanical and electrical connection for the wire. Although it does not carry specific RoHS or other standard approvals, its material and construction comply with industry expectations for reliable interconnection components.

Industry professionals utilize these crimp terminals extensively in telecommunications, electronic manufacturing, and industrial automation for creating secure and compact electrical connections.

Designed for use with board to board connectors. Constructed with phosphor bronze contact material for durability. Contact plating is tin to ensure reliable conductivity. Operates within temperature range of -40°C to 125°C.

Maximum contact resistance is 15 milliohms to ensure low loss. Termination type is crimp for secure wire attachment. Compatible with the Dubox series interconnection system. Capable of mating with short 5 mm pins for compact connector assemblies.

Compliance status: Not RoHS or other approvals specified. Explore more high-performance interconnection components and crimp terminals in the Electronics Components category at EnvMart.
