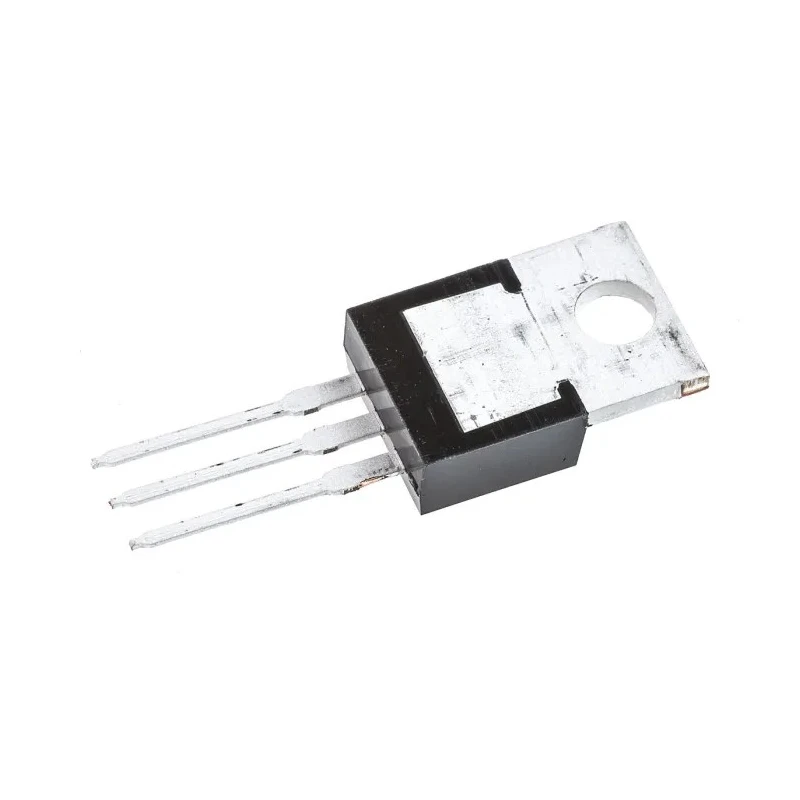

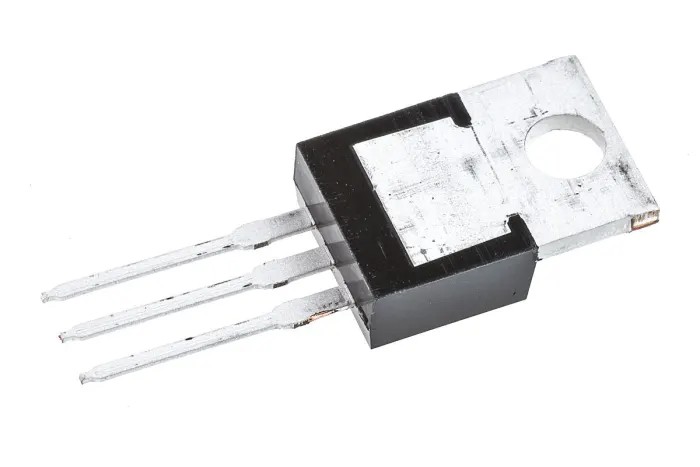

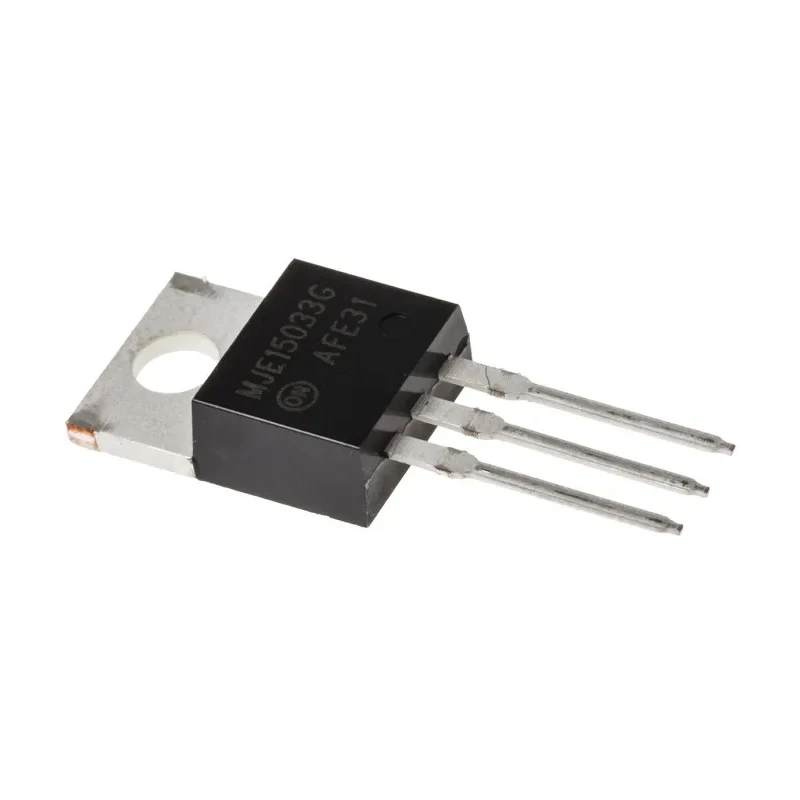

onsemi PNP Power Transistor 8 A, 250 V, 50 W, TO-220, 3-Pin MJE15033G

onsemi MJE15033G is a PNP bipolar power transistor designed for robust power control and amplification tasks in electronic circuits. It offers a maximum DC collector current of -8 A and a collector-emitter voltage of -250 V, enabling handling of significant power loads.

Housed in a TO-220 package with 3 pins, the transistor is suitable for through-hole mounting providing mechanical stability and ease of soldering on PCBs. The device supports a maximum power dissipation of 50 W, making it ideal for industrial, power supply, and motor control applications.

Its operating temperature range from -65°C minimum to 150°C maximum ensures performance stability in harsh environments. The PNP polarity transistor has a minimum current gain (hFE) of 10, making it effective in switching and amplification roles.

The MJE15033G has a maximum transition frequency of 30 MHz, adequate for moderate frequency signal amplification. It also supports high voltage conditions with a maximum collector-base voltage of 250 V and emitter-base voltage of 5 V.

Typical package dimensions are height 30.02 mm, length 10.53 mm, and width 4.83 mm. The component conforms to non-automotive standards and lacks specific approvals. Supports maximum power dissipation of 50 watts for handling high power applications.

Designed for through-hole mount with 3-pin configuration ensuring ease of installation. Operates over a wide temperature range from -65°C to 150°C for reliable performance. Offers a minimum DC current gain (hFE) of 10 for efficient transistor operation.

Maximum transition frequency is 30 MHz suitable for moderate frequency applications. PNP transistor polarity specifically suited for switching and amplification in PNP circuits. Package dimensions approximately 30.02 mm height, 10.53 mm length, and 4.83 mm width.

This transistor is widely used in industrial electronics, manufacturing equipment, power modules, HVAC control, motor drivers, and laboratory instrument designs. Explore the Electronics & Electricals category for more semiconductor components and power transistors with similar specifications at EnvMart.
