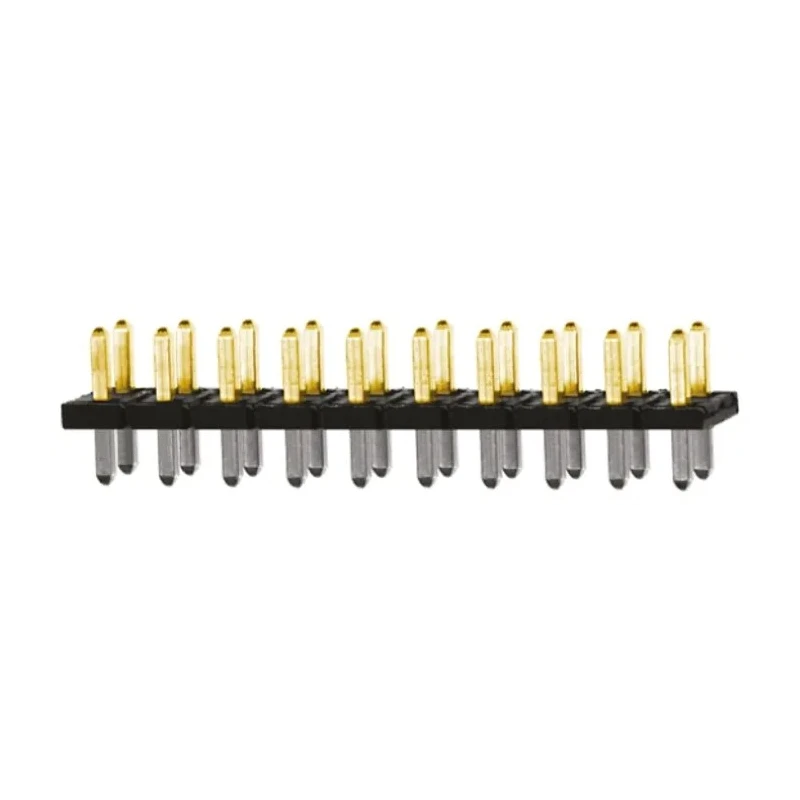

Samtec FTS Series Straight Surface Pin Header 20 Contacts 1.27 mm Pitch 2 Row Unshrouded FTS-110-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.75A |
| Model | FTS-110-01-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 3.05mm |
Key Features
- Constructed with phosphor bronze contacts plated with 0.25μm gold for reliable conductivity.
- Housing made from durable liquid crystal polymer offering stability and insulation.
- Operates between -55°C to 125°C for broad environmental tolerance.
- Supports a current rating of 1.75A at 80°C ensuring efficient electrical performance.
- Unshrouded, straight orientation provides easy access for connections and soldering.
- Tail pin length of 2.29 mm and mating pin length of 3.05 mm for compatibility with FFSD series IDC cable assemblies.
- Suitable for board-to-board and wire-to-board connector systems in advanced electronic assemblies.
Product Description
Samtec FTS-110-01-L-D is a Straight Surface Pin Header from the reliable FTS Series featuring 20 male contacts arranged in 2 rows with a 1.27 mm pitch. It is engineered for through-hole mounting on PCB assemblies and offers a compact body height of 1.27 mm, suitable for low profile applications.
Each contact is made of phosphor bronze and plated with 0.25µm gold plating on contact surfaces and tin plating on tails to ensure enhanced durability and reliable signal conduction within demanding electronic environments.
The housing material is a liquid crystal polymer that provides excellent mechanical strength and thermal resistance, enabling operation from -55°C to 125°C. Rated at 1.75 A current at 80°C, this pin header supports reliable power delivery in complex electronic systems.
Its unshrouded design and straight orientation enable straightforward soldering and connection, compatible with FFSD Series IDC cable assemblies via its 3.05 mm mating pin length. The 2.29 mm tail pins are optimized for surface mounting application stability.
Widely used in industrial, telecommunications, computing, and electronics manufacturing sectors, this Samtec FTS Series pin header offers enhanced board-to-board and wire-to-board connectivity solutions.
Phosphor bronze contacts with gold plating ensure excellent conductivity and corrosion resistance. Liquid crystal polymer housing guarantees stability and high temperature endurance. Unshrouded, straight orientation ideal for easy access and soldering.
Current rating supports up to 1.75 A at 80 °C suitable for various electronic applications. Operates reliably across a temperature range from -55 °C to 125 °C. Compatible with FFSD Series IDC cables for flexible assembly options.
Explore more PCB Headers and connectors suitable for your precise electronics and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a current rating of 1.75A at 80°C, ensuring efficient electrical performance in various applications.
It operates reliably across a temperature range from -55°C to 125°C, making it suitable for a variety of environments.
The contacts are made of phosphor bronze with a gold plating of 0.25µm, while the housing is constructed from liquid crystal polymer for stability and insulation.
This model features 20 male contacts arranged in 2 rows with a pitch of 1.27 mm.
It is designed for surface mounting on PCB assemblies, providing stability in electronic applications.
Yes, it is compatible with FFSD Series IDC cable assemblies, thanks to its mating pin length of 3.05 mm.
The tail pin length is 2.29 mm, optimized for surface mounting applications.
The FTS-110-01-L-D has a straight orientation, which allows for easy access and soldering during installation.
It supports both board-to-board and wire-to-board connector systems, making it versatile for advanced electronic assemblies.
This model has a compact body height of 1.27 mm, suitable for low profile applications.
It uses solder termination, ensuring a secure connection in electronic assemblies.
The country of origin for this product is India.
