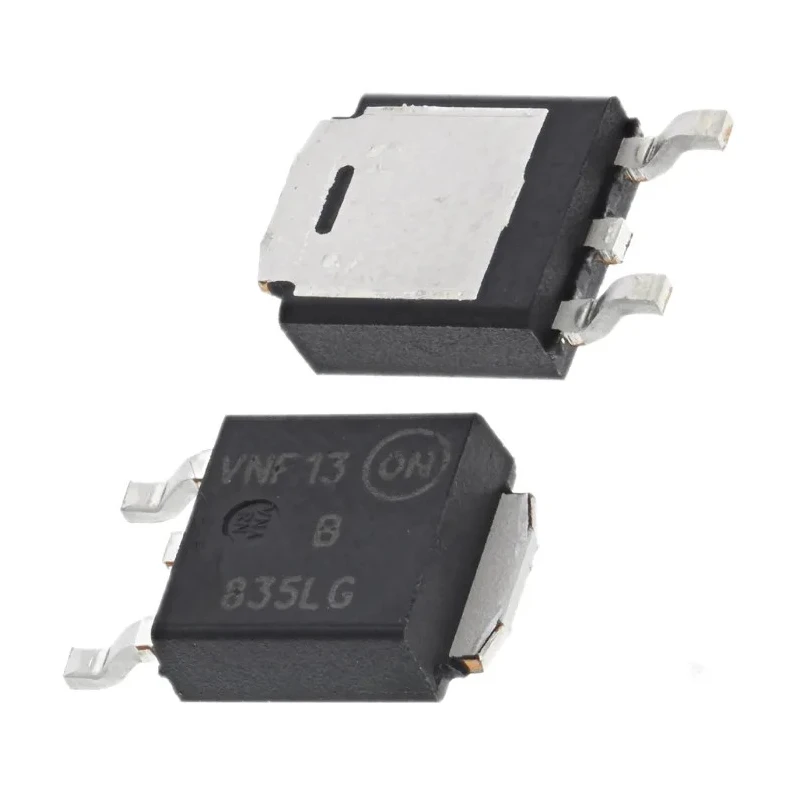

onsemi 35 V 8 A Diode Switching 3-Pin DPAK MBRD835LT4G

onsemi MBRD835LT4G diode switching 3-pin DPAK is a Schottky power rectifier optimized for compact, lightweight, and efficient surface mount semiconductor applications. It leverages the Schottky barrier principle to deliver an optimal balance of low forward voltage drop and minimal reverse current, improving energy efficiency in power conversion and switching circuits.

This surface mount diode comes in a TO-252 package featuring a 3-pin configuration tailored for automated PCB assembly. It supports a maximum continuous forward current of 8 A and withstands a peak reverse repetitive voltage of 35 V, suitable for low voltage and high-frequency rectification tasks. The device also offers a peak non-repetitive forward surge current of 75 A, enhancing its robustness under transient load conditions.

Operating reliably within a temperature range of -65°C to 150°C, the MBRD835LT4G supports a broad range of industrial and automotive environments. Compliance with the AEC-Q101 automotive standard guarantees its suitability for stringent automotive applications requiring reliability and durability. Its compact dimensions of 6.73 mm length, 6.22 mm width, and 2.38 mm height, combined with an ultra-lightweight 11.7 mg package, make it ideal for space and weight-sensitive electronics design.

The diode’s maximum forward voltage of 0.51 V contributes to efficient power management with minimal losses. Its epoxy moulded case and stress protection features ensure mechanical stability and protection against environmental stresses, making it reliable for industrial, automotive, telecommunications, and consumer electronics applications.

Employs Schottky barrier technology for low forward voltage drop and reduced reverse current. Surface mount TO-252 package designed for compact and automated board assembly. 3-pin configuration with switching diode rectifier type.

Peak non-repetitive forward surge current rating of 75 A enhances load tolerance. Wide operating temperature range from -65°C to 150°C for reliable performance. Automotive standard AEC-Q101 qualified for stringent automotive applications.

Epoxy moulded case with stress protection for durability. Lightweight 11.7 mg package ideal for space-sensitive designs.

This onsemi diode is a suitable component for industrial and automotive electronic systems, power supply circuits, freewheeling diodes, and polarity protection in surface mount device assemblies.
