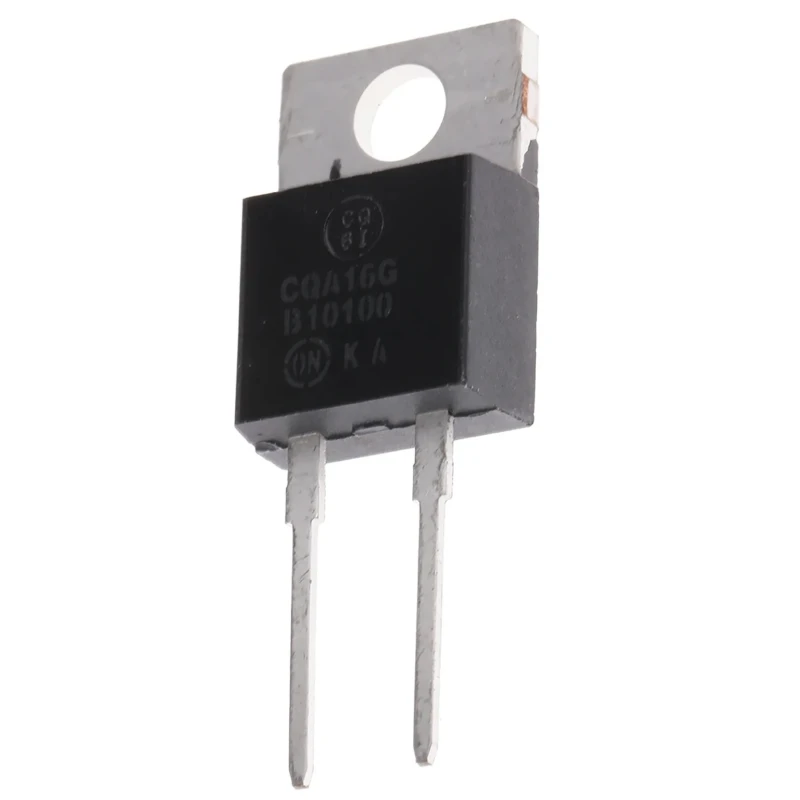

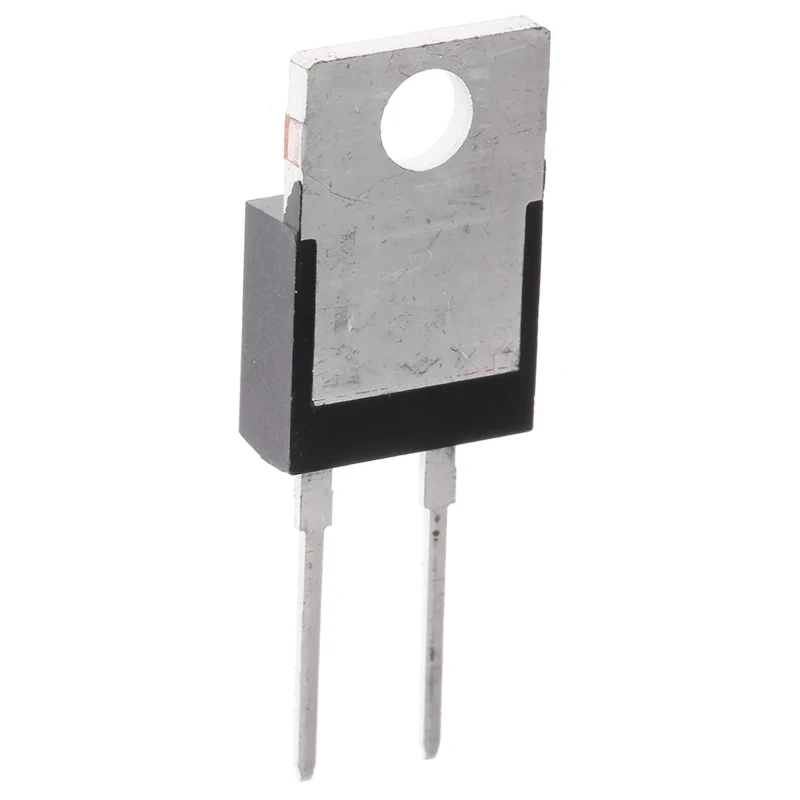

onsemi 100 V 10 A Schottky Diode Through Hole TO-220AC Package MBR10100G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MBR10100G |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | MBR10100 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.95V |
Key Features
- High current capacity with maximum continuous forward current of 10 A.
- Peak reverse repetitive voltage is rated at 100 V.
- Low forward voltage drop of 0.95 V for efficient conduction.
- Operates reliably between -65°C to 175°C temperature range.
- Features a 2-pin single diode configuration in a TO-220AC package.
- Peak non-repetitive forward surge current of 150 A.
- Compact dimensions with length 10.29 mm, width 4.82 mm, and height 9.27 mm.
- Compliant with automotive standard AEC-Q101 for harsh environment use.
Product Description
onsemi MBR10100G is a high-performance Schottky diode designed for industrial and automotive use. It comes in a through-hole TO-220AC package, ensuring easy mounting and integration into power circuits. With a maximum continuous forward current of 10 A and a reverse voltage rating of 100 V, this diode provides efficient rectification and low voltage drop performance at 0.95 V. The diode operates reliably over a wide temperature range from -65°C to 175°C, suitable for demanding environments.
The compact design with precise dimensions (10.29 mm length, 4.82 mm width, 9.27 mm height) makes it ideal for space-constrained applications. The device features a 2-pin single diode configuration with a peak non-repetitive forward surge current capacity of 150 A, allowing it to handle high transient loads effectively.
MBR10100G complies with automotive standard AEC-Q101, ensuring robustness and reliability in vehicle electronics and other harsh industrial applications. Its Schottky barrier construction enhances switching performance and efficiency, reducing power loss and thermal buildup.
This diode is perfect for use in power supplies, DC/DC converters, freewheeling diode circuits, and other electronic systems requiring efficient, high-current rectification. The TO-220AC package enables easy soldering and replacement in through-hole mounted assemblies.
High current capacity with maximum continuous forward current of 10 A. Peak reverse repetitive voltage rated at 100 V ensuring blocking capability. Low forward voltage drop enhances energy efficiency. Wide operating temperature range from -65°C to 175°C.
Compact TO-220AC package with 2-pin configuration for through-hole mounting. Automotive standard AEC-Q101 qualified for harsh environment suitability. Peak non-repetitive surge current up to 150 A for transient load handling.
Reliable semiconductor choice for industrial and automotive power circuits. Suitable for switching power supplies and rectifier bridges. Efficient thermal and electrical performance for extended durability. Explore our extensive range of Schottky diodes and semiconductor components on EnvMart for advanced industrial and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBR10100G is 10 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop for this Schottky diode is 0.95 V.
It operates reliably between -65°C to 175°C.
This diode is housed in a TO-220AC package, suitable for through-hole mounting.
The peak non-repetitive forward surge current capacity is 150 A.
This model features a 2-pin single diode configuration.
Yes, it complies with automotive standard AEC-Q101, ensuring suitability for harsh environments.
The dimensions are 10.29 mm in length, 4.82 mm in width, and 9.27 mm in height.
This model is a Schottky rectifier, designed for efficient rectification.
It is suitable for use in power supplies, DC/DC converters, and freewheeling diode circuits.
The peak reverse current is rated at 100 μA.
