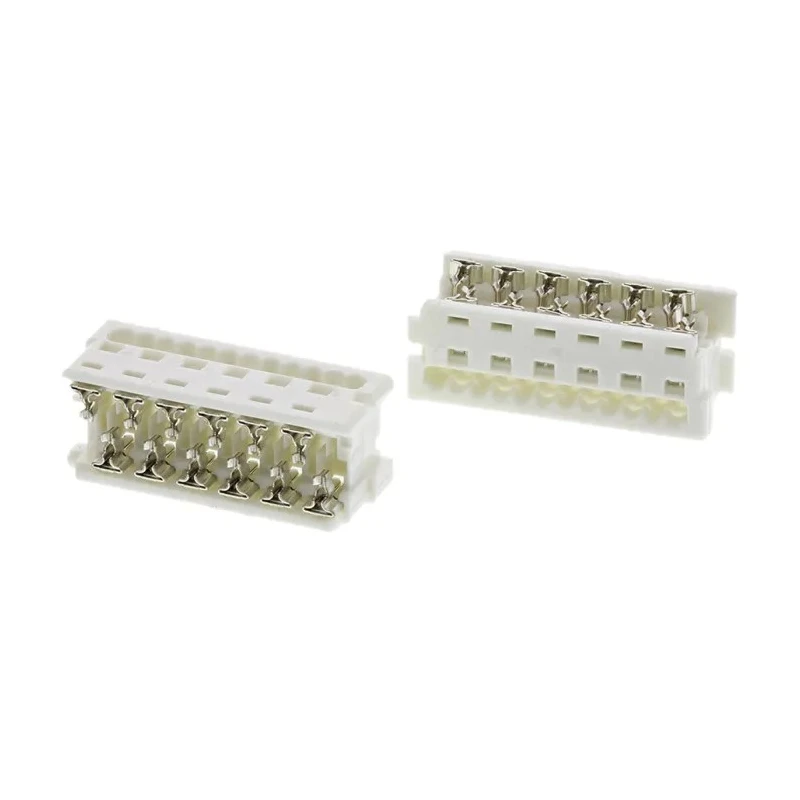

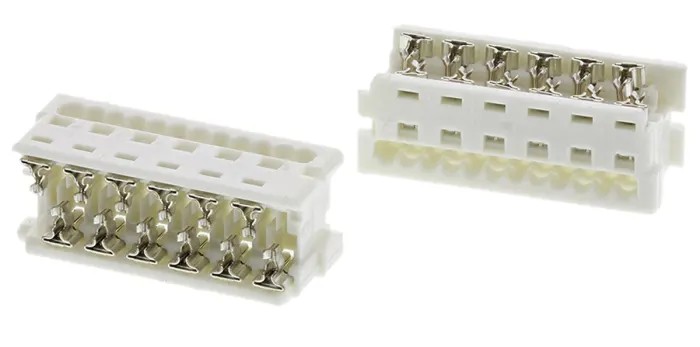

Molex 12-Way IDC Connector Female for Cable, 2 Row 90327-0312

Molex 90327-0312 12-Way IDC Connector Female for Cable, 2 Row is a precision electronic connector designed for cable-to-board connections in industrial and consumer electronics. Operating at 250V AC with a 1.2A current rating, it supports reliable signal and power transmission in compact spaces.

The connector features 12 female contacts arranged in 2 rows with a 1.27mm pitch, making it suitable for high-density wiring applications. Its right angle orientation allows effective cable management and routing in tight assemblies. Termination is through insulated displacement contact (IDC) technology, providing secure and quick assembly without soldering.

Contacts are made from phosphor bronze with tin over nickel plating to ensure low resistance and high durability. The housing is fabricated from polyethylene terephthalate, offering excellent mechanical strength and thermal stability, rated for operating temperatures from -40°C to 105°C. This design is unshrouded, facilitating precise positioning with 4 point contact reliability.

The Picoflex series to which this connector belongs is well-regarded for its space-saving form factor, reducing connector height to only 6.4mm mated, and enhancing resistance to vibration and shock. It finds applications in automotive, industrial, and consumer electronics sectors where compact and robust interconnections are essential.

Although this particular model does not have specific standards or approvals listed, Molex connectors are widely used in demanding environments. Suitable for use in industrial automation, electronic manufacturing, HVAC control systems, and telecommunications.

Features 12 contact points arranged in 2 rows. Current rating of 1.2A suitable for moderate power applications. Pitch of 1.27mm ensures compact connection spacing. Female connector with IDC termination for cable mounting.

Right angle orientation aids in cable routing flexibility. Contact plating is tin over nickel for corrosion resistance. Housing made of durable polyethylene terephthalate material. Operates in temperatures from -40°C to 105°C.

Unshrouded design for precise positioning with 4 point contact reliability. Complies with Picoflex series for space-saving and vibration resistance. Explore more products in the IDC Connector category to find complementary electronic components and accessories for your projects.
