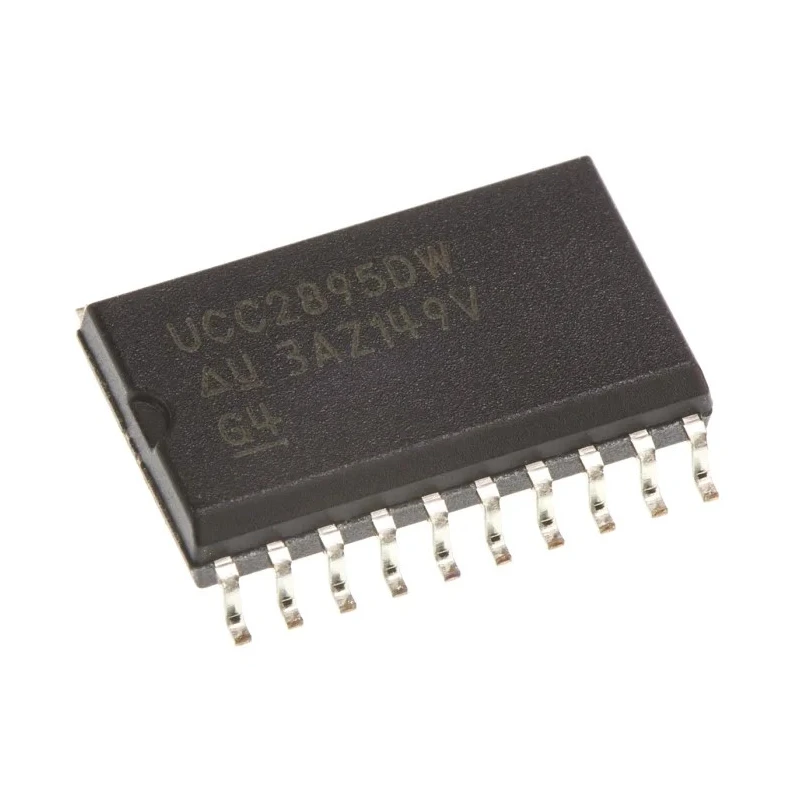

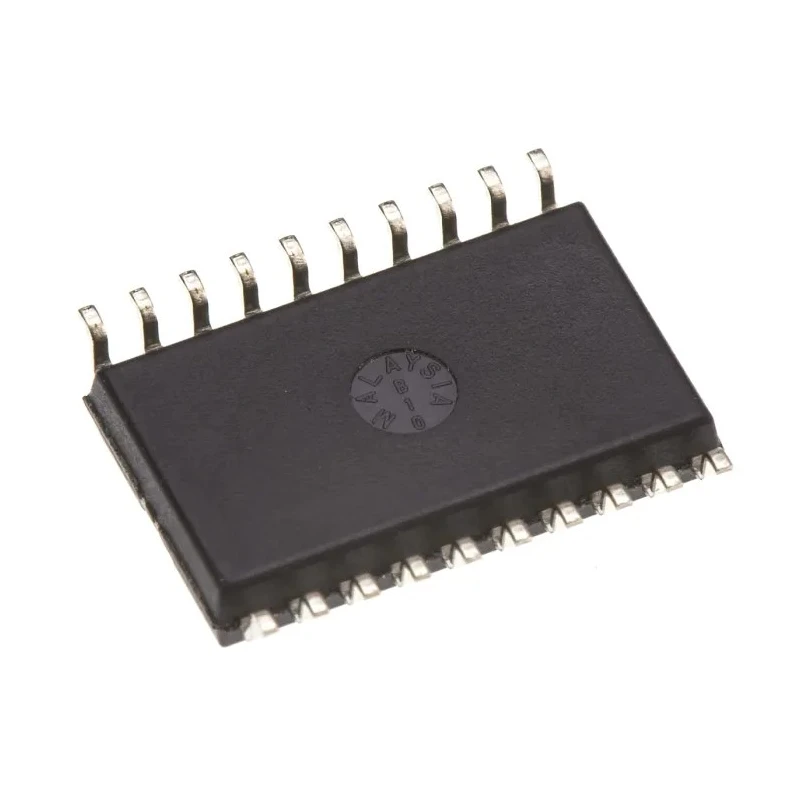

Texas Instruments 20-Pin SOIC 4-Channel PWM Controller 1 MHz 16.5V UCC2895DW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | UCC2895DW |
| Width | 7.52mm |
| Mount Type | Surface |
| Maximum Duty Cycle | 100% |
| Series | UCC |
| Output Current | 100mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 4 |
| Output Voltage | 5.2V |
| Maximum Switching Frequency | 1MHz |
| Pin Count | 20 |
| Maximum Supply Voltage | 16.5V |
| Minimum Supply Voltage | 10V |
| Supply Current | 4mA |
| Start-up Supply Current | 150μA |
| PWM Controller Type | Combination |
Key Features
- Operates at a maximum switching frequency of 1 MHz for efficient power control.
- Supports a wide supply voltage range from 10 V minimum to 16.5 V maximum.
- Features a start-up supply current of 150 μA and a supply current of 4 mA.
- Provides 5.2 V output voltage with a maximum output current of 100 mA.
- Equipped with 4 output channels to manage multiple power loads.
- Surface mount type with a SOIC package and 20 pins for easy PCB integration.
- Operational temperature range from -40°C to 85°C suitable for industrial environments.
- Designed as a combination PWM controller type with a maximum duty cycle of 100%.
Product Description
Texas Instruments UCC2895DW is a high-performance 20-pin SOIC surface-mount package PWM controller tailored for 4-channel power management applications. It offers a maximum switching frequency of 1 MHz, allowing for efficient and precise power regulation in industrial, electronic, and embedded systems.
This PWM controller operates with a supply voltage ranging from 10 V to a maximum of 16.5 V, enabling compatibility with a broad spectrum of power supply designs. The device's low start-up supply current of 150 μA and typical supply current of 4 mA contribute to energy-efficient system performance.
The controller outputs a regulated 5.2 V voltage and supports an output current of up to 100 mA across its four channels, permitting effective drive capabilities for multiple loads or subsystems. Its surface mount SOIC package with 20 pins simplifies integration on printed circuit boards, making it suitable for compact and high-density electronic assemblies.
Engineered for robust industrial usage, the UCC2895DW functions reliably in operating temperatures from -40°C to 85°C. Its compact size with dimensions 12.8 mm length, 7.52 mm width, and 2.35 mm height facilitates use in designs requiring space efficiency.
This combination PWM controller supports a maximum duty cycle of 100%, allowing full modulation capability. It is ideal for power management in automation controllers, industrial machinery, and embedded electronic systems requiring controlled power distribution and switching.
Operates at a maximum switching frequency of 1 MHz for efficient power control. Wide operating voltage from 10 V to 16.5 V ensures flexibility in application. Low start-up and supply currents reduce system power consumption.
Delivers 5.2 V output voltage and 100 mA output current across four channels. Compact SOIC package suitable for surface mount PCB assembly. Operational range of -40°C to 85°C supports harsh environments. Efficient combination PWM controller with 100% duty cycle capability.
Ideal for industrial, laboratory, and embedded system power management use cases. Explore EnvMart’s wide range of semiconductor Power Management ICs for enhanced control and efficiency in your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UCC2895DW operates at a maximum switching frequency of 1 MHz, allowing for efficient power control.
This model supports a supply voltage range from 10 V minimum to a maximum of 16.5 V, providing flexibility for various applications.
It can deliver an output current of up to 100 mA across its four channels, enabling effective power management for multiple loads.
The UCC2895DW provides a regulated output voltage of 5.2 V.
This unit has dimensions of 12.8 mm in length, 7.52 mm in width, and 2.35 mm in height, making it suitable for compact designs.
The operational temperature range for the UCC2895DW is from -40°C to 85°C, suitable for industrial environments.
This PWM controller is equipped with 4 output channels, allowing it to manage multiple power loads effectively.
It comes in a 20-pin SOIC surface mount package, which facilitates easy integration onto printed circuit boards.
The start-up supply current for the UCC2895DW is 150 μA, contributing to energy-efficient performance.
The UCC2895DW supports a maximum duty cycle of 100%, allowing for full modulation capability.
The typical supply current for this PWM controller is 4 mA, which helps in reducing overall power consumption.
The UCC2895DW is manufactured in India.
