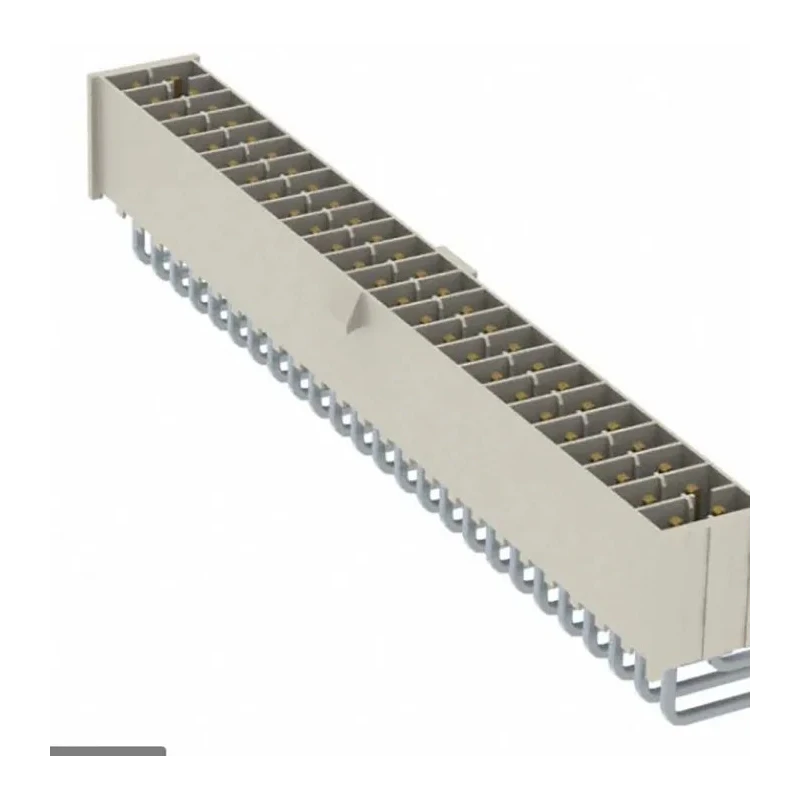

Samtec Right Angle Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded IPL1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 675V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 3.8A |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 50 individually shrouded male contacts for high-density PCB applications.
- Configured on a 2.54 mm pitch in a 2-row arrangement for compact board layouts.
- Gold-plated phosphor bronze contacts provide high conductivity and durability.
- Liquid crystal polymer housing ensures excellent mechanical and thermal stability.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Rated for up to 3.8 A current and 675 V voltage.
- Right angle orientation ideal for vertical stacking and edge connections.
- Wire-to-board system with secure solder termination and through hole mounting.
Product Description
The Samtec IPL1-125-01-L-D-RA-K Right Angle Through Hole PCB Header is a high-performance connector solution tailored for demanding wire-to-board applications in electronic systems. This header is part of the Samtec IPL1 series, renowned for robust design and precise manufacturing. Its 2-row configuration with 50 individually shrouded male contacts maximizes board density for compact electronics.
Each contact is arranged at a 2.54 mm pitch, allowing efficient integration into standard PCB layouts, particularly in industrial, instrumentation, automation, and contracting applications. The right angle orientation provides flexible options for edge connections and vertical stacking where space constraints are critical.
The contacts are fabricated from phosphor bronze and gold-plated, ensuring superior conductivity, low contact resistance, and long-lasting durability even under frequent cycling or harsh environments. The housing material, liquid crystal polymer, offers excellent resistance to high temperatures, chemical exposure, and mechanical stress, making this header suitable for operation from -55°C to 125°C.
The IPL1-125-01-L-D-RA-K supports a rated current of 3.8 A and a maximum voltage of 675 V, compliant with stringent PCB and connector standards. Its wire-to-board system is designed for secure solder termination, delivering reliable connectivity and signal integrity. The through hole mount ensures strong mechanical retention on the PCB, supporting automated assembly processes.
Additional features include shrouding for each contact which enhances mating accuracy and protects from accidental contact or misalignment. This solution is ideal for sectors such as industrial automation, control panels, test equipment, laboratory instruments, and electronic manufacturing where high-density signaling and robust interconnection are required.
Choose Samtec IPL1-125-01-L-D-RA-K for high-density, high-reliability PCB interfacing in professional electronic environments. Explore more PCB Headers and wire housings in the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header are configured on a 2.54 mm pitch, which allows for efficient integration into standard PCB layouts.
This model has a maximum voltage rating of 675 V, making it suitable for high-voltage applications.
The PCB header is rated for a maximum current of 3.8 A, ensuring reliable performance in various applications.
The contacts are made from phosphor bronze and are gold-plated for enhanced conductivity, while the housing is constructed from liquid crystal polymer for thermal stability.
The IPL1-125-01-L-D-RA-K features 50 individually shrouded male contacts, designed for high-density PCB applications.
It operates reliably in temperatures ranging from -55°C to 125°C, accommodating a wide variety of environmental conditions.
This model utilizes a solder termination type, ensuring secure connections in wire-to-board applications.
The header is designed with a right angle orientation, which is ideal for vertical stacking and edge connections.
This model features a through hole mounting type, providing strong mechanical retention on the PCB.
It is suitable for applications in industrial automation, control panels, test equipment, laboratory instruments, and electronic manufacturing.
This PCB header belongs to the Samtec IPL1 series, known for its robust design and precise manufacturing.
The shrouding enhances mating accuracy and protects the contacts from accidental contact or misalignment during use.
