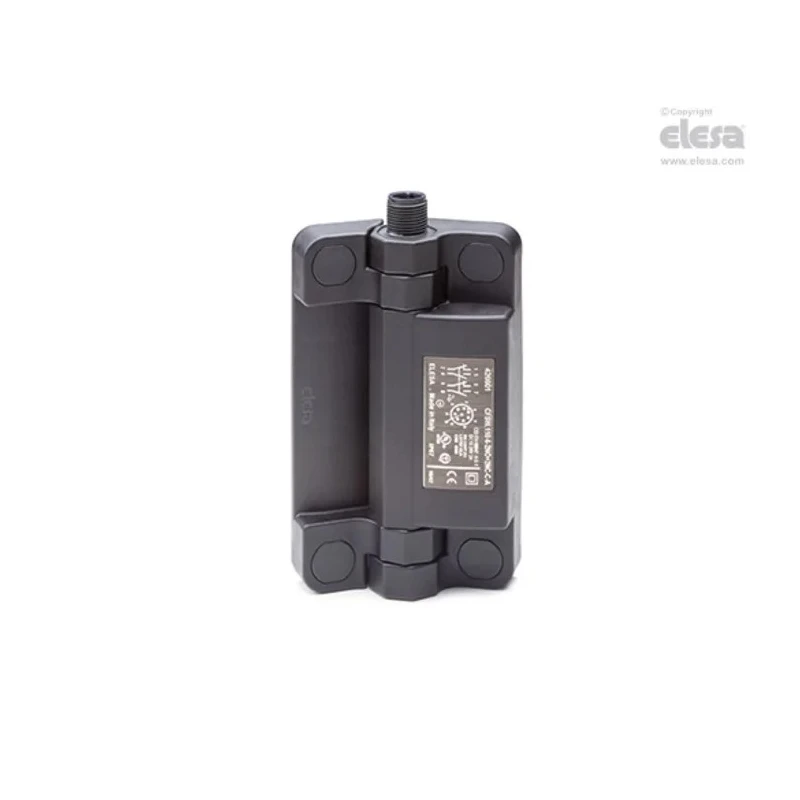

Elesa CFSW Safety Hinge Switch Super Technopolymer IP67, -20°C to 80°C Operating Temperature 426601

Elesa 426601 CFSW Safety Hinge Switch features a super technopolymer housing that provides IP67 protection, making it resistant to environmental hazards and mechanical shocks. It operates reliably within a temperature range from -20°C up to 80°C, suitable for diverse industrial environments.

This hinge switch incorporates a built-in safety multiple switch patented by Elesa. Its positive opening mechanism complies with IEC EN 60947-5-1 annex K, which ensures the electrical contacts separate through an actuator action with non-elastic elements, increasing safety and operational reliability. The silver-alloy paste contacts offer a self-cleaning function, enhancing long-term performance.

The double insulation provided by the technopolymer housing eliminates the need for grounding connection, protecting the internal circuits from accidental penetration of tools and atmospheric contaminants. The hinge switch has a mechanical life expectancy of one million cycles, underlining its durability for demanding applications.

Dimensionally compact with a length of 110mm, height of 42mm, and width of 6mm, this device suits a variety of mounting and installation scenarios. It meets a wide range of industry standards including EN60529, UL, IEC EN 60947-5-1, EN 954-1, IMQ, EN ISO 13849-1, IEC 62061 and is RoHS compliant.

Typical industrial applications include use on safety doors, machine protections, and production equipment to disrupt power supply instantly in case of accidental door openings, thereby protecting operators from potential hazards. The hinge is designed for easy assembly and integration into safety interlock circuits in electrical automation and control systems.

Built-in safety multiple switch enhances machinery operator protection. Robust IP67 technopolymer housing ensures high environmental resistance. Long mechanical life supports extensive operational durability. Compliance with international safety and quality standards.

Compact size facilitates installation flexibility. Self-cleaning silver-alloy contacts for reliable electrical performance. Wide temperature operating range suitable for diverse industrial settings. Double insulation design removes grounding requirements.
