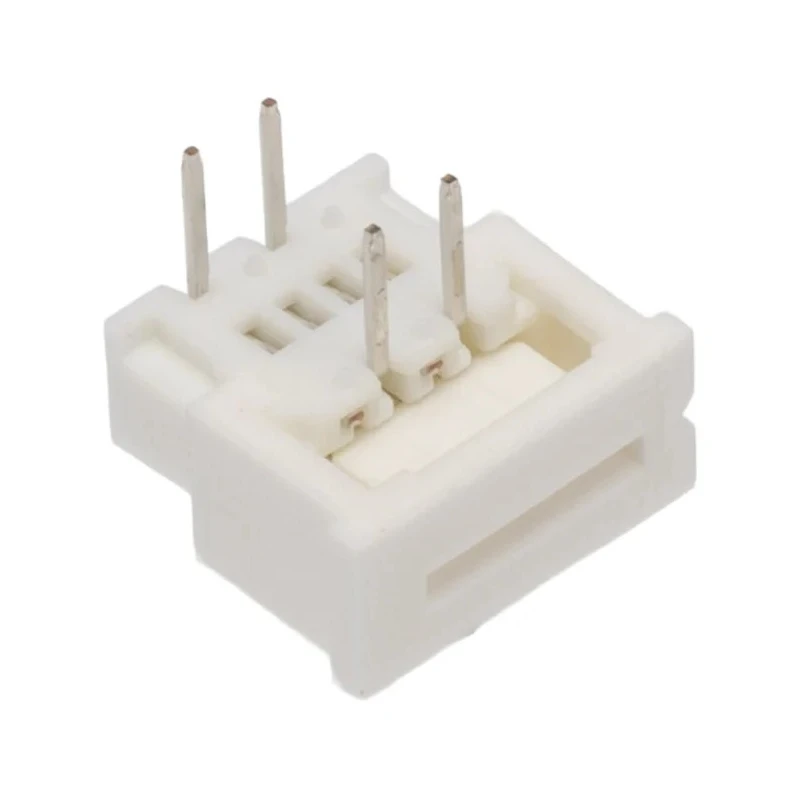

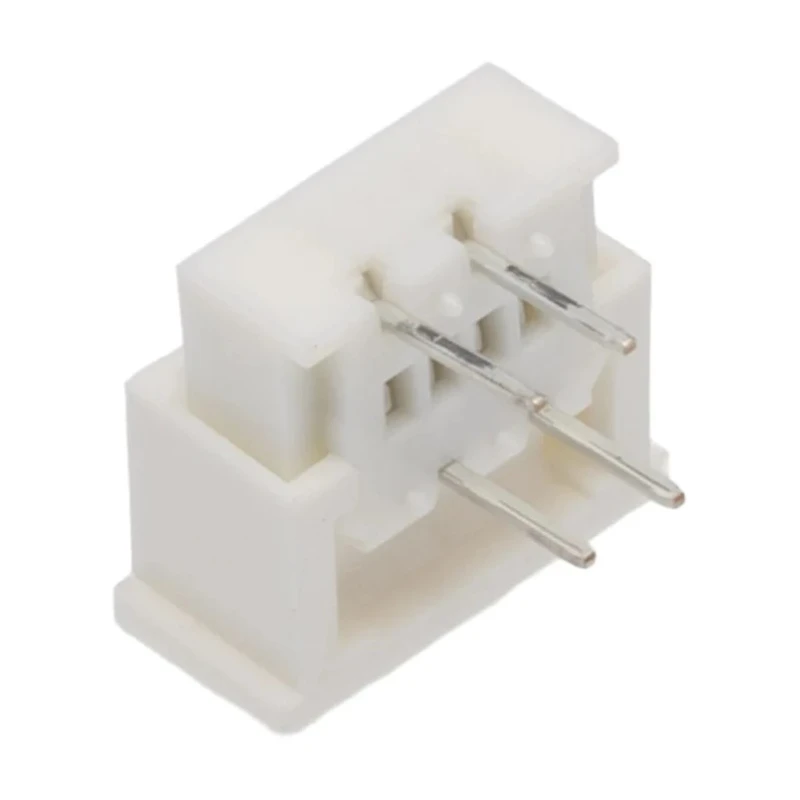

Molex 1.25 mm Pitch 4 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2044
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Features a zero insertion force (ZIF) mechanism for easy FPC insertion and minimal wear.
- Constructed with phosphor bronze contacts for reliable conductivity and tin bismuth over nickel plating for corrosion resistance.
- Right angle orientation with female connector gender and top contact position suits tight packaging layouts.
- Rated for 200V voltage and 1 amp current maximum operational limits.
- Through hole mount type ensures secure PCB connection compatible with wave soldering.
- Housing made of polybutylene terephthalate (PBT) for durable insulation and mechanical strength.
- Operating temperature range from -20°C to 80°C supports varied environmental conditions.
- Includes a locking mechanism and staggered solder tails for secure installation and mechanical stability.
Product Description
Molex 39-53-2044 is a 4 Way Right Angle Female FPC Connector with 1.25 mm pitch designed for easy-on FFC/FPC applications. Exhibiting a zero insertion force (ZIF) slide actuator, the connector offers repeatable and secure connections with minimal wear, ideal for electronics automotive and tight packaging environments.
The connector features phosphor bronze contacts plated with tin bismuth over nickel, ensuring robust electrical reliability and corrosion resistance. It mounts through hole on PCBs using a solder termination process, compatible with wave soldering manufacturing techniques.
The design includes a right angle orientation with contacts positioned on the top, female gender connector allowing efficient use of PCB real estate. Its polybutylene terephthalate housing provides insulating strength along with mechanical durability, enabling operation from -20°C to 80°C.
Rated for 200 volts and 1 amp current, this connector is suitable for medium power signal applications. The built-in locking mechanism combined with staggered solder tails enhances mechanical retention and connection stability, important for automotive and industrial electronic assemblies.
Zero Insertion Force (ZIF) design reduces FPC damage and increases cycling durability. Phosphor bronze contact material with tin bismuth over nickel plating ensures excellent conductivity and corrosion resistance. Right angle, female connector with top contact position saves PCB space in compact designs.
Polybutylene terephthalate housing ensures mechanical strength and electrical insulation. Operates reliably between -20°C and 80°C, suitable for harsh environments. Through hole mounting with solder termination supports compatible manufacturing processes.
Includes locking mechanism and staggered solder tails for secure and stable installation.
This FPC connector is widely used in industrial, automotive, communications, and electronic manufacturing applications where compact and reliable FPC connections are necessary. The 5597 series from Molex integrates quality materials and innovative design to meet rigorous performance standards.
Explore more FPC Connectors and related electronic component solutions in the Electronics Components category at EnvMart for your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 200V.
It can handle a maximum current of 1A.
It uses a through hole mounting type, which ensures a secure PCB connection compatible with wave soldering.
The pitch of this connector is 1.25 mm.
The housing is made of polybutylene terephthalate (PBT), and the contacts are made of phosphor bronze with tin bismuth over nickel plating.
It operates reliably within a temperature range of -20°C to 80°C.
Yes, it includes a locking mechanism to enhance connection stability.
This connector has 4 contacts.
It features a right angle orientation with the contacts positioned on the top.
It uses a solder termination type, suitable for through hole mounting.
It is suitable for applications in industrial, automotive, communications, and electronic manufacturing where compact and reliable FPC connections are necessary.
This model belongs to the 5597 series from Molex.
