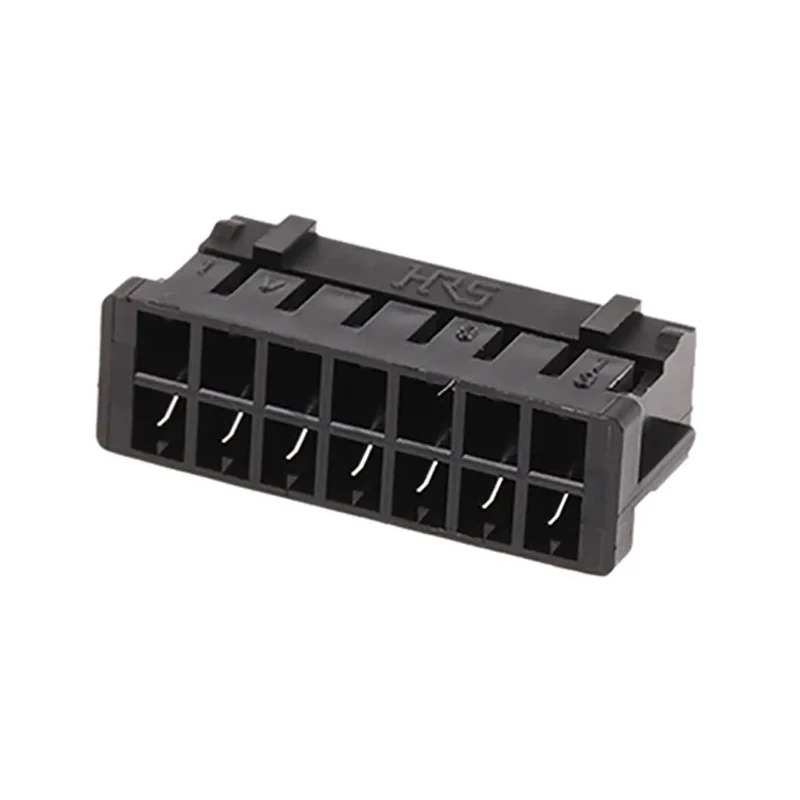

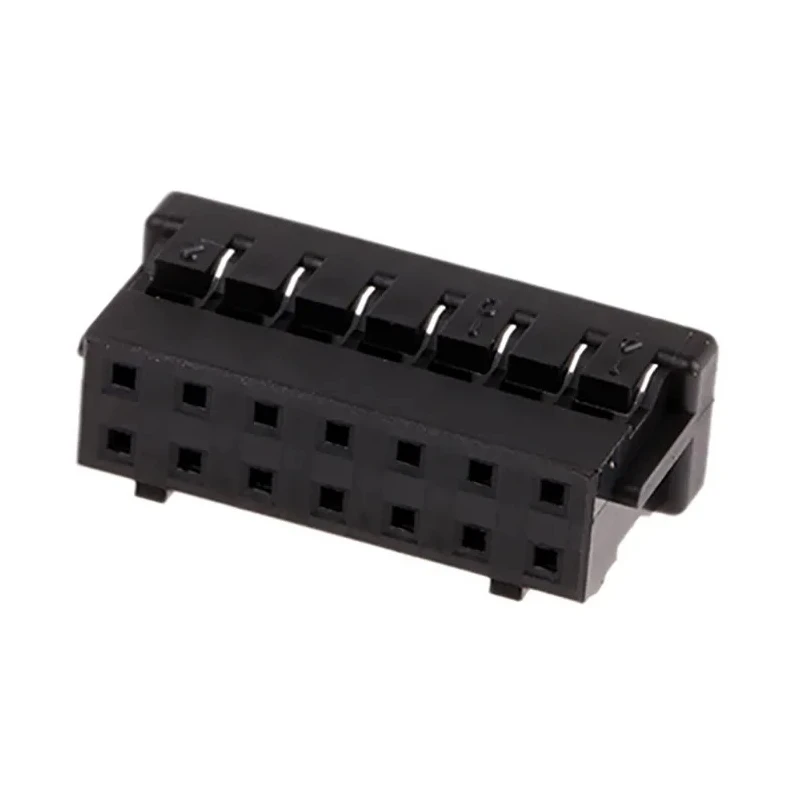

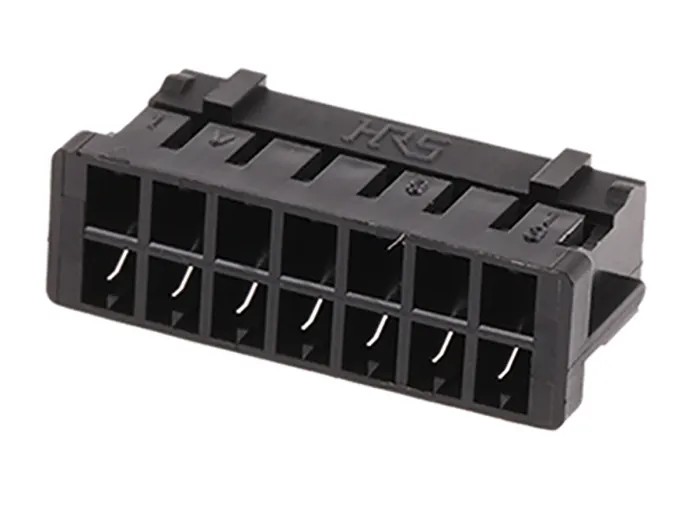

Hirose DF11 Series Female Connector Housing 2 mm Pitch 14 Way 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 16mm |
| Model | DF11 |
| Width | 5mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series |
| Number of Contacts | 14 |
| Connector Gender | Female |
Key Features
- Compact double row design with 2 mm pitch for space-saving applications.
- Constructed from durable polyamide housing material.
- Includes locking mechanism to ensure secure mating connection.
- Guide ribs prevent mismating and twisting during assembly.
- Compatible with DF11 series connectors and crimp contacts sold separately.
- Ideal for portable devices, digital cameras, LCD displays, car navigation, and measurement devices.
- Connector length of 16 mm and width of 5 mm.
- Connector gender female with cable mount type.
Product Description
Hirose DF11-14DS-2C is a female connector housing from the DF11 series featuring a 2 mm pitch and a compact 14-way double row design. Manufactured with a polyamide housing, this connector offers a space-saving depth of 5 mm to accommodate double rows of contacts within the footprint of a single row housing. It is designed for cable mounting with a straight orientation to ensure seamless integration in various electronic assemblies.
This connector housing incorporates guide ribs to prevent incorrect insertion and twisting, enhancing reliability during mating. Additionally, the locking mechanism firmly secures the connector to its mating header, preventing accidental disconnection. It is intended to mate with compatible DF11 series 2.00 mm PCB header connectors. Crimp contacts needed for the housing are available separately under stock number 111-3621.
The DF11-14DS-2C housing is widely used in industrial and commercial applications including portable electronics, digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and precision measurement devices. Its compact size and reliable connection properties make it ideal for dense electronic designs requiring multiple signal lines with minimal space consumption.
Compact double row design with 2 mm pitch for space saving. Durable polyamide housing material for long-lasting use. Guide ribs ensure correct mating and prevent twisting. Locking mechanism provides secure connection to mating header.
Compatible with DF11 series connectors and crimp contacts (purchased separately). Designed for cable mount and straight orientation applications. Suitable for portable devices, digital video and photography equipment, automotive navigation, and industrial measurement tools.
Manufactured in Japan adhering to quality standards. Explore high-quality Connector Housings like the Hirose DF11-14DS-2C for your electronic assembly needs in the EnvMart Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2 mm, designed for compact double row applications.
This connector housing supports 14 contacts, arranged in a double row configuration.
The Hirose DF11-14DS-2C has a length of 16 mm and a width of 5 mm.
The housing is constructed from durable polyamide material, suitable for various applications.
It is designed for cable mounting, allowing for easy integration into electronic assemblies.
This model features a straight orientation for seamless integration in electronic devices.
It is compatible with DF11 series connectors and requires crimp contacts that are sold separately.
This connector housing is ideal for portable devices, digital cameras, LCD displays, and measurement devices.
Yes, it includes a locking mechanism to ensure a secure mating connection with its header.
The housing incorporates guide ribs that prevent mismating and twisting during assembly.
This connector housing is manufactured in Japan, adhering to quality standards.
The connector housing is female, designed for use with compatible male connectors.
