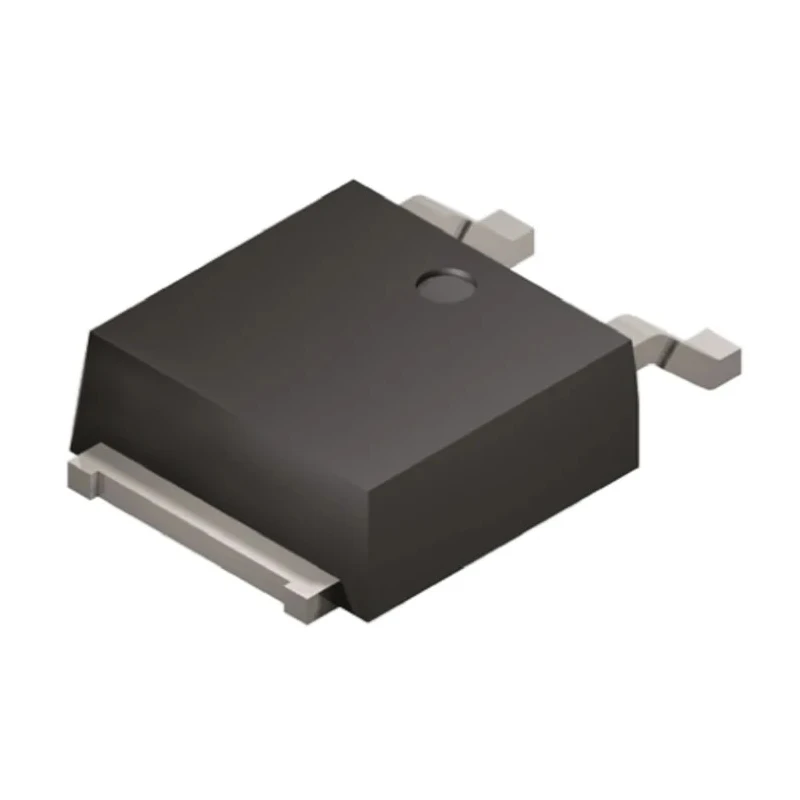

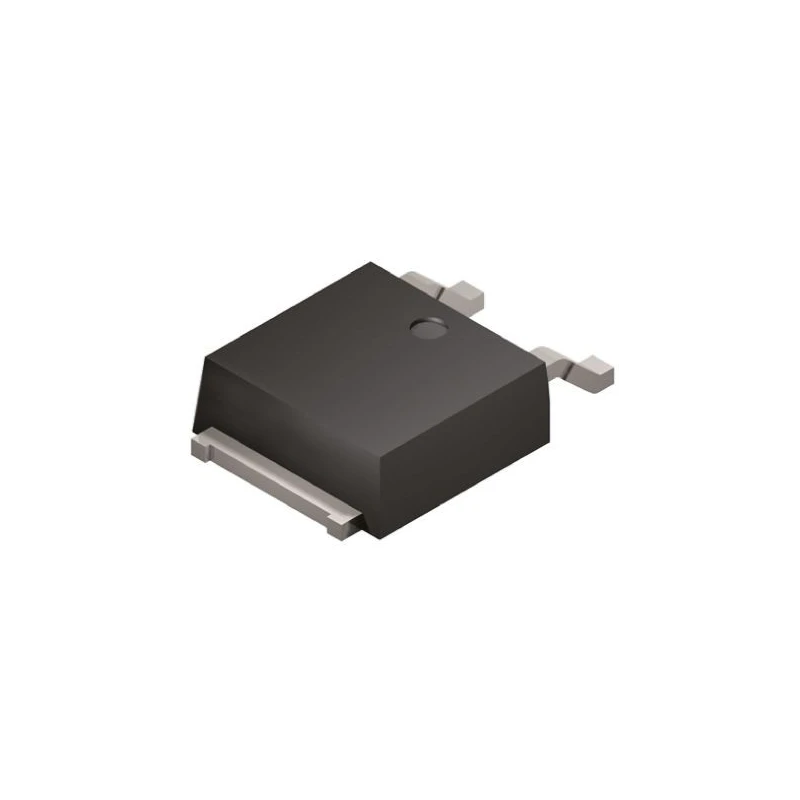

Vishay High-Performance 60 V 7 A Schottky Diode 3-Pin DPAK VS-6CWQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-6CWQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 490A |
| Maximum Forward Voltage Vf | 0.61V |
| Vishay 60V 3.5A, Dual Schottky Diode, 3-Pin D-PAK 6CWQ06FNBrand | Vishay |
Key Features
- The diode offers a maximum forward voltage of 0.61 V for efficient conduction.
- It supports peak non-repetitive forward surge currents up to 490 A for high transient performance.
- Designed for surface mounting, it has a TO-252 package format suitable for compact electronics.
- Operating temperature range spans from -40 °C to 150 °C for reliable performance in harsh environments.
- The diode configuration is common cathode, optimized for rectification and protection applications.
- This Schottky diode is ideal for electronic circuits requiring fast switching and low power loss.
- Its compact dimensions of approximately 6.73 mm length and 6.22 mm width enable space-saving PCB designs.
Product Description
Vishay VS-6CWQ06FN-M3 is a high-performance Schottky diode housed in a 3-pin DPAK (TO-252) surface mount package, rated for 60 V peak reverse voltage and 7 A maximum continuous forward current. This diode exhibits a low forward voltage drop of 0.61 V and exceptional fast switching characteristics, making it suitable for power rectification in electronics.
Designed for both industrial and commercial electronics, the diode supports peak non-repetitive forward surge currents of up to 490 A and operates reliably between -40 °C minimum and 150 °C maximum junction temperatures. The common cathode diode configuration makes it versatile for use in various power management circuits.
The compact form factor with length of 6.73 mm, width of 6.22 mm, and height of 2.39 mm facilitates integration into densely packed circuit boards, commonly found in consumer electronics, power supplies, automotive electronics, and industrial automation systems.
Vishay Schottky diodes like VS-6CWQ06FN-M3 are engineered for applications requiring high efficiency and quick switching to minimize power losses and thermal stress. Typical uses include voltage clamping, polarity protection, freewheeling diodes in motor drives, and power supply rectification.
The diode features a 3-pin DPAK surface mount package for easy PCB assembly. Maximum continuous forward current stands at 7 A for demanding power circuits. It has a peak reverse repetitive voltage rating of 60 V for robustness against voltage spikes.
Its low forward voltage drop of 0.61 V significantly reduces conduction losses. Operating temperature range from -40 °C to 150 °C ensures durability.
This diode represents an essential component for high-speed switching applications in the semiconductor category, particularly for professionals designing or servicing power electronics and related fields.
Explore more Vishay semiconductor products and related Schottky diodes in EnvMart’s extensive electronics component catalog for enhanced design and manufacturing solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 7 A, making it suitable for demanding power circuits.
This Schottky diode has a peak reverse repetitive voltage rating of 60 V, providing robustness against voltage spikes.
The diode exhibits a low forward voltage drop of 0.61 V, which helps reduce conduction losses in electronic circuits.
It operates reliably within a temperature range of -40 °C to 150 °C, ensuring durability in harsh environments.
This diode is housed in a 3-pin DPAK (TO-252) surface mount package, facilitating easy PCB assembly.
The diode configuration is common cathode, optimized for rectification and protection applications.
The diode supports peak non-repetitive forward surge currents of up to 490 A, allowing for high transient performance.
The dimensions of the diode are approximately 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
This Schottky diode is ideal for applications such as voltage clamping, polarity protection, and power supply rectification.
The peak reverse current for this model is rated at 2 mA, which is typical for Schottky diodes.
This diode is designed for use in both industrial and commercial electronics, including consumer electronics and automotive applications.
The country of origin for this Schottky diode is India.
