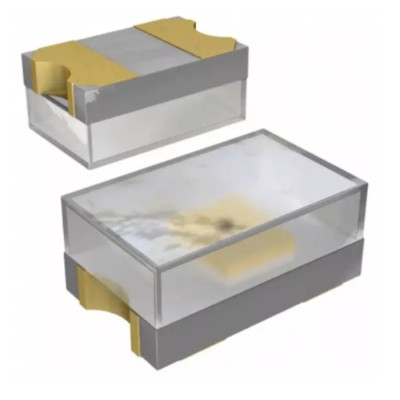

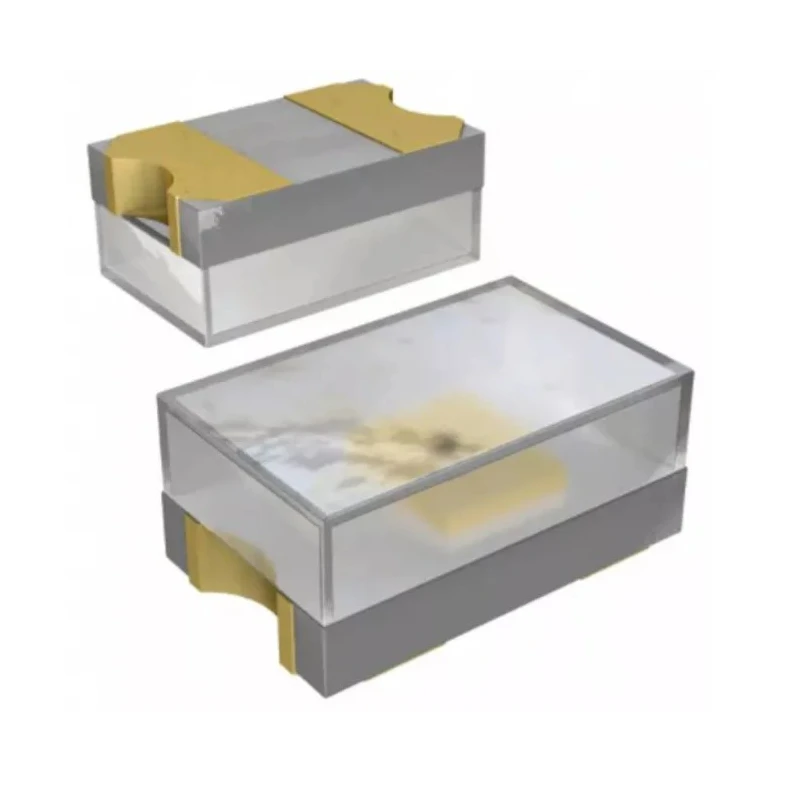

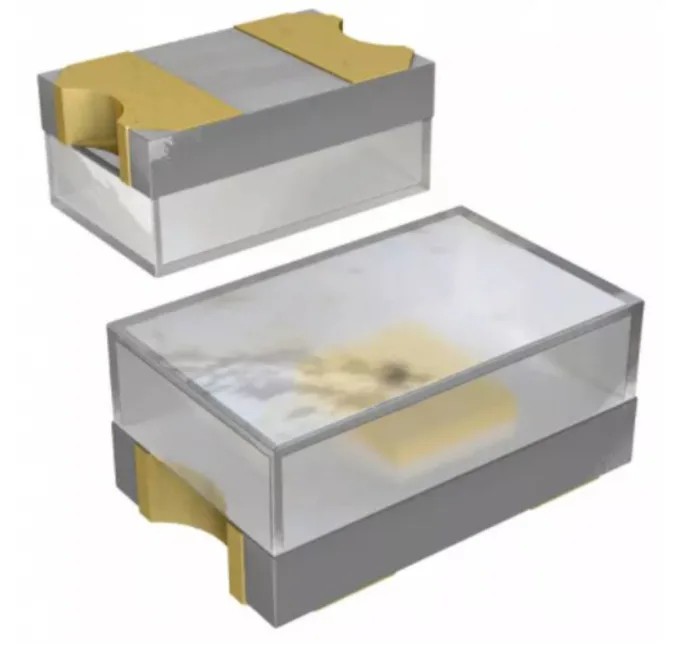

Vishay Infrared Photodiode 65 ° Angle Sensitivity Surface Mount 0805 Package TEMD7100X01

Vishay TEMD7100X01 Infrared Photodiode is a high-performance PIN photodiode designed for sensing infrared light with excellent precision and fast response times. Housed in a compact surface mount 0805 package (2 x 1.25 x 0.85 mm), it features a daylight blocking filter that prevents interference from ambient visible light, ensuring accurate infrared measurements.

This photodiode operates reliably in a wide temperature range from -40°C to 100°C, making it suitable for various industrial and automotive applications such as photodetectors, IR remote controls, IR data transmission systems, photointerrupters, and shaft encoders.

The device has a peak sensitivity wavelength at 950nm with spectral detection spanning from 750nm to 1050nm, and an angle of half sensitivity of 65°, which helps define its angular response characteristics. Its fast response time, with typical rise and fall times of 80 nanoseconds, facilitates high-speed signal detection necessary in modern electronic systems.

Additional technical features include a maximum breakdown voltage of 60V, open circuit voltage rated at 350mV, dark current of 2nA, and a short circuit current of 32μA. The photodiode complies with RoHS directives and the automotive AEC-Q101 standard, confirming its environmental and operational reliability.

The product is supplied with 2 pins for surface mounting on PCBs and packaged in tape & reel for streamlined manufacturing processes. The Vishay TEMD7100X01 is ideal for use in industrial electronics, automotive sensors, manufacturing equipment, and other applications that require precise infrared light detection in a compact form factor.

Compact surface mount package with 0805 footprint for easy PCB integration. Operates at temperatures from -40°C to 100°C ensuring durability. Features a daylight filter to block ambient visible light for accurate IR detection.

Offers high radiant sensitivity with peak wavelength sensitivity at 950nm. Fast response times with typical rise and fall times of 80ns for efficient signal detection. Contains a 0.23mm² sensitive chip area providing reliable detection performance.

Maximum breakdown voltage of 60V and open circuit voltage of 350mV. Meets RoHS and AEC-Q101 automotive standards for quality and safety compliance. Supplied in tape & reel packaging with 2-pin surface mount connections. Explore our Electronics Components and Photodiode categories at EnvMart for premium Vishay infrared photodetectors and other high-quality optoelectronic components.
