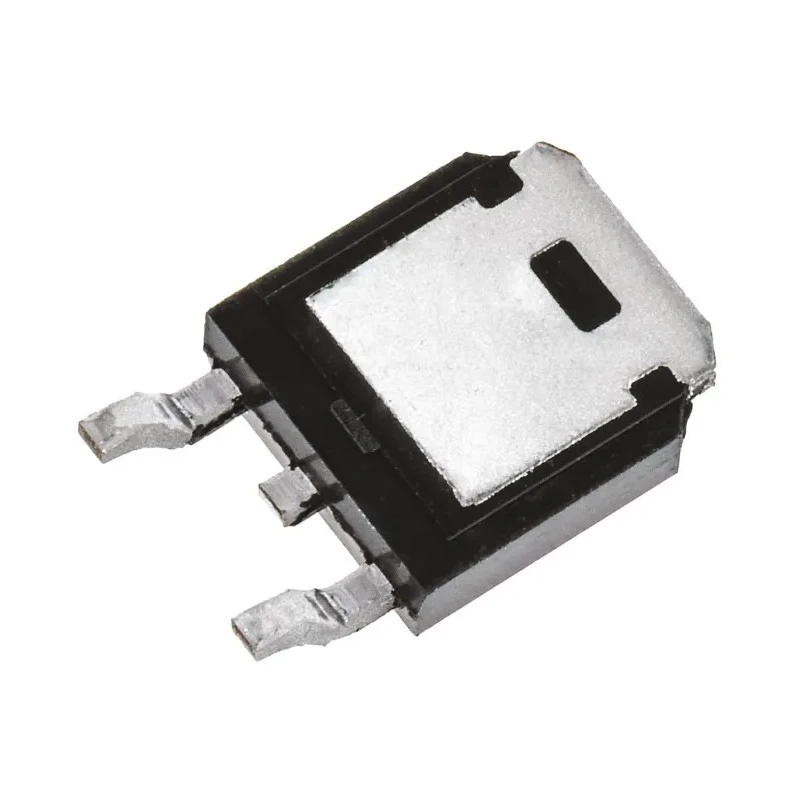

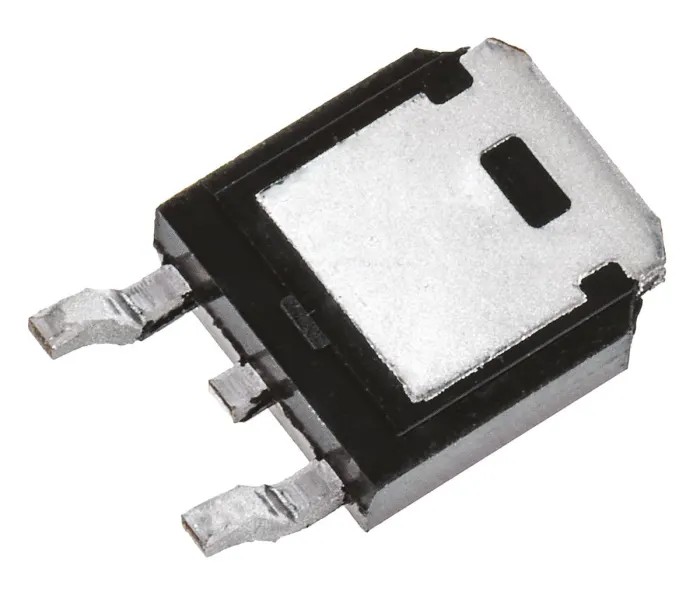

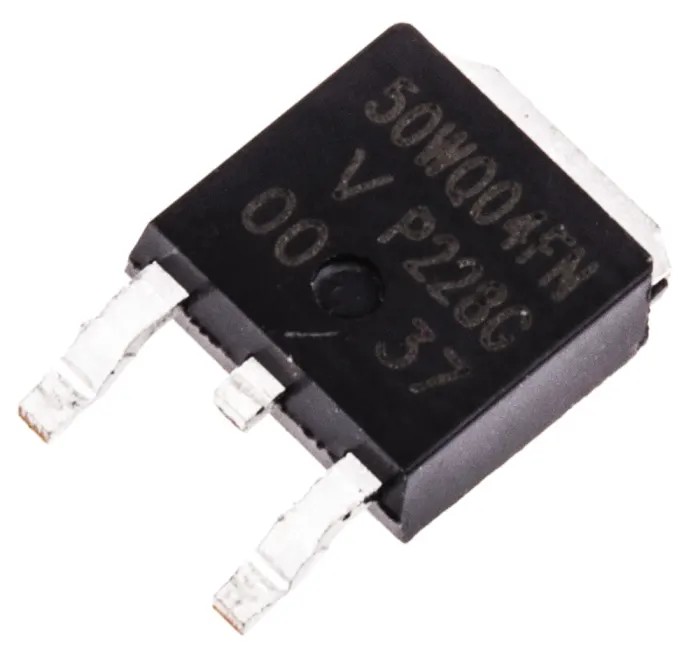

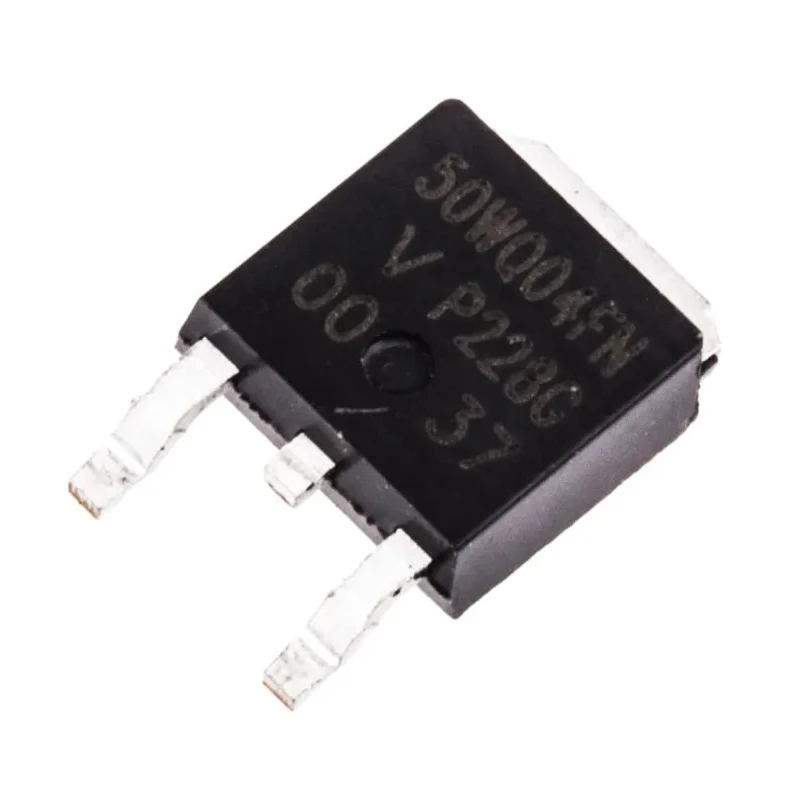

Vishay High-Performance 40 V 5.5 A Schottky Diode 3-Pin DPAK VS-50WQ04FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-50WQ04FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5.5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 550A |
| Maximum Forward Voltage Vf | 440mV |
| Vishay 40V 5.5A, Schottky Diode, 3-Pin D-PAK 50WQ04FNBrand | Vishay |
Key Features
- High-performance Schottky rectifier with fast switching and low forward voltage drop.
- Surface-mount TO-252 package ensures easy PCB integration.
- Maximum forward voltage of 440 mV for efficient power management.
- Wide operating temperature range from -40°C to 150°C.
- Peak reverse repetitive voltage rating of 40 V and peak forward surge current of 550 A.
- Designed for applications requiring fast switching and low power loss.
- Single diode configuration with 3-pin arrangement.
- Peak reverse current at 3 mA supports stable operation.
Product Description
Vishay VS-50WQ04FN-M3 is a high-performance Schottky diode designed for electronic and power management applications. This diode features a peak reverse repetitive voltage of 40 V and a maximum continuous forward current of 5.5 A, packaged in a compact 3-pin DPAK (TO-252) surface-mount housing.
Schottky diodes like this feature extremely fast switching and low forward voltage drop, minimizing power dissipation and enhancing efficiency in circuits. This makes the diode suitable for high-speed rectification and power supply designs.
The diode's maximum forward voltage is 440 mV, ensuring low conduction losses during operation. It can withstand peak non-repetitive forward surge currents up to 550 A, providing robustness against transient conditions.
The operating temperature range spans from -40°C to 150°C, suitable for harsh industrial environments. Compact physical dimensions (length 6.73 mm, width 6.22 mm, height 2.39 mm) aid space-saving PCB designs.
With a single diode configuration and 3-pin layout, this component easily integrates into electronic assemblies requiring efficient rectification. Its low peak reverse current of 3 mA contributes to low leakage losses.
High switching speed and low voltage drop for energy-efficient applications. Compact surface-mount TO-252 package for streamlined PCB assembly. Thermally robust design supports up to 150°C operating temperature. High surge current capability enhances reliability during power spikes.
Suitable for industrial electronics, power supplies, telecommunication equipment, and other fast-switching circuits.
This Vishay Schottky diode is engineered to meet demanding industrial and electronic component requirements. It is an excellent choice for energy-efficient rectification and power conditioning solutions.
Explore more Vishay semiconductor components and Schottky diodes in the EnvMart catalog for your advanced electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-50WQ04FN-M3 Schottky diode is 5.5 A.
This model has a peak reverse repetitive voltage rating of 40 V.
The dimensions of the diode are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The maximum forward voltage drop of the Vishay VS-50WQ04FN-M3 is 440 mV.
The operating temperature range for this diode spans from -40°C to 150°C.
The peak non-repetitive forward surge current rating is 550 A.
This diode has a 3-pin configuration.
The diode is packaged in a TO-252 surface-mount package.
The peak reverse current for the Vishay VS-50WQ04FN-M3 is 3 mA.
This Schottky diode is suitable for industrial electronics, power supplies, telecommunication equipment, and other fast-switching circuits.
The rectifier type of this diode is Schottky.
The country of origin for the Vishay VS-50WQ04FN-M3 Schottky diode is India.
