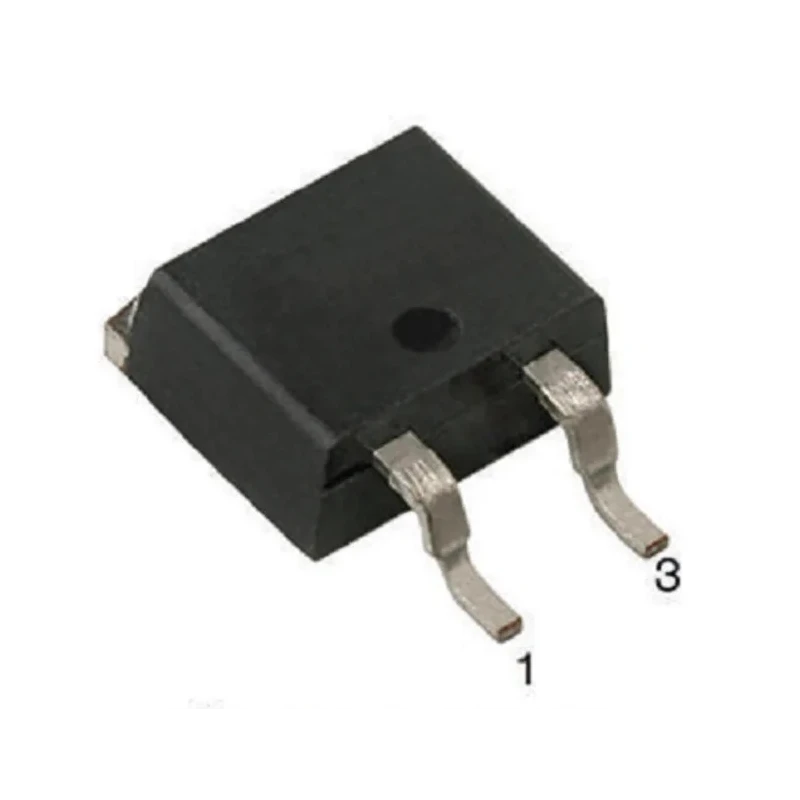

Vishay Hyperfast Rectifier & Schottky Diode, 1200 V, 15 A, D2PAK, TO-263 Package,
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | D2PAK |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 2.1V |
Key Features
- Hyperfast rectifier with optimized switching losses for high efficiency applications.
- Rated for 1200 V peak reverse voltage and 15 A continuous forward current.
- Single diode configuration in TO-263 (D2PAK) surface mount package.
- Maximum operating junction temperature up to 175°C for extended reliability.
- Automotive-grade, AEC-Q101 qualified and RoHS compliant design.
- Ideal for EV/HEV battery charging stations, solar inverter booster stages, and UPS systems.
- Features polyimide passivation for enhanced durability.
- Best in class forward voltage drop and switching loss trade-off.
Product Description
Vishay VS-E5TX1512S2LHM3 is a hyperfast rectifier and Schottky diode designed for demanding power conversion applications. This diode operates at 1200 V peak reverse repetitive voltage and delivers up to 15 A continuous forward current, making it suitable for high frequency converters, soft switched/resonant systems, and power factor correction stages. The TO-263 (D2PAK) surface mount package ensures easy integration into modern PCBs.
Hyperfast technology offers optimized switching and low conduction losses for improved efficiency. Single diode configuration streamlines layout for high-speed operation. Maximum forward voltage of 2.1 V supports best-in-class voltage drop and switching loss balance.
High surge capability with peak non-repetitive forward surge current of 110 A. Wide temperature range from -55°C to 175°C for robust industrial and automotive use. Polyimide passivation and AEC-Q101 automotive qualification contribute to long-term reliability.
RoHS compliant, meeting the latest environmental standards. Ideal for EV battery charging, solar inverter booster stages, UPS output rectification, and similar industrial, laboratory, and commercial applications.
This rectifier is perfectly matched for use with MOSFETs or high speed IGBTs, supporting efficient energy conversion in demanding environments. The device meets MSL level 1 per J-STD-020, withstands a maximum peak of 245°C, and meets JESD 201 class 2 whisker test requirements.
Explore more Vishay power semiconductors and Schottky Diodes on EnvMart for your advanced design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage for this diode is 1200 V.
This model is rated for a continuous forward current of 15 A.
The diode is packaged in a TO-263 (D2PAK) surface mount configuration.
The maximum operating temperature is 175°C.
The minimum operating temperature is -55°C.
The maximum forward voltage drop is 2.1 V.
The peak non-repetitive forward surge current rating is 110 A.
Yes, it is AEC-Q101 qualified, making it suitable for automotive applications.
This model is classified as a general-purpose rectifier.
It is ideal for EV battery charging, solar inverter booster stages, and UPS output rectification.
This diode is RoHS compliant, adhering to the latest environmental standards.
The diode is configured as a single diode.
