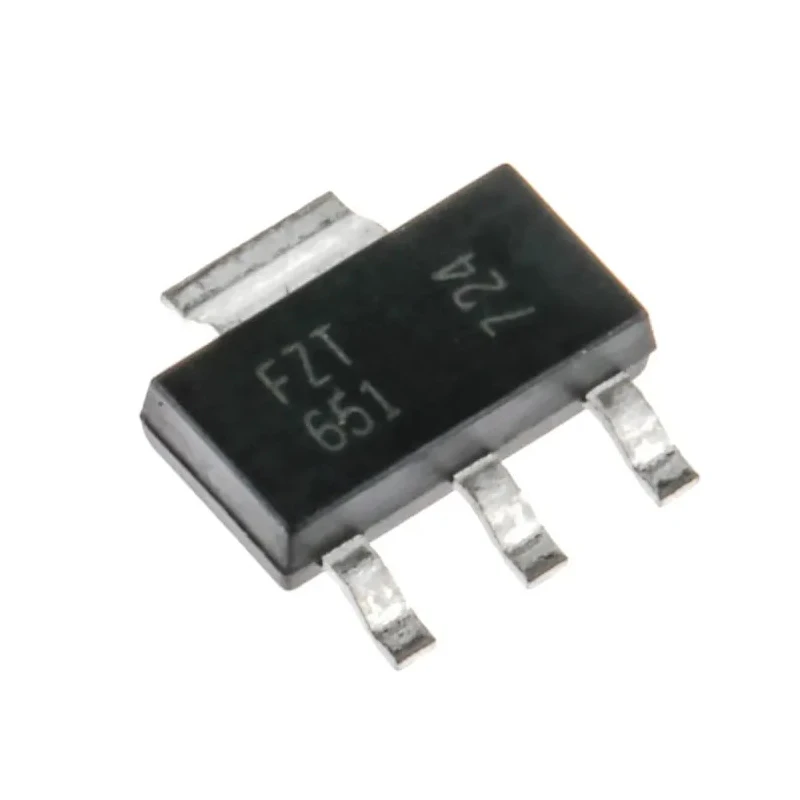

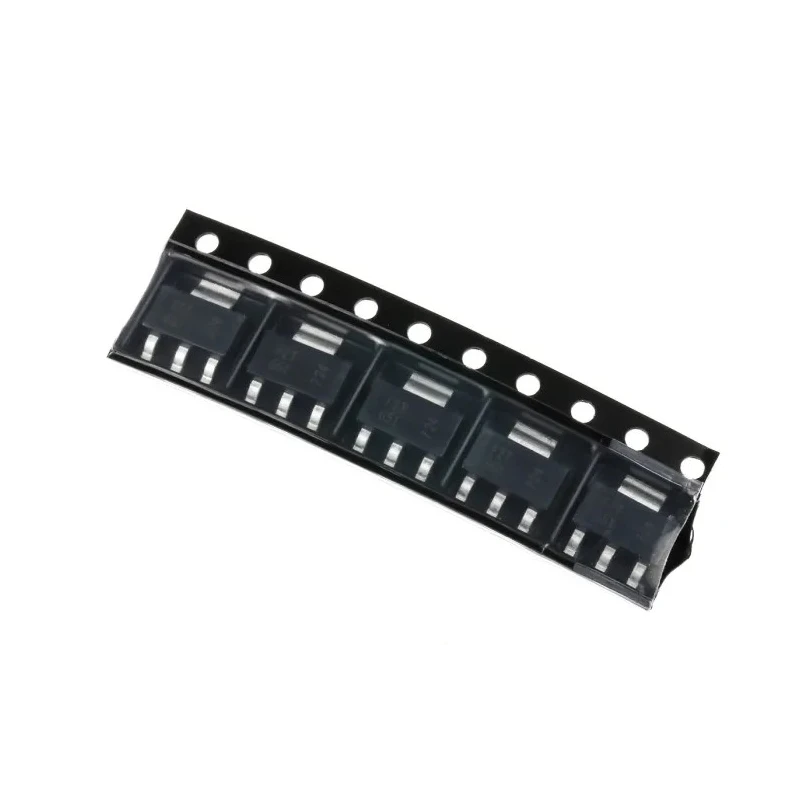

DiodesZetex General Purpose 3 A NPN Bipolar Transistor 60 V Surface Mount 4-Pin SOT-223 FZT651TA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex General Purpose 3 A NPN Bipolar Transistor 60 V Surface Mount 4-Pin SOT-223 FZT651TA

Name: DiodesZetex General Purpose 3 A NPN Bipolar Transistor 60 V Surface Mount 4-Pin SOT-223 FZT651TA
Brand: DiodesZetex
SKU: 116756
Price: 20.22 USD
Availability: InStock



Category Bipolar Transistors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.7mm
Length	6.7mm
Model	FZT651TA
Width	7.3mm
Mount Type	Surface
Series	FZT651
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Pin Count	4
Maximum Collector Emitter Voltage Vceo	60V
Minimum DC Current Gain hFE	40
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	80V
Automotive Standard	AEC-Q100, AEC-Q101, AEC-Q104, AEC-Q200
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	3A
Transistor Configuration	Single
Maximum Transition Frequency ft	175MHz

Key Features

This transistor features a maximum power dissipation of 2 W for compact circuit designs.
It offers a minimum DC current gain (hFE) of 40 for reliable amplification.
Operates within a wide temperature range of -55°C to 150°C to suit diverse applications.
Pin count is 4, enabling easy PCB integration with surface mount technology.
Automotive standard certified with AEC-Q100, AEC-Q101, AEC-Q104, and AEC-Q200 approvals.
Designed for high frequency operation with maximum transition frequency of 175 MHz.

Product Description

DiodesZetex FZT651TA is a high performance NPN Bipolar Junction Transistor designed for general purpose amplification and switching applications. Operating with a maximum DC collector current of 3 A and collector emitter voltage rating of 60 V, it fits well in compact, surface mount SOT-223 packages offering a practical balance between power handling and size.

This transistor supports a broad operating temperature range from -55°C up to 150°C, making it suitable for automotive and industrial environments. The minimum DC current gain of 40 ensures effective signal amplification in low power circuits.

With a maximum transition frequency of 175 MHz, the FZT651TA transistor can operate efficiently in high frequency circuits and fast switching applications. The package houses 4 pins and is compatible with surface mount technologies facilitating easy PCB assembly in modern electronic designs.

Certified to automotive standards AEC-Q100, AEC-Q101, AEC-Q104, and AEC-Q200, this device is reliable for automotive and harsh environment applications. It features maximum voltages of 80 V collector base and 5 V emitter base alongside a 2 W maximum power dissipation.

This transistor delivers 3 A maximum collector current performance suitable for a range of applications. Optimized for surface mount PCBs with a 4-pin SOT-223 package for convenient assembly. Wide operating temperature range of -55°C to 150°C enables use in demanding conditions.

Designed to meet stringent automotive standards including AEC-Q100 series certifications. High maximum transition frequency of 175 MHz supports fast switching and RF applications. Compact size dimensions of length 6.7 mm, width 7.3 mm, and height 1.7 mm streamline circuit design.

The DiodesZetex FZT651TA bipolar transistor is ideal for industrial, automotive, and consumer electronics requiring reliable switching and amplification. Explore the full range of Bipolar Transistors and discrete semiconductors at EnvMart for your electronic component needs.
