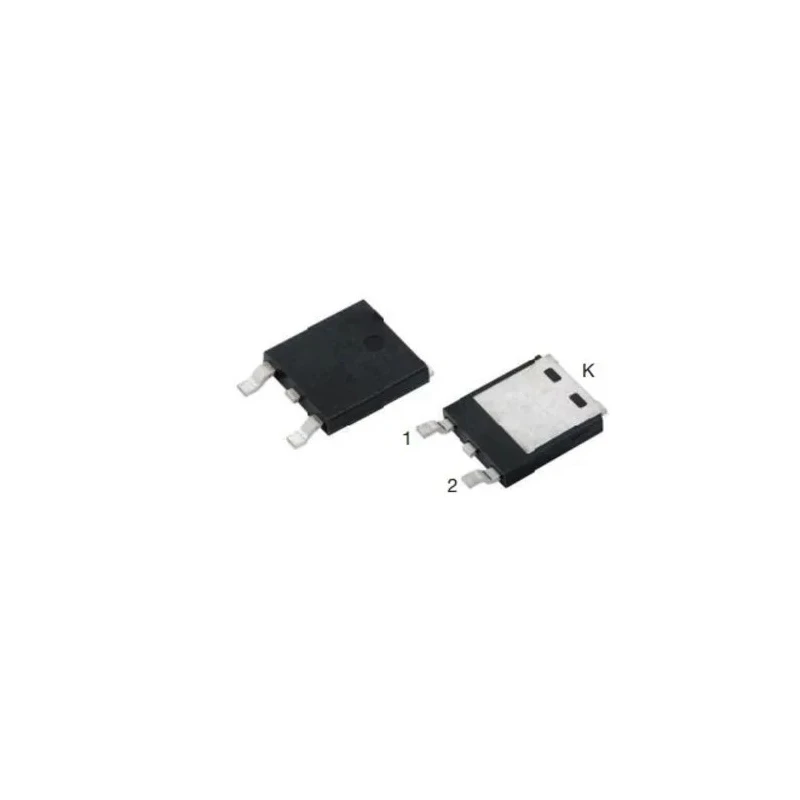

Vishay Rectifier & Schottky Diode Schottky DPAK 45 V 20 A TMBS Series V20PW45CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.3mm |
| Length | 9.4mm |
| Model | V20PW45CHM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | TMBS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Maximum continuous forward current of 20 A ensures robust performance.
- Peak reverse repetitive voltage rated at 45 V for reliable operation.
- Low forward voltage drop of 0.6 V minimizes power losses.
- Surface mount package type TO-252 with a low profile height of 1.3 mm.
- Peak non-repetitive forward surge current capability of 150 A.
- Operates efficiently between -40°C and 150°C.
- Diode configuration consists of two common cathode pairs in TMBS series.
- Complies with RoHS and Automotive AEC-Q101 standards for quality assurance.
Product Description
The Vishay V20PW45CHM3/I Rectifier & Schottky Diode is a high-performance surface-mount Schottky diode in a TO-252 package designed for applications requiring a maximum continuous forward current of 20 A and a peak reverse voltage of 45 V.
This diode utilizes Trench MOS Schottky technology, offering a low forward voltage drop of 0.6 V which enhances efficiency by reducing power loss during operation. With a low profile height of 1.3 mm, it is suitable for automated PCB placement processes.
Operating temperature ranges from -40°C to 150°C, making it suitable for demanding industrial environments. Its peak non-repetitive surge current of 150 A provides robustness against transient conditions.
The device includes two common cathode pairs configured in the TMBS series, ideal for applications such as low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits used in industrial, automotive, and commercial electronics.
Surface mount TO-252 package ensures compatibility with automated assembly. Compliant with RoHS and AEC-Q101 automotive standards assures quality and reliability. Compact dimensions (9.4 mm length by 6.32 mm width) support space-constrained designs.
Low forward voltage drop reduces power dissipation improving thermal performance. Peak surge current capability of 150 A enhances surge resistance. This Vishay Schottky diode is recommended for industrial and automotive electronics requiring efficient, reliable rectification under high current and voltage conditions.
Explore more semiconductor components and Schottky Diodes at EnvMart for engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V20PW45CHM3/I is 20 A.
This model has a peak reverse repetitive voltage rating of 45 V.
The forward voltage drop is 0.6 V, which helps reduce power losses during operation.
The dimensions of the TO-252 package are 9.4 mm in length, 6.32 mm in width, and a height of 1.3 mm.
It operates efficiently between -40°C and 150°C.
The peak non-repetitive forward surge current capability is 150 A.
It consists of two common cathode pairs in the TMBS series configuration.
Yes, it complies with RoHS and AEC-Q101 automotive standards, ensuring quality assurance.
This Schottky diode is ideal for low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits in industrial and automotive electronics.
The peak reverse current is rated at 1 mA.
This model uses a surface mount type, specifically in a TO-252 package.
It utilizes Trench MOS Schottky technology, which provides a low forward voltage drop for enhanced efficiency.
