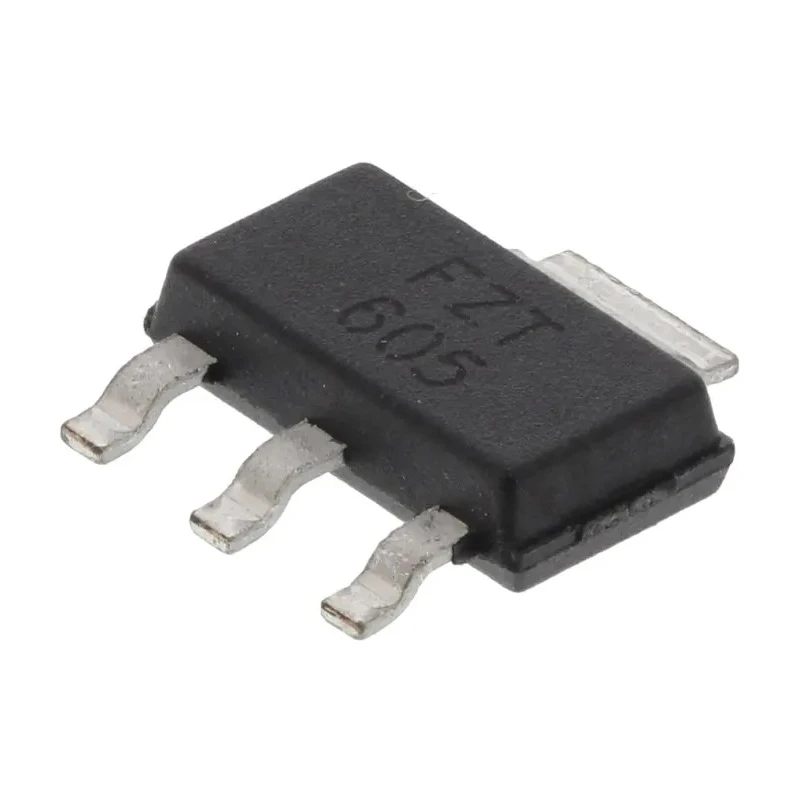

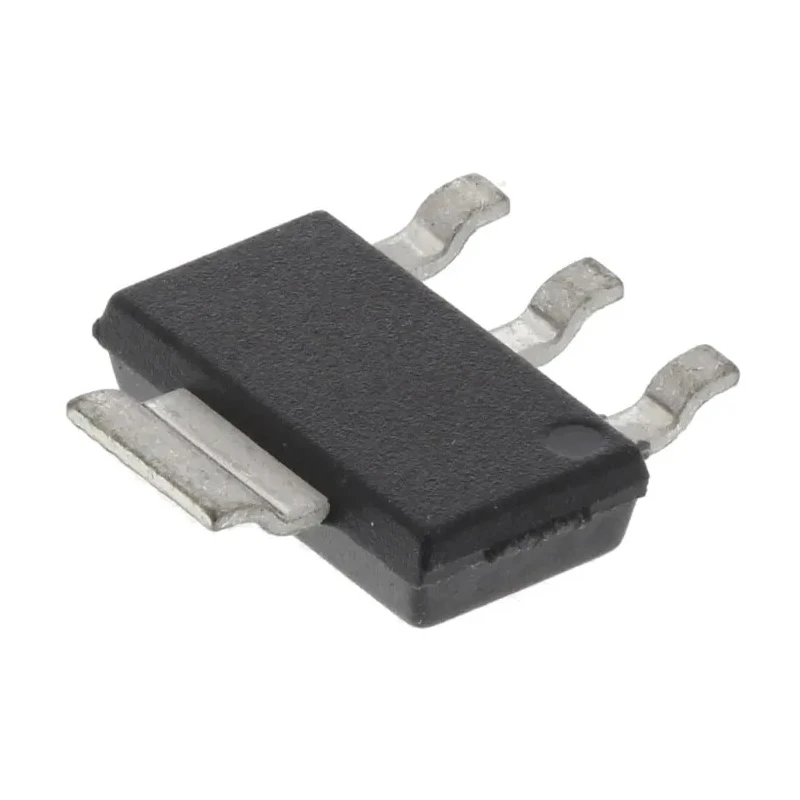

DiodesZetex NPN Darlington Transistor 1.5 A 120 V 3 W Surface Mount 4-Pin SOT-223 FZT605TA

DiodesZetex FZT605TA is a high-performance NPN Darlington transistor designed for various industrial and automotive applications requiring reliable switching and amplification capabilities. It supports a maximum continuous collector current of 1.5 A and can handle voltages up to 120 V between collector and emitter, making it suitable for power management and control circuitry.

The transistor is delivered in a 4-pin SOT-223 surface mount package that facilitates compact and efficient PCB layouts, beneficial for modern electronics design. Its maximum power dissipation of 3 W allows it to manage moderate power loads with stability.

Featuring a minimum DC current gain of 500, the FZT605TA ensures that electronic signals can be effectively amplified. It operates reliably across a wide temperature range from -55°C up to 150°C, accommodating harsh environmental conditions commonly found in automotive and industrial settings.

Additional electrical ratings include a maximum emitter-base voltage of 10 V and collector-base voltage of 140 V. These parameters make it versatile for use in regulated power supplies, motor controls, and other transistor switching roles.

Designed to meet the stringent AEC-Q101 automotive standard, the FZT605TA is ideal for use in automotive electronic systems requiring durability and quality assurance. This Darlington transistor includes precise physical dimensions suitable for designing compact electronic modules, with length measuring 6.7 mm and height of 1.65 mm.

The transistor is housed in a 4-pin SOT-223 package allowing for compact PCB design. Maximum power dissipation of 3 W enables reliable operation under moderate loads. High DC current gain (hFE) of 500 ensures efficient switching and amplification.

Operating temperature range from -55°C to 150°C supports wide environmental tolerance. Maximum emitter-base voltage of 10 V and collector-base voltage of 140 V for robust performance. AEC-Q101 automotive standard compliance assures suitability for automotive electronics.

Physical dimensions include a length of 6.7 mm and height of 1.65 mm.
