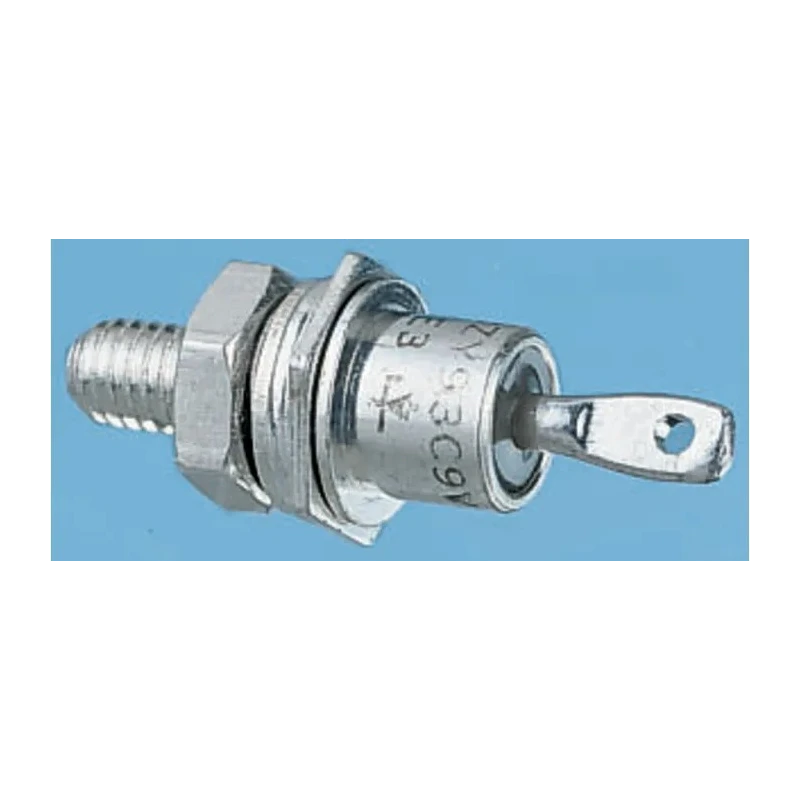

Vishay Standard Recovery Diode 1 kV 16 A, 2-Pin DO-203AA VS-16FR100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-16FR100 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-16F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Stud Anode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 370A |
| Maximum Forward Voltage Vf | 1.23V |
| Vishay 800 V 16 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- This diode supports a maximum continuous forward current of 16 amperes.
- It has a peak reverse repetitive voltage rating of 1 kV for high voltage applications.
- The device features a standard recovery rectifier design for efficient performance.
- The diode configuration is stud anode with a 2-pin mount type suitable for screw installations.
- Operates reliably between temperatures -65°C to 175°C for demanding environments.
- Maximum forward voltage is rated at 1.23 volts to minimize power loss.
- Peak non-repetitive forward surge current capacity of 370 amperes supports transient conditions.
- Designed without automotive standards, this diode is ideal for general-purpose power electronics.
Product Description
Vishay VS-16FR100 is a high-performance Standard Recovery Diode designed for power electronic applications requiring reliable rectification with substantial current and voltage ratings.
It comes in a compact 2-pin DO-203AA package featuring a stud anode diode configuration ideal for efficient electrical performance and easy mounting via screw connections.
This diode supports a maximum continuous forward current of 16 amperes and can withstand peak reverse repetitive voltages up to 1 kV, making it suitable for medium to high voltage circuits.
The device's maximum forward voltage of 1.23 volts minimizes conduction losses, enhancing overall circuit efficiency. Operating temperature ranges from -65°C to 175°C allow reliable function in harsh industrial, laboratory, and commercial environments.
With a peak non-repetitive forward surge current rating of 370 amperes, the diode can sustain transient overloads safely without damage. Physical dimensions of 31.8 mm height, 12.69 mm length, and 11 mm diameter provide a compact footprint suitable for space-constrained applications.
This diode does not incorporate automotive standards and is thus primarily intended for power supply, industrial control, and electronic equipment within electronics and electrical sectors.
This product is ideal for use in industrial power rectification systems requiring high voltage and current capacity. The standard recovery characteristic ensures timely switching to reduce switching losses in power circuits.
Its robust mechanical design featuring a DO-203AA package enhances reliability in demanding operating conditions. Explore Vishay's extensive range of semiconductor devices on EnvMart for comprehensive solutions in discrete semiconductors and power electronics.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 16 amperes.
This model has a peak reverse repetitive voltage rating of 1 kV, making it suitable for high voltage applications.
The diode has a height of 31.8 mm, a length of 12.69 mm, and a diameter of 11 mm.
It operates reliably between temperatures of -65°C to 175°C.
The diode features a screw mount type configuration, suitable for easy installation.
The maximum forward voltage is rated at 1.23 volts, which helps minimize power loss.
This diode can handle a peak non-repetitive forward surge current of 370 amperes.
The diode configuration is a stud anode, which is designed for efficient electrical performance.
This model is classified as a standard recovery diode, which ensures efficient rectification.
This diode is not designed to incorporate automotive standards and is intended for general-purpose power electronics.
It is primarily intended for power supply, industrial control, and electronic equipment within the electronics and electrical sectors.
The country of origin for this diode is India.
