DiodesZetex High Performance NPN Transistor 2 A 100 V 4-Pin SOT-223 FZT653TA

Free Delivery in India | Lowest Global Shipping Charges

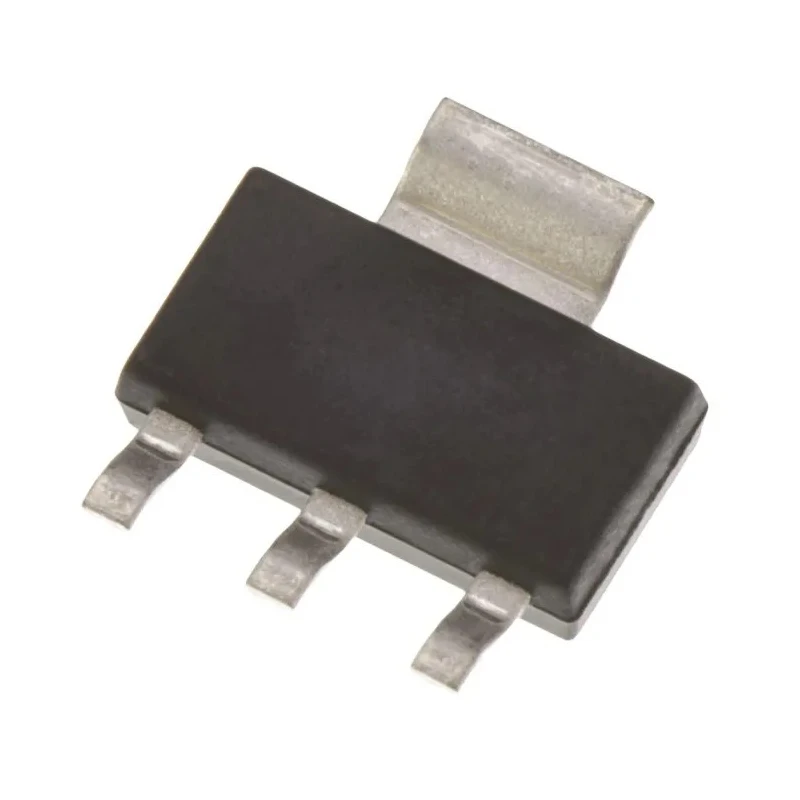

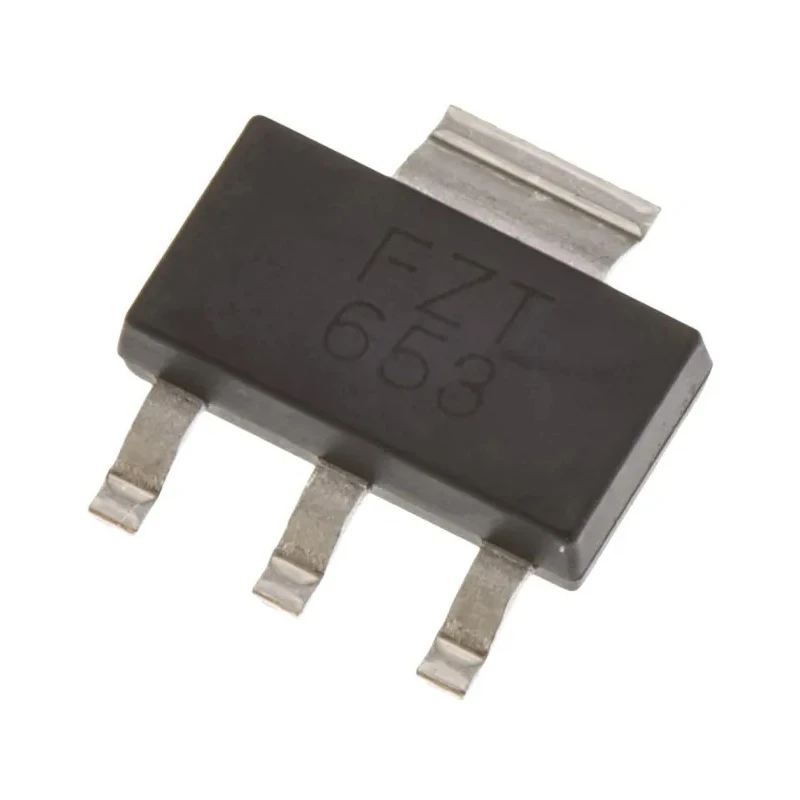

DiodesZetex High Performance NPN Transistor 2 A 100 V 4-Pin SOT-223 FZT653TA

Name: DiodesZetex High Performance NPN Transistor 2 A 100 V 4-Pin SOT-223 FZT653TA
Brand: DiodesZetex
SKU: 116736
Price: 0.54 USD
Availability: InStock



Category Bipolar Transistors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.65mm
Length	6.55mm
Model	FZT653TA
Width	7.1mm
Mount Type	Surface
Series	FZT653
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Pin Count	4
Maximum Collector Emitter Voltage Vceo	100V
Minimum DC Current Gain hFE	25
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	120V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	2A
Transistor Configuration	Single
Maximum Transition Frequency ft	175MHz
onsemi NSV40301MZ4G NPN Transistor, 3 A, 40 V, 3 + Tab-Pin SOT-223Brand	ON Semiconductor
onsemi 2SC3647S-TD-E NPN Bipolar Transistor, 2 A, 100 V, 3-Pin PCPBrand	ON Semiconductor

Key Features

Maximum DC collector current of 2 A and collector-emitter voltage of 100 V.
Low saturation voltage below 300 mV at 1 A for energy-efficient switching.
RoHS compliant, lead-free, and free of halogen and antimony.
Qualified to AEC-Q101 automotive standards for high reliability.
Operating temperature range from -55°C to 150°C supports harsh environments.
Transition frequency up to 175 MHz with a minimum current gain of 25.
Compact 4-pin SOT-223 package with 3 pins plus tab.
Maximum power dissipation rating of 2 W.

Product Description

The DiodesZetex FZT653TA is a high performance NPN bipolar transistor designed for surface-mount applications using a SOT-223 package with 4 pins including a tab.

Rated for a maximum collector current of 2 A and collector-emitter voltage of 100 V, this transistor is suitable for power amplification and switching circuits requiring durability and efficiency.

Its low saturation voltage (VCE(SAT) < 300 mV at 1 A) helps reduce power losses in switching applications, enhancing energy efficiency.

The transistor withstands operating temperatures from -55°C to 150°C and has a maximum power dissipation rating of 2 W, supporting reliable operation under demanding industrial and automotive conditions.

Compliant with RoHS and free of halogen and antimony, the device meets environmental standards and is qualified to AEC-Q101, attesting to its suitability for automotive electronics requiring high reliability.

Pin count is 4, including the tab, making it suitable for compact PCB designs requiring robust transistor performance. The device provides a transition frequency of 175 MHz and a minimum DC current gain of 25, ensuring good amplification characteristics.

The compact package dimensions facilitate integration into a variety of electronic assemblies. The FZT653TA transistor is ideal for use in industrial, automotive, and power management applications where efficient switching and high current handling are critical.
