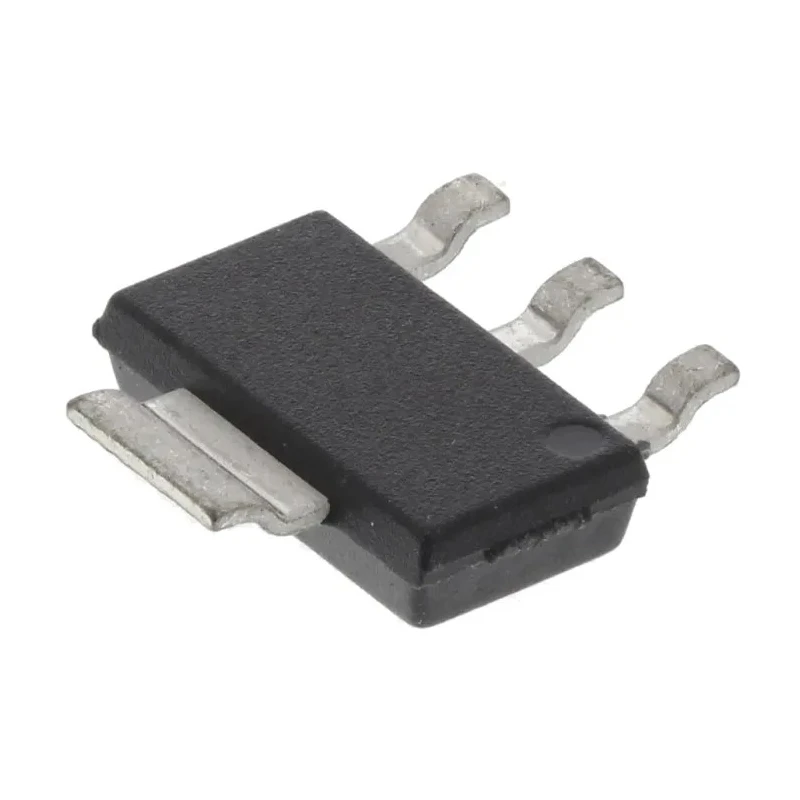

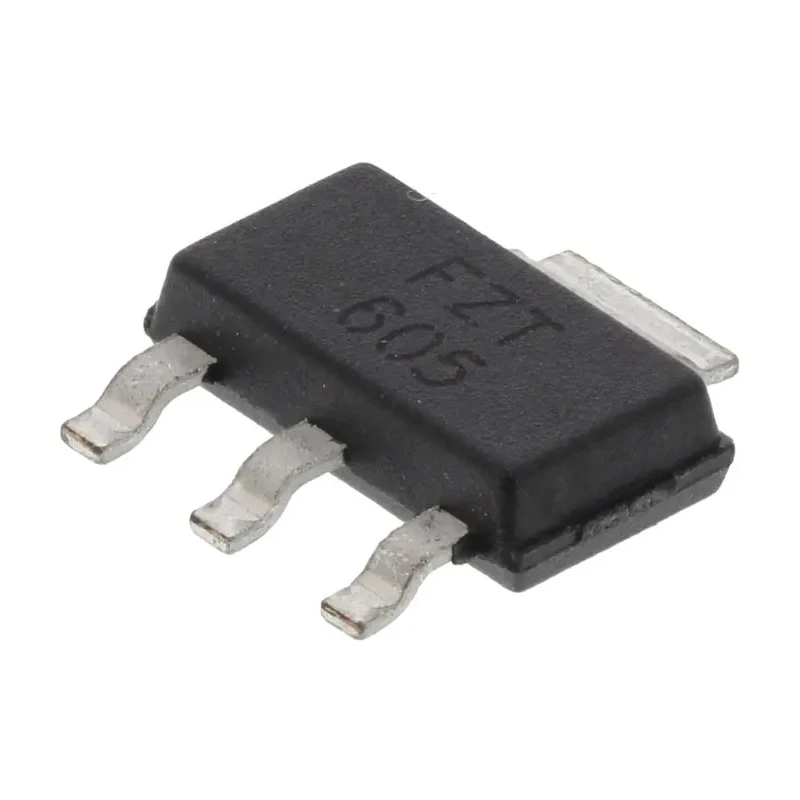

DiodesZetex Darlington Transistor NPN 1.5 A 120 V 3 W Surface Mount SOT-223 FZT605TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.65mm |
| Length | 6.7mm |
| Model | FZT605TA |
| Mount Type | Surface |
| Series | FZT605 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Collector Current Ic | 1.5A |
| Maximum Collector Emitter Voltage Vceo | 120V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 500 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 140V |
| Maximum Collector Cut-off Current | 0.00001mA |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 3W |
| DiodesZetex FZT605TA 1 Darlington Transistor NPN, 1.5 A 120 V HFE | 500, 4-Pin SOT-223 |
Key Features
- High continuous collector current rating of 1.5 A for robust performance.
- Maximum collector-emitter voltage of 120 V supports various electronic circuits.
- Surface mount SOT-223 package provides low profile and efficient PCB integration.
- Typical DC current gain hFE of 500 ensures excellent amplification.
- Maximum power dissipation rating of 3 W for stable thermal operation.
- Operating temperature range from -55°C to 150°C for reliability in harsh environments.
- Pin count of 4 pins suitable for easy circuit design.
- Automotive standard compliant to AEC-Q101 ensuring quality and durability.
Product Description
DiodesZetex FZT605TA is a high-performance NPN Darlington transistor designed for applications requiring high current capacity and voltage tolerance. With a maximum continuous collector current of 1.5 A and collector-emitter voltage of 120 V, this device is well suited for various electronic switching and amplification tasks.
The transistor is housed in a surface mount SOT-223 package featuring 4 pins, allowing easy and compact PCB mounting. It boasts a high DC current gain (hFE) of 500, delivering excellent gain characteristics for signal amplification.
This Darlington transistor supports a maximum power dissipation of 3 W, making it reliable under thermal stress with operating temperatures ranging from -55°C to 150°C. The device is AEC-Q101 automotive standard compliant, ensuring robust performance in automotive and industrial applications.
Its compact physical dimensions (length 6.7 mm, height 1.65 mm) enable integration in space-constrained circuit designs. The transistor is optimized for surface mount technology with improved heat dissipation characteristics.
Common use cases include electronic component assemblies in automotive, industrial automation, and power electronics where efficient current amplification and switching are required.
High continuous collector current rating of 1.5 A. Maximum collector-emitter voltage tolerance of 120 V. Surface mount SOT-223 package with 4 pins. DC current gain (hFE) of 500. Maximum power dissipation of 3 W for thermal stability.
Wide operating temperature range from -55°C to 150°C. Compact dimensions suitable for tight PCB layouts. Certified to AEC-Q101 automotive standard. Single element per chip for discrete applications. Explore the complete range of semiconductor components including Darlington Transistors on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 1.5 A.
It has a maximum collector-emitter voltage rating of 120 V.
This model utilizes a surface mount SOT-223 package.
The typical DC current gain (hFE) is 500, providing excellent amplification.
The maximum power dissipation rating is 3 W, ensuring stable thermal operation.
It operates within a temperature range of -55°C to 150°C.
This model has a pin count of 4, suitable for easy circuit design.
It is compliant with the AEC-Q101 automotive standard, ensuring quality and durability.
The dimensions of this transistor are 6.7 mm in length and 1.65 mm in height.
The maximum emitter-base voltage (VEBO) is 10 V.
It is an NPN Darlington transistor, designed for high current capacity and voltage tolerance.
The maximum collector-base voltage (VCBO) for this model is 140 V.
