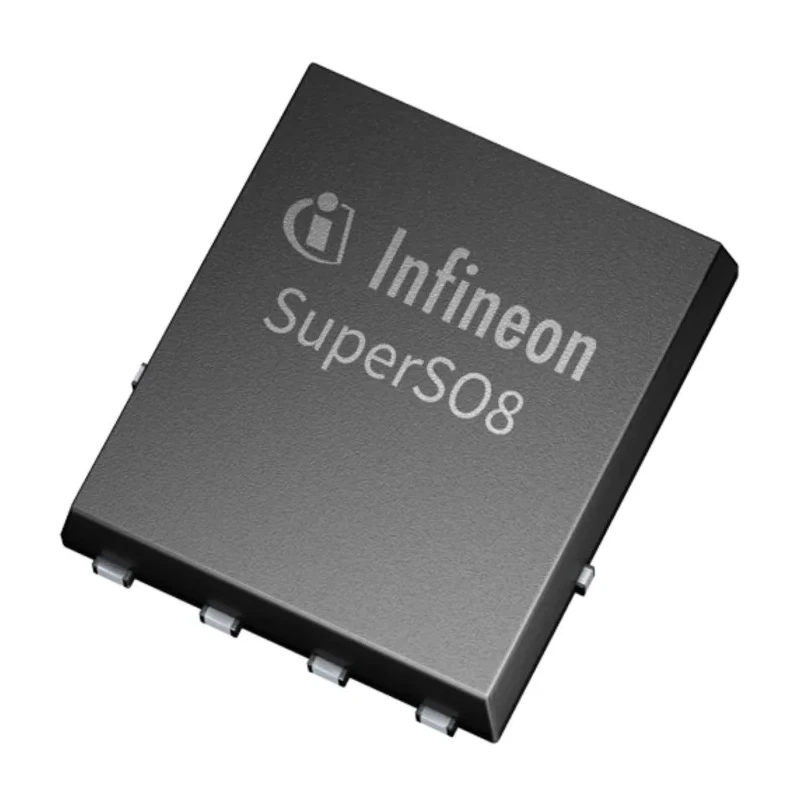

Infineon N-Channel MOSFET 40V 381A, 8-Pin SuperSO8 5x6 BSC0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BSC0 |
| Mount Type | Surface |
| Series | BSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | SuperSO8 5 x 6 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 381A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 0.7mΩ |
| Channel Mode | N |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Supports maximum continuous drain current of 381A for high power applications.
- Surface mount design with 8-pin SuperSO8 5 x 6 package ensures compact integration.
- Maximum power dissipation of 81W supports robust thermal management.
- Typical gate charge of 80nC at Vgs enhances switching performance.
- Wide operating temperature range from -55°C to 175°C for reliability.
- Maximum gate source voltage of 20V for enhanced device control.
- Low drain-source resistance of 0.7mΩ reduces conduction losses.
Product Description
Infineon BSC0 model N-Channel MOSFET, part number BSC021N08NS5ATMA1, is a high-performance power semiconductor designed for efficient synchronous rectification in electronic systems. It is optimized for server, desktop, and industrial power management applications.
This MOSFET supports a maximum continuous drain current of 381 amps, with a maximum drain-source voltage rating of 40 volts. The 8-pin SuperSO8 5 x 6 package type supports surface mounting and compact PCBs.
Featuring a maximum power dissipation of 81 watts and a typical gate charge of 80 nanocoulombs at gate-source voltage, the device provides efficient switching and thermal management capabilities. Its gate source voltage can handle up to 20V while maintaining low forward voltage drops, ensuring energy-efficient operation.
The device operates reliably over a wide temperature range from -55°C to 175°C, making it suitable for harsh industrial environments requiring robust thermal tolerance. Maximum continuous drain current of 381A. 40V maximum drain-source voltage.
SuperSO8 5x6 8-pin surface mount package. Maximum power dissipation: 81W. Typical gate charge: 80nC at Vgs. Operating temperature range: -55°C to 175°C. Maximum gate source voltage: 20V. Low drain-source resistance: 0.7mΩ.
Infineon's BSC0 N-Channel MOSFET is ideally used in industrial power supplies, computing hardware, telecommunications, and automotive sectors requiring reliable high-current and low-loss power electronics. It complies with RoHS standards ensuring environmental safety.
Explore the Electronics & Electricals categories at EnvMart for a wide range of semiconductor components including MOSFETs, power transistors, and other discrete semiconductors to suit your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 381A.
This MOSFET has a maximum drain-source voltage rating of 40V.
It comes in an 8-pin SuperSO8 5 x 6 surface mount package.
The typical gate charge at gate-source voltage (Vgs) is 80nC.
It operates reliably over a wide temperature range from -55°C to 175°C.
The maximum power dissipation for this model is 81W.
The maximum gate-source voltage that this device can handle is 20V.
It features a low drain-source resistance of 0.7mΩ.
This model is suitable for industrial power supplies, computing hardware, telecommunications, and automotive sectors.
It complies with RoHS standards, ensuring environmental safety.
This MOSFET has a pin count of 8.
It features an N-channel type.
