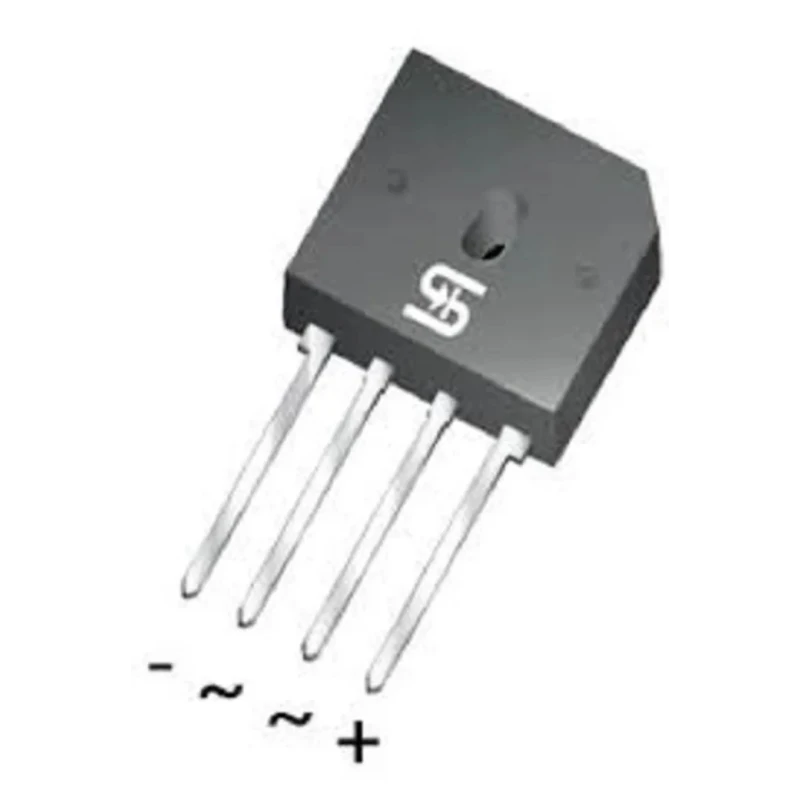

Taiwan Semiconductor Bridge Rectifier 1000 V 220 A 4-Pin Quad GBU1507
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 22.3mm |
| Length | 36.8mm |
| Model | GBU1507 |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC 61249-2-21, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Designed for applications such as switching mode power supply and adapters.
- Features a peak repetitive voltage of 1000 volts and forward current of 15 amps.
- Has a peak non-repetitive forward surge current rating of 220 amps.
- Constructed with through-hole mounting and a compact 4-pin quadruple design.
- Operates reliably between minus 55°C to maximum 150°C.
- Complies with RoHS, IEC 61249-2-21, and UL standards.
- Halogen-free and UL recognized with file number E-326243.
Product Description
Taiwan Semiconductor GBU1507 Bridge Rectifier 1000 V 220 A 4-Pin Quad is a through-hole mounted discrete semiconductor designed for rectification in electronic power systems.
This bridge rectifier is widely used in switching mode power supplies (SMPS), adapters, televisions, and monitors due to its high surge current capability and reliable performance.
It features a peak reverse repetitive voltage of 1000 volts and a maximum forward current of 15 amps, withstanding peak non-repetitive forward surge currents of up to 220 amps. The device supports a temperature range spanning from -55°C to 150°C, enabling robust operation in demanding industrial environments.
The compact GBU package with 4-pin quad configuration facilitates PCB mounting, making it suitable for automated assembly in manufacturing.
This product is RoHS compliant, halogen-free according to IEC 61249-2-21, and carries UL recognition (File # E-326243), ensuring compliance with international safety and environmental standards.
Designed for applications such as switching mode power supply and adapters. Features a peak repetitive voltage of 1000 volts and forward current of 15 amps. Has a peak non-repetitive forward surge current rating of 220 amps.
Constructed with through-hole mounting and a compact 4-pin quadruple design. Operates reliably between minus 55°C to maximum 150°C. Complies with RoHS, IEC 61249-2-21, and UL standards. Halogen-free and UL recognized with file number E-326243.
This bridge rectifier is ideal for industrial and commercial electronic assemblies requiring efficient AC to DC conversion, including manufacturing, HVAC control, and power supply systems.
Explore more semiconductor bridge rectifiers and compatible components at EnvMart for reliable and certified electronic parts.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the GBU1507 bridge rectifier is 1000 volts.
This model has a maximum forward current rating of 15 amps.
The peak non-repetitive forward surge current rating is 220 amps.
It operates reliably between -55°C and a maximum of 150°C.
This bridge rectifier is designed for through-hole mounting.
The GBU1507 features a 4-pin configuration.
The dimensions of the GBU1507 are 36.8mm in length and 22.3mm in height.
It complies with RoHS, IEC 61249-2-21, and UL standards.
The package type of this model is GBU.
It is suitable for applications such as switching mode power supplies, adapters, televisions, and monitors.
The peak forward voltage is 1.1 volts.
The GBU1507 is manufactured in India.
