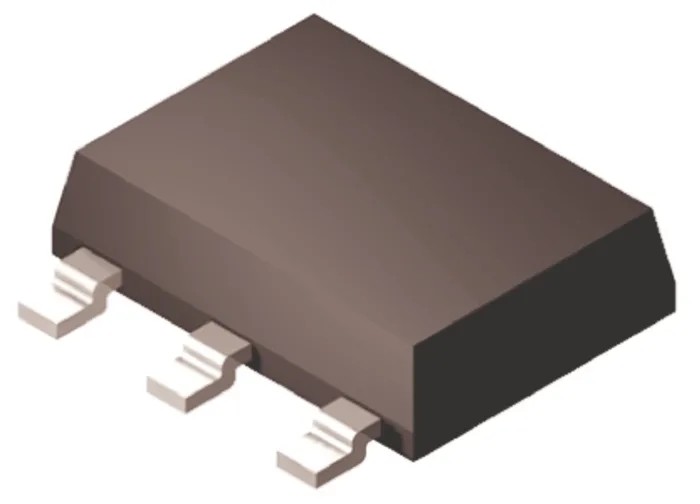

DiodesZetex 2 A NPN Bipolar Transistor 70 V 4-Pin SOT-223 FZT692BTA

The DiodesZetex FZT692BTA transistor is a high-performance NPN bipolar transistor designed for discrete semiconductor applications. It supports a maximum collector current of 2 A and can withstand collector-emitter voltages up to 70 V. Housed in a compact 4-pin SOT-223 package, it is ideal for surface mount technology (SMT) circuit boards demanding efficient space utilization.

This transistor demonstrates robustness across a wide operating temperature range from -55°C to 150°C, making it suitable for industrial, automotive, and high-reliability environments. Its minimum DC current gain of 150 ensures stable amplification, while a power dissipation capacity of 2 W guarantees thermal stability under operational loads.

Conforming to automotive industry standards AEC-Q100, AEC-Q101, and AEC-Q200, the FZT692BTA provides assurance of reliability and quality for automotive electronics design. The maximum transition frequency of 150 MHz facilitates usage in switching and moderately high-frequency applications.

Physical dimensions include a length of 6.7 mm, width of 3.7 mm, and height of 1.65 mm, ensuring compact integration into electronic assemblies. The 4-pin configuration simplifies connection to printed circuit boards, supporting a range of power and switching tasks in industrial, laboratory, automotive, and commercial electronics.

This transistor has an NPN polarity suitable for switching and amplification applications. Maximum DC collector current is rated at 2 amperes. Maximum collector-emitter voltage reaches up to 70 volts, providing robust voltage handling.

Power dissipation is capped at 2 watts ensuring reliable thermal performance. Miniature 4-pin SOT-223 surface mount package offers compact PCB design. Operational temperature ranges from -55°C to 150°C for industrial use.

High minimum DC current gain (hFE) of 150 guarantees efficient gain in circuits. Automotive standards compliant with AEC-Q100, AEC-Q101, and AEC-Q200 certifications. Maximum transition frequency (ft) is 150 MHz supporting moderate high-frequency applications.

Includes precise package dimensions of 6.7 mm length, 3.7 mm width, and 1.65 mm height.

This high-quality transistor is a reliable choice for designs requiring durable switching components with automotive-grade certifications. It is highly suited for industrial electronics, automotive control systems, power management modules, and other demanding applications requiring efficient amplification and switching.
