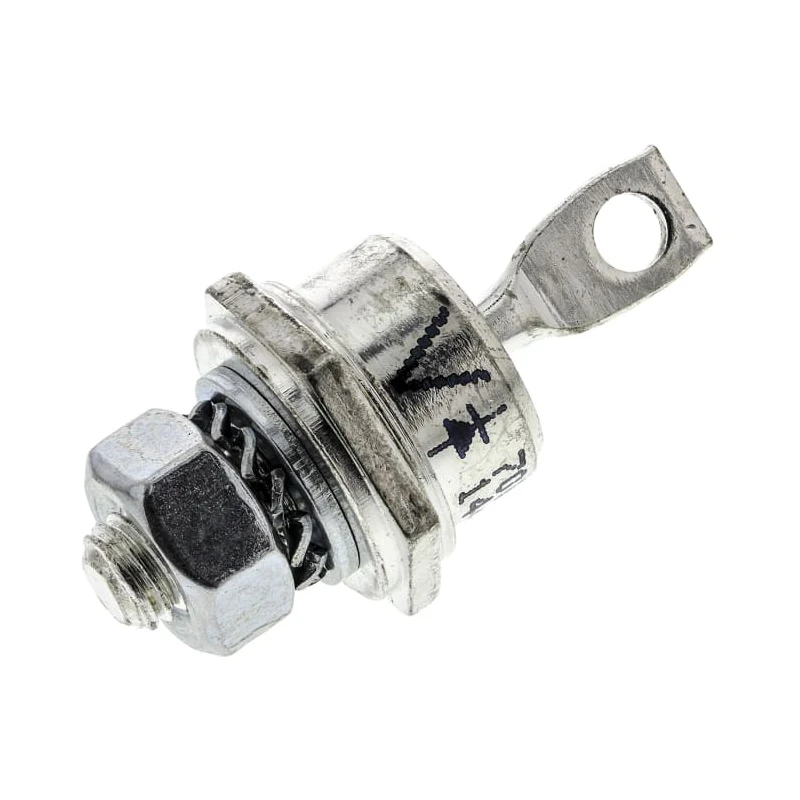

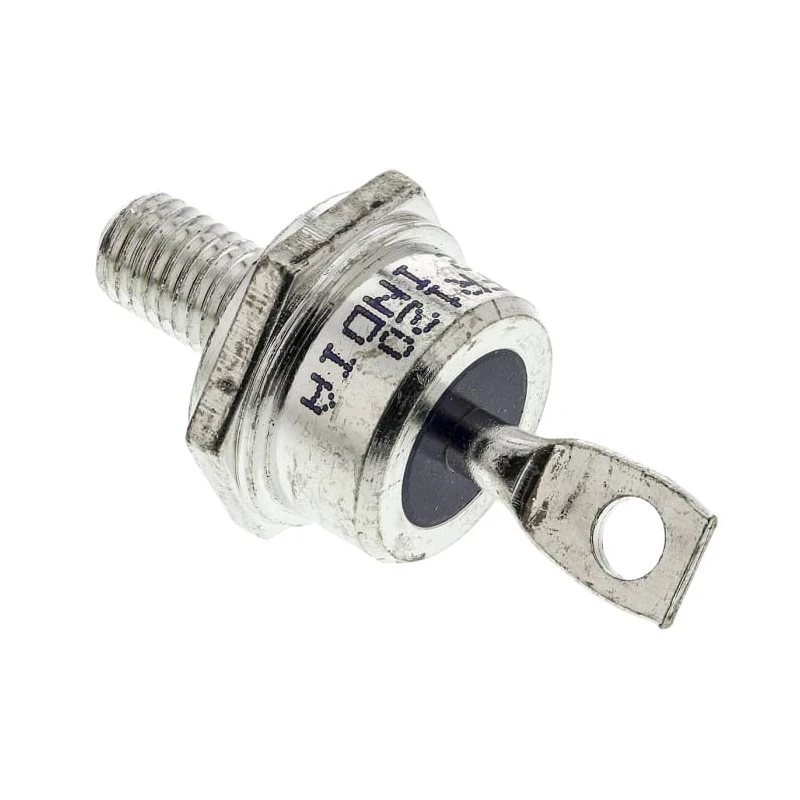

Vishay Standard Recovery Switching Diode 1200 V 70 A 2-Pin DO-203AB VS-70HFR120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.08mm |
| Model | VS-70HFR120 |
| Width | 17.4mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 1400 V 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Maximum continuous forward current of 70 A ensures robust performance.
- Peak reverse repetitive voltage of 1200 V for enhanced voltage handling.
- Stud anode diode configuration suited for screw mounting.
- Low maximum forward voltage of 1.35 V supports energy-efficient operation.
- Operates reliably within temperature range of -65°C to 180°C.
- Pin count of 2, facilitating easy installation in various circuits.
- Peak non-repetitive forward surge current of 1.3 kA to handle transient loads.
- No automotive or additional industrial standards compliance specified.
Product Description
Vishay VS-70HFR120 is a high-performance standard recovery switching diode designed for demanding electronic applications requiring reliable rectification and switching capabilities. It is rated for a maximum continuous forward current of 70 A and can withstand peak reverse repetitive voltages up to 1200 V. The diode features a stud anode configuration suitable for screw mounting, housed in the industry standard DO-203AB package.
Its maximum forward voltage of 1.35 V contributes to effective power management and reduced losses in circuits. With a wide operating temperature range from -65°C up to 180°C, this diode operates reliably under harsh environmental conditions commonly encountered in industrial, power supply, HVAC, and manufacturing applications.
The diode has a peak non-repetitive forward surge current rating of 1.3 kA, allowing it to accommodate transient overcurrents typical in power switching scenarios. The physical dimensions of 22.9 mm height, 20.08 mm length, and 17.4 mm width and diameter make it suitable for integration in various board layouts and assemblies.
This Schottky Diode & Rectifier by Vishay does not specify automotive standard certifications or additional approvals but is widely used for its versatility and high efficiency in power electronics.
Robust forward current rating up to 70 A for heavy-duty power applications. High reverse voltage rating of 1200 V supports demanding switching environments. Compact DO-203AB packaging for easy handling and mounting. Supports high peak surge currents of up to 1.3 kA for transient conditions.
Wide operational temperature range ensures reliability in diverse industrial uses. Low forward voltage contributes to energy-efficient switching solutions.
This product is ideal for use in industrial power supplies, laboratory power systems, HVAC control systems, and manufacturing equipment requiring efficient and dependable diode switching components. Browse our full range of Vishay semiconductors and Schottky diodes on EnvMart for comprehensive solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-70HFR120 diode is 70 A, ensuring robust performance in demanding applications.
This model can withstand a peak reverse repetitive voltage of 1200 V, making it suitable for high-voltage applications.
The diode features a stud anode configuration, which is designed for screw mounting in various circuits.
The maximum forward voltage of this diode is 1.35 V, which supports energy-efficient operation.
It operates reliably within a temperature range of -65°C to 180°C, suitable for harsh environmental conditions.
The diode has a height of 22.9 mm, a length of 20.08 mm, and a width of 17.4 mm, making it compact for various applications.
The peak non-repetitive forward surge current rating for this diode is 1.3 kA, allowing it to handle transient loads effectively.
The VS-70HFR120 is housed in a DO-203AB package type, which is an industry standard for easy handling and mounting.
This diode does not specify compliance with automotive or additional industrial standards.
It is widely used in industrial power supplies, laboratory power systems, HVAC control systems, and manufacturing equipment requiring efficient diode switching.
The diode features a pin count of 2, facilitating easy installation in various circuits.
The peak reverse current rating is 9 mA, indicating its performance under reverse bias conditions.
