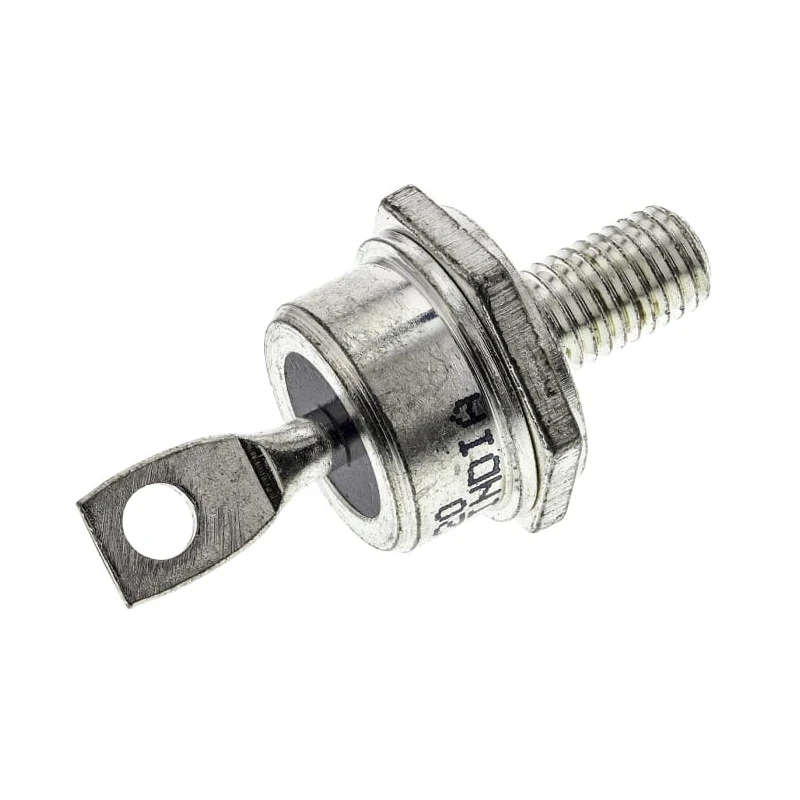

Vishay Standard Recovery Switching Diode 200 V 40 A 2-Pin DO-203AB VS-40HFR20
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-40HFR20 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-40HF |
| Maximum Operating Temperature | 190°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 595A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 400 V 40 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- The diode features a maximum continuous forward current of 40 amperes.
- It supports a peak reverse repetitive voltage of 200 volts ensuring robust blocking capability.
- Featuring a stud anode diode configuration for easy mounting.
- Maximum forward voltage drop is 1.3 volts minimizing power loss during conduction.
- The diode is rated for operation from -65°C to a high temperature of 190°C.
- With a peak non-repetitive forward surge current up to 595 amperes for transient load tolerance.
- The package dimensions include a length of 20.02 mm, width 17.35 mm, height 22.9 mm, and diameter of 17.4 mm.
- This component is designed for use in power rectification and switching applications.
Product Description
Vishay VS-40HFR20 is a Standard Recovery Switching Diode packaged in industry-standard 2-pin DO-203AB style, offering reliable and efficient performance for semiconductor applications. Rated at 200 V peak reverse voltage and 40 A continuous forward current, this diode ensures high efficiency in power rectification and switching circuits.
Its stud anode configuration and robust design allow for simple screw mounting, enhancing mechanical stability in electronic assemblies. The maximum forward voltage of 1.3 V helps reduce conduction losses, supporting energy-efficient operation.
The diode operates safely within a temperature range from -65°C to 190°C, making it suitable for demanding industrial environments. It withstands peak non-repetitive forward surge currents up to 595 A, providing protection against transient load spikes.
With exact mechanical dimensions of 20.02 mm length, 17.35 mm width, 22.9 mm height, and 17.4 mm diameter, it fits standard footprint requirements for power semiconductors. Although it lacks specific automotive certifications, it remains an excellent component choice for general semiconductor and electronic power management systems.
The diode supports a maximum continuous forward current of 40 A. Peak reverse repetitive voltage rating is 200 V. Features stud anode diode configuration. Maximum forward voltage of 1.3 V ensures efficiency. Operating temperature range of -65°C to 190°C for durability.
High peak surge current rating of 595 A for transient tolerance. Compact DO-203AB screw mount package for ease of installation. Suited for industrial electronics and power rectifier applications. Not certified for automotive applications.
This Vishay diode is ideal for industrial, laboratory, manufacturing, and electronic component applications requiring reliable standard recovery Switching Diodes. Explore more Vishay semiconductor components and related products at EnvMart to fulfill your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 40 amperes.
The peak reverse repetitive voltage rating is 200 volts.
It operates safely within a temperature range from -65°C to 190°C.
The maximum forward voltage drop is 1.3 volts.
The peak non-repetitive forward surge current rating is up to 595 amperes.
This diode features a stud anode configuration for easy screw mounting.
The diode has dimensions of 20.02 mm in length, 17.35 mm in width, and 22.9 mm in height, with a diameter of 17.4 mm.
It is packaged in a DO-203AB style, which is a standard package type for semiconductors.
This diode is not certified for automotive applications.
The diode configuration is a stud anode type.
It is designed for use in power rectification and switching applications.
The peak reverse current rating is 9 milliamperes.
