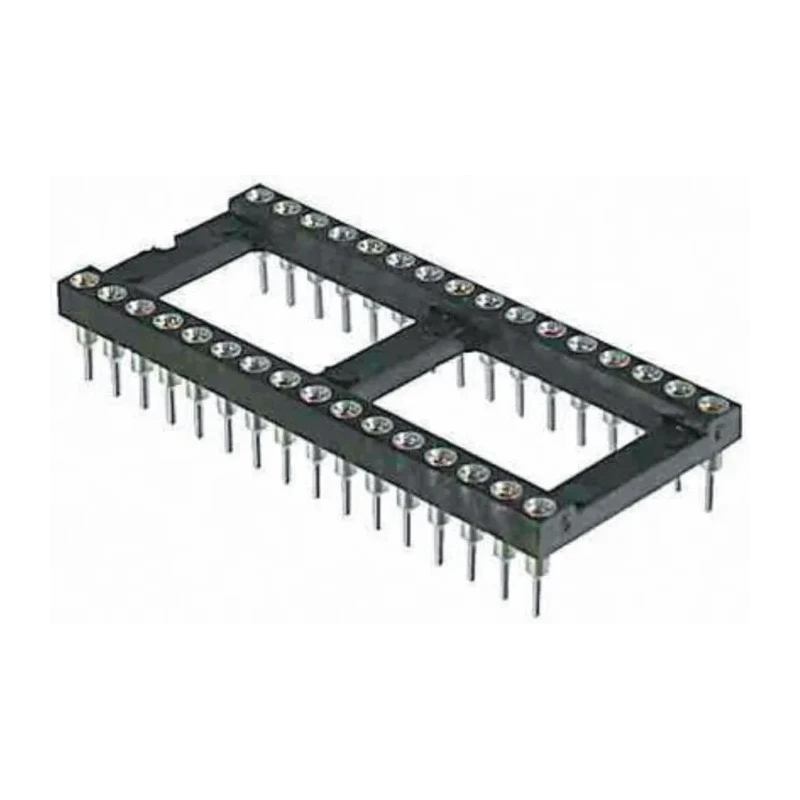

Winslow 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 3A W30528/3SFTRC

Winslow W30528/3SFTRC is a 2.54 mm pitch vertical 28 way DIL Socket suitable for through hole mounting designed to accommodate integrated circuits in a variety of electronic assemblies. It features turned pin contacts rated for 3A current carrying capacity, ensuring dependable electrical performance in industrial and commercial electronic applications.

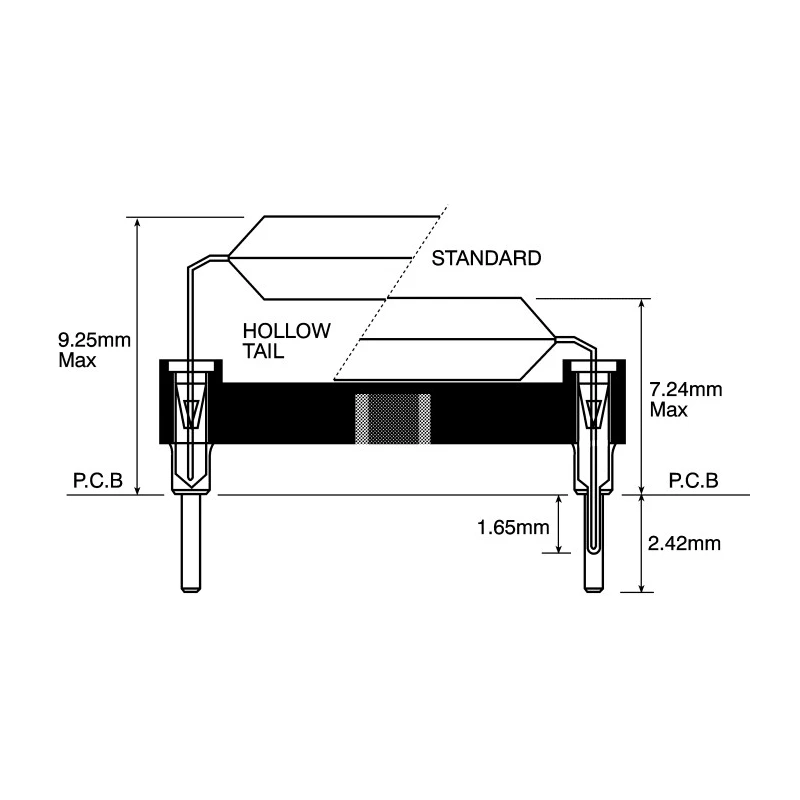

The contact pins are made from a beryllium copper alloy, plated with tin and gold which improves signal integrity and provides corrosion resistance. This open frame socket design incorporates super flat hollow tail contacts that allow the IC to sit lower, reducing overall height above the printed circuit board and improving compactness.

The socket is oriented vertically and terminates through solder connections on PCB mounting. It supports a maximum operating temperature of 150 degrees Celsius, making it suitable for typical industrial environments. The housing is constructed from polybutylene terephthalate, known for its durability and electrical insulation properties.

Physical dimensions include a length of 35.48 mm, width of 3.5 mm, depth 10.14 mm, and a row width of 7.62 mm, ensuring compatibility with standard DIL IC packages. This component is manufactured in the United Kingdom, guaranteeing high quality and consistency.

Applications include prototyping, repair, and manufacturing of electronic devices requiring a robust and low-profile connector for ICs. Its design lends itself to industrial electronic assembly, laboratory equipment, automation controls, and related technology sectors.

This socket is ideal for securely mounting dual in-line IC packages with low profile needs. It helps reduce mechanical stress during IC replacement or testing cycles. The gold plating on contacts enhances signal reliability over prolonged use.

Open frame construction assists visual inspection and facilitates soldering. Compatible with standard 2.54 mm pitch PCB designs and layouts. Explore more electronic components and connectors in the EnvMart Electronics Components category for quality and reliability.
