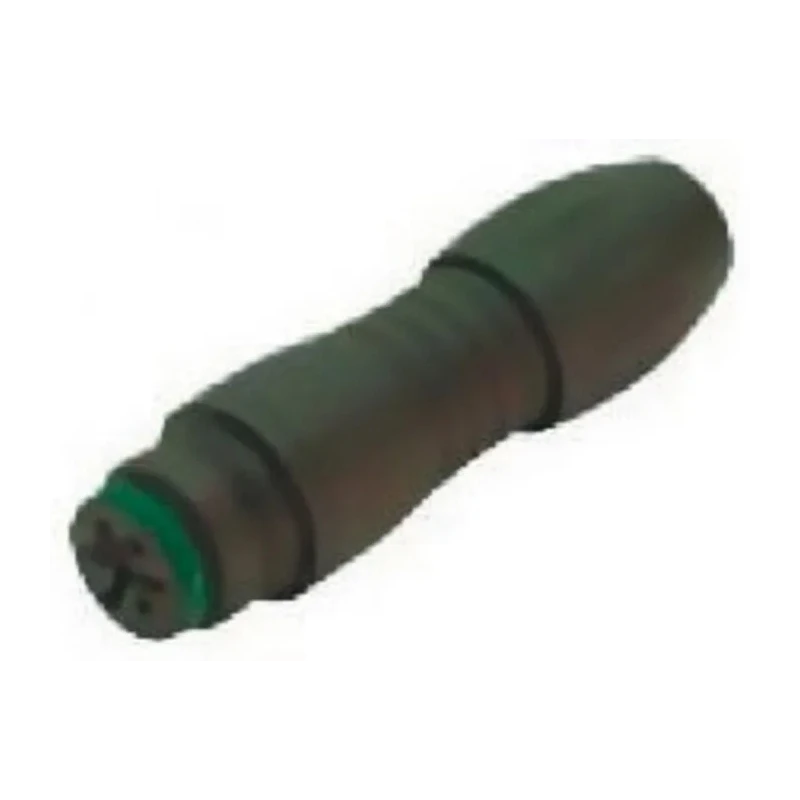

binder Circular Connector Miniature 5 Contacts Cable Socket Female IP67 720 Series 99-9114-03-05

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector Miniature 5 Contacts Cable Socket Female IP67 720 Series 99-9114-03-05

Name: binder Circular Connector Miniature 5 Contacts Cable Socket Female IP67 720 Series 99-9114-03-05
Brand: binder
SKU: 139433
Price: 11.73 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	binder
Orientation	Straight
Current	5A
IP Rating	IP67
Mount Type	Cable
Housing Material	Polyamide
Contact Material	Brass
Series	720
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Female

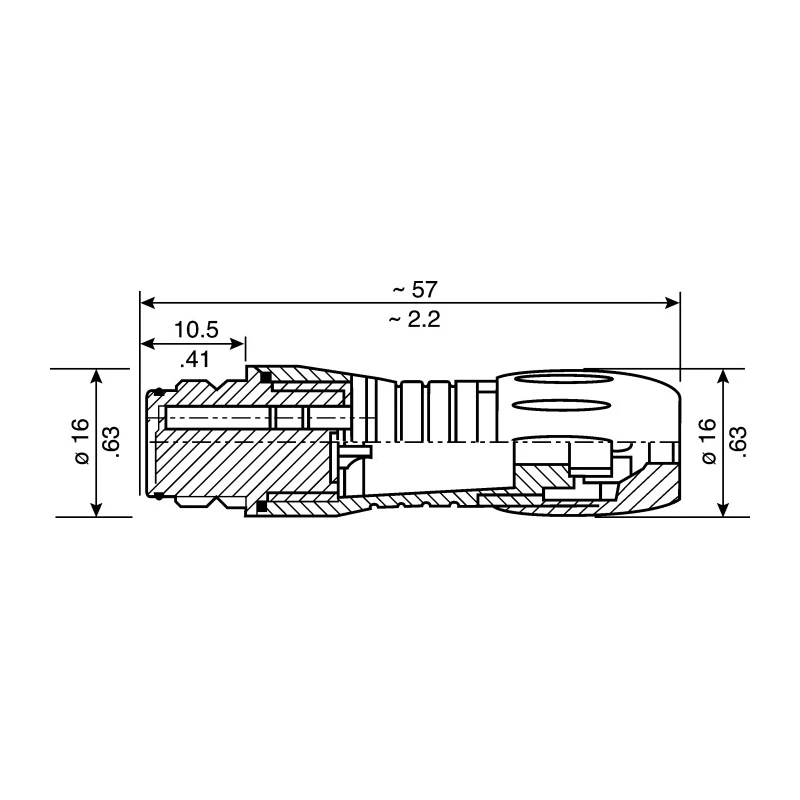

Shell Size	16 mm
Mating Type	Bayonet
Connector Size	Miniature
Plug/Socket	Socket

Key Features

The connector features a miniature size with a 16 mm shell size to fit compact cable assemblies.
It has a snap-in female socket design with bayonet mating type ensuring secure and reliable connections.
Constructed from polyamide housing with brass contacts plated in gold for corrosion resistance.
Rated for a wide operating temperature range from -40°C to 85°C suitable for harsh environments.
The connector supports solder termination type and straight orientation for ease of installation.
Series 720 offers internal strain relief and snap-in locking for durable use.
Perfect for industrial, medical, and electronic connector applications requiring IP67 ingress protection.
Manufactured in Germany meeting stringent quality standards.

Product Description

binder 99-9114-03-05 circular connector is a miniature cable socket connector designed for industrial and medical applications, offering robust IP67 ingress protection and reliable performance at 5A current and 250V voltage ratings.

This female socket connector features 5 gold-plated brass contacts housed in a durable polyamide shell of 16 mm size, ensuring corrosion resistance and electrical integrity. Its snap-in locking mechanism and bayonet mating type provide secure and quick connection and disconnection.

Operating effectively in temperatures ranging from -40°C to 85°C, it is suitable for demanding environments. The solder termination and straight orientation simplify assembly, while internal strain relief adds mechanical robustness.

The product is part of the Series 720 line of connectors, known for mid-size connectors with custom overmolded assemblies, typically used in industrial machinery, medical device equipment, and other electronics requiring sealed circular connectors.

Key features include a female contact gender with snap-in cable mount, polyamide housing material, gold contact plating, and no additional certification markings, manufactured in Germany.

The connector features a miniature size with a 16 mm shell size to fit compact cable assemblies. It has a snap-in female socket design with bayonet mating type ensuring secure and reliable connections. Constructed from polyamide housing with brass contacts plated in gold for corrosion resistance.

Rated for a wide operating temperature range from -40°C to 85°C suitable for harsh environments. The connector supports solder termination type and straight orientation for ease of installation. Series 720 offers internal strain relief and snap-in locking for durable use.

Manufactured in Germany meeting stringent quality standards.

This circular connector is ideal for applications in industrial automation, medical devices, instrumentation, and other sectors requiring robust and compact high-reliability connectors with environmental sealing.
