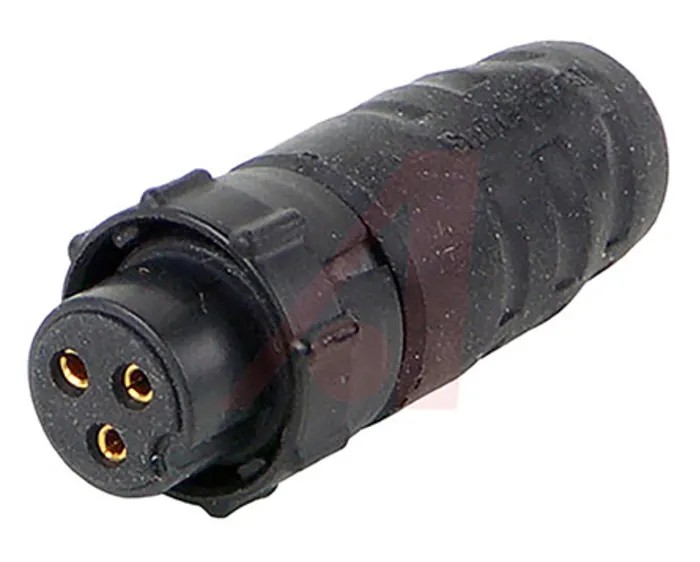

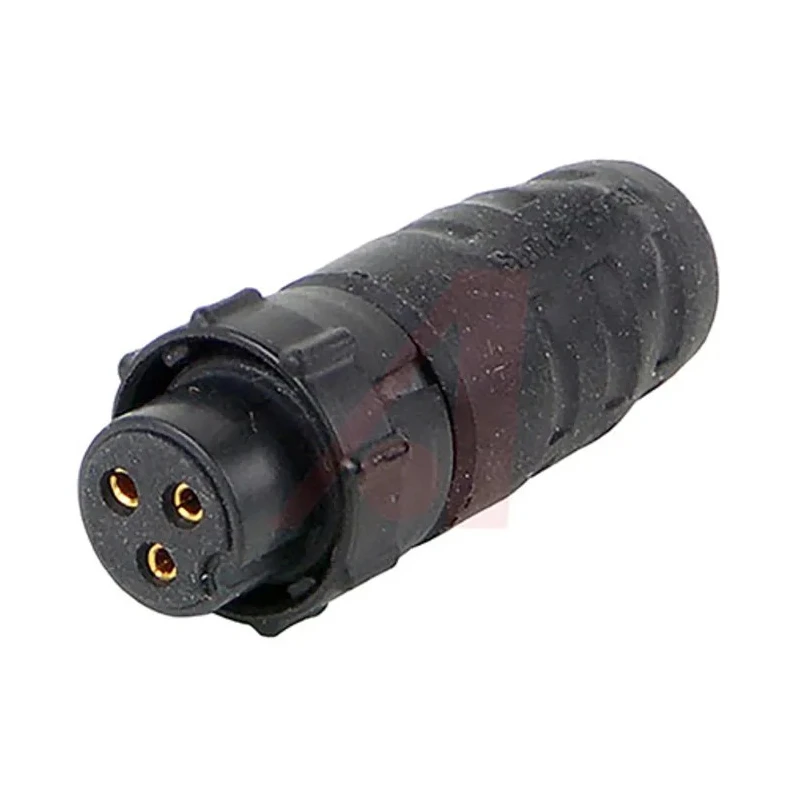

Switchcraft Circular Connector, 3 Contacts, Cable Mount, Plug Female, 13A, 250V, Bayonet Mating, IP68 IP69K Rated EN3C3F16X

Switchcraft EN3C3F16X circular connector is a premium quality 3-contact cable mount plug designed to provide a secure, weather-tight connection with robust ingress protection rated IP68 and IP69K. This standard size connector operates safely at currents up to 13A and voltages of 250V, making it well suited for demanding industrial, marine, and medical instrumentation applications.

Constructed with a durable thermoplastic housing, this plug features female contacts plated with gold over nickel on copper for reliable electrical performance and resistance to corrosion. The connector supports a broad operating temperature range from -40°C to 65°C and integrates an O-ring and gasket to ensure superior sealing for use in hostile environmental conditions.

The EN3 series includes a polarising keyway and a 1/4 turn bayonet locking mechanism to prevent misalignment and unintentional disconnection during operation. Its design includes a snap-in strain relief mechanism and thermoplastic rubber boots for strain relief on cables up to 6.7mm diameter.

This connector mates with in-line connectors but is not compatible with panel connectors, providing flexibility in cabling configurations while preventing incorrect connections. Optional protective caps are available separately for panel plugs and sockets when not in use.

This cable mount circular connector offers a bayonet mating type ensuring secure and quick connections. The connector is constructed with a thermoplastic housing and has gold over nickel plating on copper contacts for durability.

Designed for operation between -40°C to 65°C, suitable for industrial and marine environments. Integral O-ring and gasket design provide superior leakage protection and weather-tightness. The series features a polarising keyway and 1/4 turn locking mechanism to prevent misalignment and accidental disconnection.

Compatible with in-line connectors but not with panel connectors for mating. Ideal for use in process control, transportation, medical instrumentation, and industrial electronic applications.

These features make the Switchcraft EN3C3F16X circular connector ideal for industrial, laboratory, manufacturing, automotive, transportation, and marine environments requiring reliable electrical connections under harsh conditions. For more selections, explore the Industrial Circular Connectors category at EnvMart.
