Taiwan Semiconductor Bridge Rectifier 100 V 175 A 4-Pin Single GBU602

Free Delivery in India | Lowest Global Shipping Charges

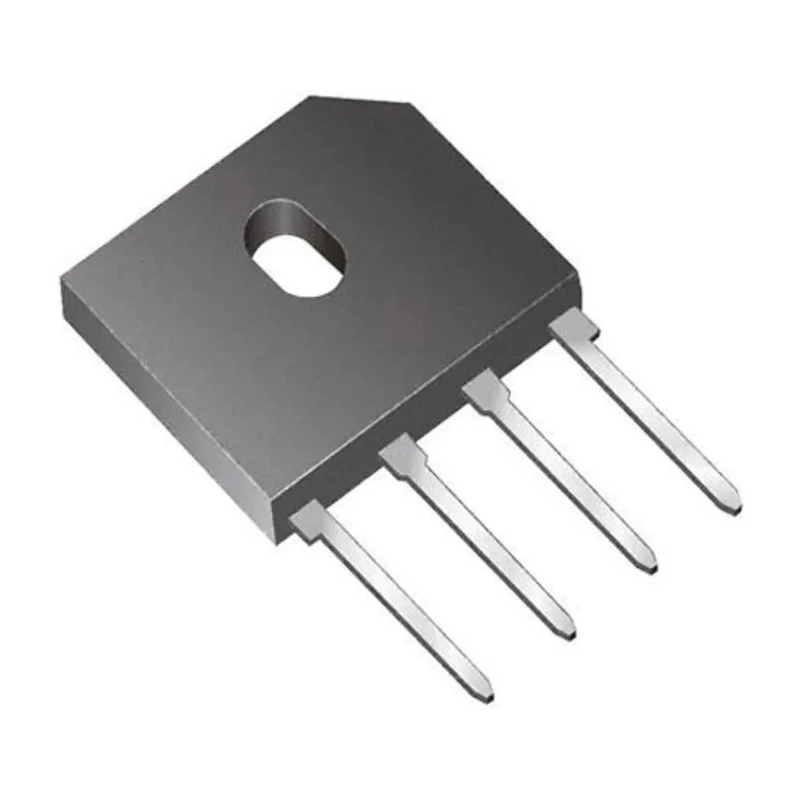

Taiwan Semiconductor Bridge Rectifier 100 V 175 A 4-Pin Single GBU602

Name: Taiwan Semiconductor Bridge Rectifier 100 V 175 A 4-Pin Single GBU602
Brand: Taiwan Semiconductor
SKU: 110289
Price: 0.81 USD
Availability: InStock



Category Bridge Rectifier Module Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	China
Brand	Taiwan Semiconductor
Height	18.8mm
Length	22.3mm
Model	GBU602
Width	3.56mm
Mount Type	Through Hole
Series	GBU6
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	175A
Forward Current If	6A
Peak Forward Voltage Vf	1.1V

Key Features

Operates at a peak reverse repetitive voltage of 100 volts.
Supports a peak non-repetitive forward surge current of 175 amperes.
Features 4 pins with single-phase configuration for effective circuit integration.
Capable of continuous forward current operation up to 6 amperes.
Operates reliably within a temperature range from -55°C to 150°C.
Compact GBUN package type with dimensions 22.3mm length, 18.8mm height, and 3.56mm width.
Complies with AEC-Q101 automotive standards ensuring durability in automotive applications.
Through hole mount type suitable for printed circuit board assembly.

Product Description

Taiwan Semiconductor GBU602 Bridge Rectifier 100 V 175 A 4-Pin Single is a robust diode assembly engineered to convert alternating current (AC) into direct current (DC) efficiently. Designed with a high peak reverse repetitive voltage of 100 volts and a peak surge current of 175 amperes, it is suitable for demanding industrial and automotive electronics applications.

The device features a four-pin single-phase configuration housed in a GBUN package ensuring compatibility with standard PCB through hole mounting techniques. Its forward current capacity of 6 amperes and operating temperature range from -55°C to 150°C make it reliable in diverse environmental conditions.

GBU602 operates with a low peak forward voltage of 1.1 volts and minimal reverse current leakage, enhancing energy efficiency and reducing thermal stress. The high case dielectric strength of 1500V RMS adds to its robust performance characteristics.

This bridge rectifier is compliant with AEC-Q101 automotive standards, reflecting its quality and suitability for automotive system electronics. Its compact dimensions allow for space-saving circuit designs in manufacturing, power electronics, and appliance control.

Designed primarily for industrial, automotive, and electronics manufacturing applications, the GBU602 is ideal for converting AC to DC power reliably in control circuits, power supplies, and motor drives.

Operates at a peak reverse repetitive voltage of 100 volts. Supports a peak non-repetitive forward surge current of 175 amperes. Features 4 pins with single-phase configuration for effective circuit integration. Capable of continuous forward current operation up to 6 amperes.

Operates reliably within a temperature range from -55°C to 150°C. Compact GBUN package with dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width. Complies with AEC-Q101 automotive standards ensuring durability in automotive applications.

Through hole mount type suitable for printed circuit board assembly. Explore more semiconductor and Bridge Rectifier Modules on EnvMart for your industrial and automotive electronics needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The GBU602 operates at a peak reverse repetitive voltage of 100 volts.

This model can handle a continuous forward current of up to 6 amperes.

It supports a peak non-repetitive forward surge current of 175 amperes.

The GBU602 has dimensions of 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.

It operates reliably within a temperature range from -55°C to 150°C.

This model features a through hole mount type suitable for printed circuit board assembly.

The GBU602 features 4 pins with a single-phase configuration.

It complies with AEC-Q101 automotive standards, ensuring its suitability for automotive applications.

The GBU602 operates with a low peak forward voltage of 1.1 volts.

The peak reverse current for this model is rated at 500 microamperes (μA).

The GBU602 is housed in a compact GBUN package type.

This bridge rectifier is designed for industrial, automotive, and electronics manufacturing applications, particularly for converting AC to DC power in control circuits and power supplies.
