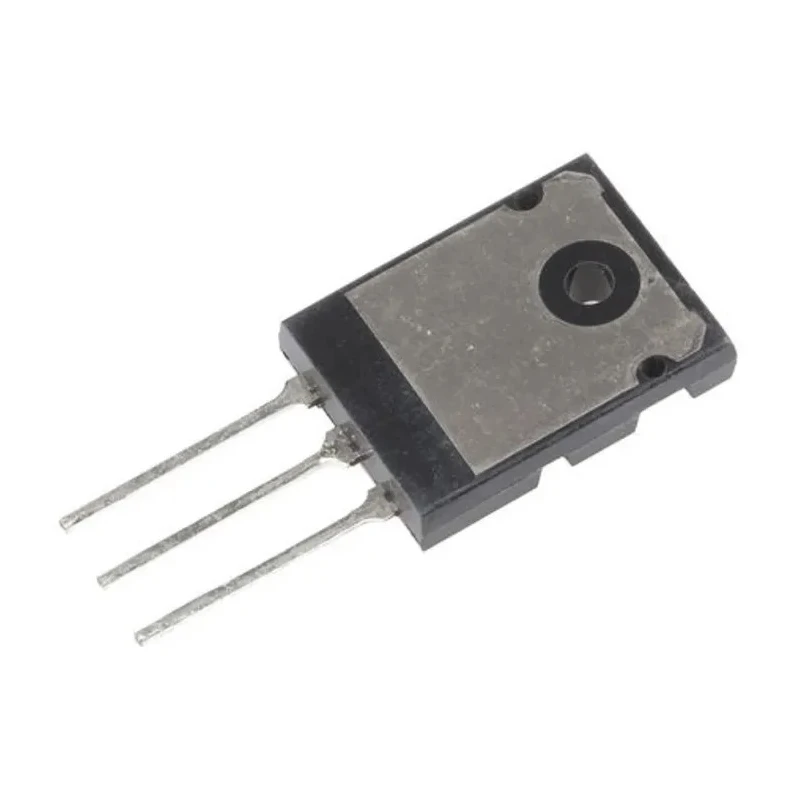

Toshiba NPN Power Transistor 15A, 230V, 150W TO-3PL Package 3-Pin 2SC5200-O(S1,F,S)

The Toshiba 2SC5200-O(S1,F,S) is a high-power NPN bipolar junction transistor designed for use in power amplification and switching circuits. This device features a maximum DC collector current of 15 amps and can withstand a collector-emitter voltage of 230 volts. The transistor package is a robust TO-3PL with through-hole mount type, providing stable mechanical and thermal performance for demanding applications.

With a power dissipation rating of 150 watts, it is suited for industrial, commercial, and laboratory use cases requiring high power switching and amplification at moderate frequencies. The transistor has a gain (hFE) minimum of 35, ensuring sufficient amplification characteristics for various electronic circuits.

Operating temperatures up to 150°C allow the transistor to function reliably in harsh environmental conditions. It has a maximum transition frequency (ft) of 30 MHz, making it compatible with diverse signal processing tasks. The device includes three pins for connectivity and assembly on PCBs.

Dimensionally, the transistor measures 46 mm in height, 20.5 mm in length, and 5.2 mm in width which assists in heat dissipation and installation considerations. It is manufactured in China and is supplied as a new product without conforming to automotive standards or additional certifications.

This transistor is ideal for power amplification in audio and industrial circuits. Its durable TO-3PL package ensures efficient heat management during high power operation. The device's high current capacity supports robust switching applications.

Through-hole mounting facilitates easy PCB assembly and replacement. It meets industry needs for reliable high-voltage, high-power components. Explore our extensive range of electronic components and Bipolar Transistors at EnvMart for reliable industrial and electronics applications.
