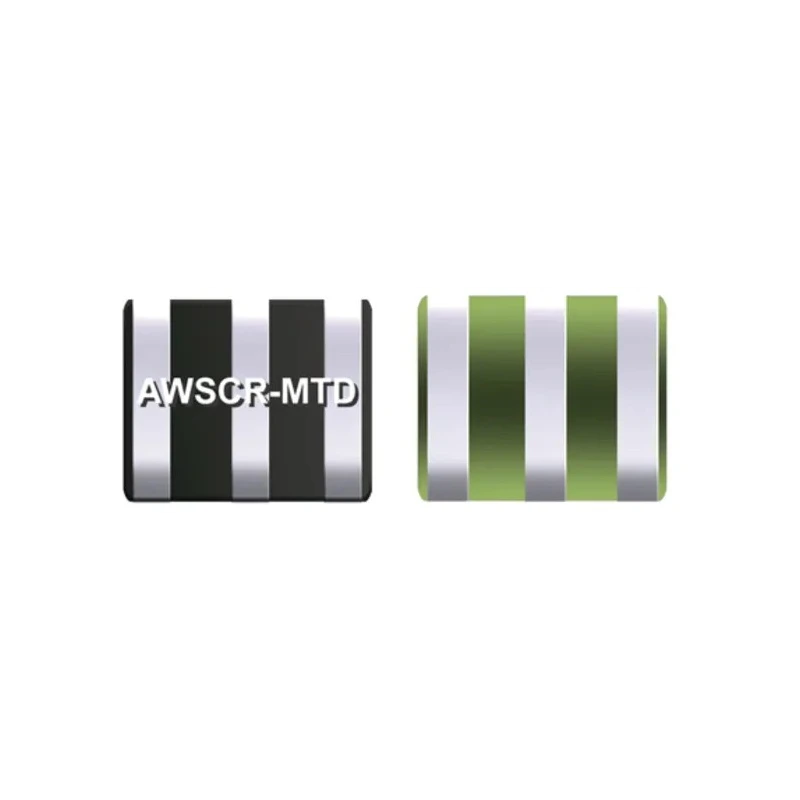

Abracon Ceramic Resonator Surface Mount 16 MHz 22 pF 3-Pin Tape & Reel AWSCR-16.00MTD-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 4.7mm |
| Model | AWSCR-16.00MTD-T |
| Packaging | Tape & Reel |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | AWSCR-MTD |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 22pF |
| Resonance Frequency | 16MHz |
| Resonance Resistance | 40Ω |
Key Features
- Low-profile design with 1.5 mm height ideal for thin equipment.
- Precise frequency tolerance and stability of ±0.5% for reliable performance.
- Glass-sealed package ensures high reliability and operation at high temperatures.
- IR reflow solderable and supplied in 3-pin tape and reel packaging for automated assembly.
- Suitable for modems, communication devices, test equipment, and wireless applications.
- Operating temperature range from -40°C to 85°C to withstand harsh environments.
- Resonance resistance of 40 ohms supporting stable oscillation.
- Compliance with RoHS environmental standards.
Product Description
The Abracon AWSCR-16.00MTD-T is a high-reliability ceramic resonator designed for surface mount technology with a resonance frequency of 16 MHz and load capacitance of 22 pF. It features a compact glass-sealed package that ensures durability and consistent performance in high-temperature environments.
This resonator has a tight frequency tolerance and stability specification of ±0.5%, making it ideal for precision timing applications in telecommunications, modems, wireless systems, and various test equipment. Its small form factor of 4.7 mm length, 4.1 mm width, and 1.5 mm height suits high-density circuit board layouts.
Designed for ease of manufacturing, the device comes in a 3-pin tape & reel packaging format compatible with IR reflow soldering processes, enhancing assembly efficiency. The operating temperature range from -40°C to 85°C allows it to perform reliably under industrial and commercial conditions.
Low-profile design with 1.5 mm height ideal for thin equipment. Precise frequency tolerance and stability of ±0.5% for reliable performance. Glass-sealed package ensures high reliability and operation at high temperatures.
IR reflow capable packaging for automated surface mount assembly. Applications include modems, communication devices, wireless and test equipment. Operating temperature from -40°C to 85°C for wide industrial applicability.
Compact dimensions of 4.7 mm length, 4.1 mm width. Resonance resistance of 40 ohms supporting oscillator stability. RoHS compliant materials and manufacturing process. This ceramic resonator is manufactured in China and meets RoHS compliance, making it suitable for environmental safety requirements in electronics manufacturing.
Choose Abracon ceramic resonators for high-quality passive components vital in oscillation and timing circuits across industrial, electronics, communication, and testing applications. Browse the Electronics Components category at EnvMart for a broad selection of Ceramic Resonators and oscillators.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 16 MHz, making it suitable for precision timing applications.
This unit has a length of 4.7 mm, a width of 4.1 mm, and a height of 1.5 mm, which allows for high-density circuit board layouts.
The load capacitance for this ceramic resonator is 22 pF, which is important for its operation in various applications.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model is supplied in a 3-pin tape & reel packaging format, which is compatible with IR reflow soldering processes for automated assembly.
The resonance resistance is 40 ohms, which supports stable oscillation in its applications.
Yes, it is compliant with RoHS environmental standards, ensuring it meets safety requirements for electronics manufacturing.
This model is designed for surface mount technology, making it suitable for compact electronic designs.
It is suitable for use in modems, communication devices, wireless systems, and various test equipment.
This ceramic resonator is manufactured by Abracon, a known brand in electronic components.
The AWSCR-16.00MTD-T belongs to the AWSCR-MTD series of ceramic resonators.
This ceramic resonator is manufactured in China, ensuring compliance with international standards.
