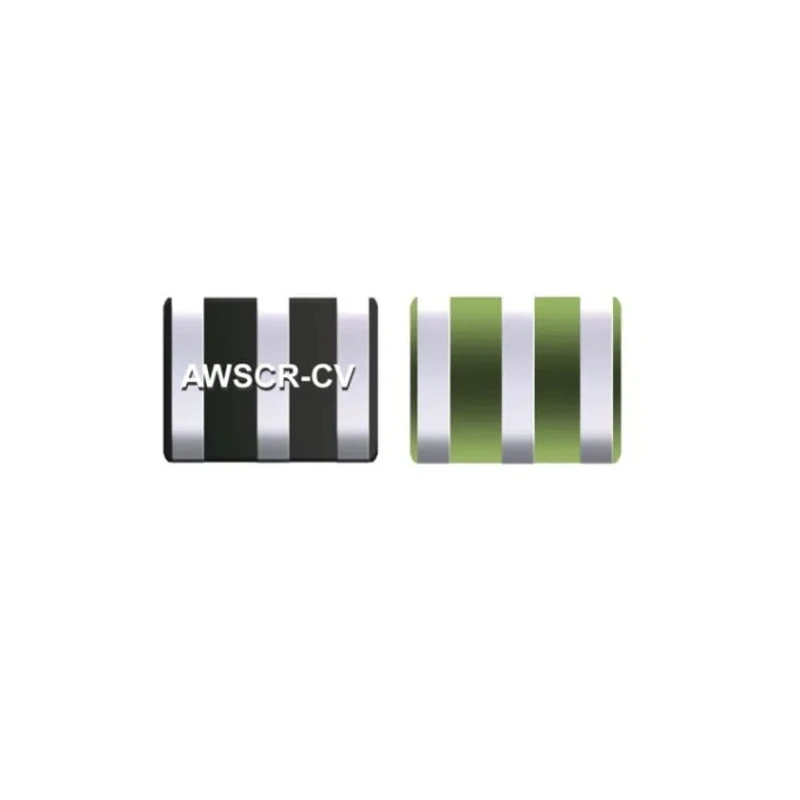

Abracon 20 MHz Ceramic Resonator, 22 pF, 3-Pin Surface Mount, 4x3.1x1 mm AWSCR-20.00CV-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 4mm |
| Model | AWSCR-20.00CV-T |
| Packaging | Reel |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | AWSCR-CV |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 22pF |
| Resonance Frequency | 20MHz |
| Resonance Resistance | 40Ω |
Key Features
- Operates at a resonance frequency of 20 MHz for precise timing control.
- Features a built-in load capacitance of 22 pF for enhanced stability.
- Three-pin surface mount package ensures easy PCB integration.
- Compact body dimensions of 4 mm x 3.1 mm x 1 mm enable space-saving layouts.
- Supports automotive standard applications with RoHS compliance.
- Maximum operating temperature up to 85°C for harsh environments.
- Minimum operating temperature of -25°C allows reliable performance in cold conditions.
- Ideal for use in microprocessor clocks, remote controls, consumer electronics, and mobile devices.
Product Description
Abracon AWSCR-20.00CV-T is an industrial-grade ceramic resonator, offering 20 MHz resonance frequency and built-in load capacitance of 22 pF. Designed for high-frequency signal stability, it suits a variety of electronics including microprocessors, remote controls, and mobile devices.
With a compact 3-pin surface mount package measuring 4 mm in length, 3.1 mm in width, and 1 mm in height, this resonator easily fits into space-constrained PCB layouts. Its robust build ensures quality signal performance and high reliability across demanding electronic environments.
The device boasts a frequency tolerance of ±0.5% and frequency ageing stability from -0.3% to +0.3%, maintaining operational accuracy over time. Its resonance resistance is rated at 40 Ω for minimized signal loss, and it supports IR reflow soldering for streamlined manufacturing processes.
Temperature resilience ranges from -25°C to 85°C, allowing usage in applications exposed to varying environmental conditions. The AWSCR series is RoHS and RoHS II compliant, aligning with global industry standards for hazardous substance control.
Operates at a resonance frequency of 20 MHz for precise timing control. Features a built-in load capacitance of 22 pF for enhanced stability. Three-pin surface mount package ensures easy PCB integration. Compact body dimensions of 4 mm x 3.1 mm x 1 mm enable space-saving layouts.
Supports automotive standard applications with RoHS compliance. Frequency tolerance maintained at ±0.5% for accurate results. Maximum operating temperature up to 85°C for harsh environments. Minimum operating temperature of -25°C allows reliable performance in cold conditions.
Ideal for use in microprocessor clocks, remote controls, consumer electronics, and mobile devices.
Common industrial and commercial applications include timing elements for microprocessor circuits, frequency generation in wireless systems, consumer electronics, and signal conditioning in control boards. The AWSCR-20.00CV-T ceramic resonator is suitable for laboratory instrumentation, manufacturing control boards, and other electronic signal applications requiring stability and reliability.
Explore more Abracon signal control products in the Ceramic Resonator category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 20 MHz, which is designed for precise timing control.
It features a built-in load capacitance of 22 pF, enhancing its stability during operation.
The dimensions of this unit are 4 mm in length, 3.1 mm in width, and 1 mm in height, making it suitable for space-saving layouts.
The maximum operating temperature is 85°C, allowing it to function in harsh environments.
It has a minimum operating temperature of -25°C, ensuring reliable performance in cold conditions.
The resonance resistance is rated at 40 Ω, which helps minimize signal loss.
It comes in a three-pin surface mount package, which facilitates easy integration into PCBs.
Yes, it is RoHS and RoHS II compliant, meeting global standards for hazardous substance control.
This model is ideal for use in microprocessor clocks, remote controls, consumer electronics, and mobile devices.
The frequency tolerance is maintained at ±0.5%, ensuring operational accuracy over time.
It supports IR reflow soldering, which streamlines the manufacturing process for electronic assemblies.
