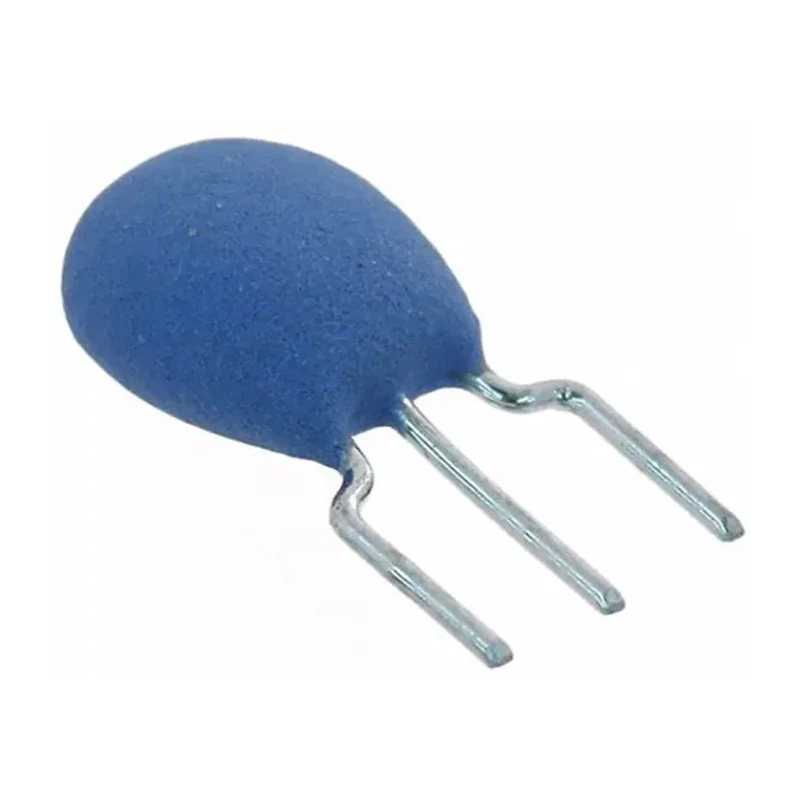

Murata Ceramic Resonator 16 MHz 3 Rd Overtone 15 pF Load Capacitance 3-Pin Through Hole Bulk CSTLS16M0X53-B0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 6.5mm |
| Length | 5.5mm |
| Model | CSTLS16M0X53-B0 |
| Packaging | Bulk |
| Width | 3.5mm |
| Mount Type | Through Hole |
| Series | CSTLS |
| Maximum Operating Temperature | 80°C |
| Package Type | Bulk |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 16MHz |
| Resonance Resistance | 50Ω |
| Mode of Oscillation | 3 Rd Overtone |
Key Features
- Operates at a resonance frequency of 16 MHz with ±0.5% frequency tolerance.
- Features 3rd overtone mode oscillation for enhanced frequency stability.
- Built-in load capacitance of 15 pF eliminates need for external capacitors.
- Resonance resistance is 50 ohms ensuring efficient oscillation performance.
- Designed for through-hole mounting with 3 pins for reliable mechanical connection.
- Package type is bulk, facilitating efficient handling and assembly.
- Temperature operating range from -20°C to 80°C supporting industrial applications.
- Complies with RoHS and REACH standards ensuring environmental safety.
Product Description
Murata CSTLS16M0X53-B0 ceramic resonator offers a precise 16 MHz resonance frequency with 3rd overtone mode oscillation and integrated 15 pF load capacitance. This design eliminates the need for external load capacitors, enabling high-density mounting and cost reduction in electronic circuit design.
The through hole mounting with a 3-pin configuration provides robust mechanical connections suitable for bulk packaging and automated assembly processes. With resonance resistance of 50 ohms and a frequency tolerance of ±0.5%, it ensures reliable and stable oscillation in a wide temperature range from -20°C to 80°C, making it suitable for industrial and consumer electronics.
The compact package measures 6.5 mm in height, 5.5 mm in length, and 3.5 mm in width, facilitating space-efficient PCB designs. Compliance with RoHS and REACH standards assures environmental safety and regulatory conformity.
This ceramic resonator is ideal for use in clock oscillators for microprocessors and microcomputers, automated office equipment, remote control units, and Dual-Tone Multi-Frequency (DTMF) generators, fitting a broad range of industrial and commercial electronic applications.
Operates reliably with built-in capacitance reducing component count. Compact and lightweight design tailored for efficient PCB integration. Stable frequency performance maintained across industrial temperature ranges. Cost-effective solution for oscillation circuits without external capacitors.
Bulk packaging supports high-volume manufacturing needs. Explore more Murata Ceramic Resonators and related electronic components on EnvMart for your precision oscillator requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 16 MHz.
It has a built-in load capacitance of 15 pF, which eliminates the need for external capacitors.
The operating temperature range is from -20°C to 80°C, making it suitable for various industrial applications.
The resonance resistance is 50 ohms, ensuring efficient oscillation performance.
It is designed for through-hole mounting with a 3-pin configuration for reliable mechanical connection.
The dimensions are 6.5 mm in height, 5.5 mm in length, and 3.5 mm in width.
It operates in the 3rd overtone mode, which enhances frequency stability.
This resonator is packaged in bulk, facilitating efficient handling and assembly.
It complies with RoHS and REACH standards, ensuring environmental safety.
It is ideal for use in clock oscillators for microprocessors, automated office equipment, and remote control units.
The series designation for this model is CSTLS.
The built-in load capacitance reduces the component count and allows for high-density mounting in electronic circuit designs.
