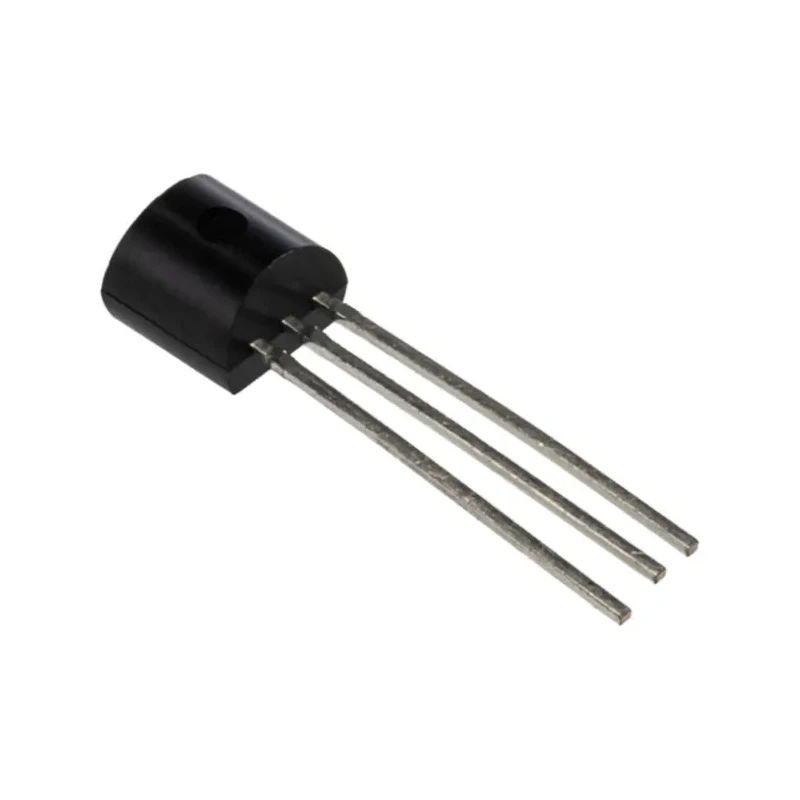

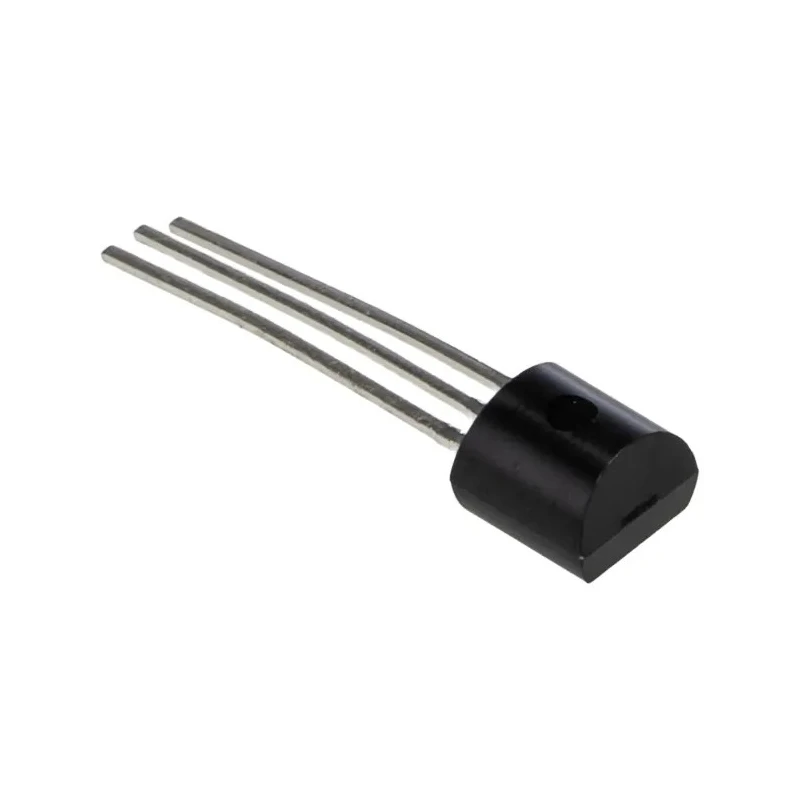

Texas Instruments Voltage Regulator 0.75W 35V TO-92 3-Pin LM78L15ACZ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM78L15ACZ/NOPB |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | LM78Lxx |
| Power Rating | 0.75W |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3mA |
| Minimum Input Voltage | 16.7V |
| Pin Count | 3 |
| Output current 1A | LM78xx Series |
| Output current 0.1A | LM78Lxx Series |
| Output current 0.5A | LM78Mxx Series |
Key Features
- Features three pins and a TO-92 package type suitable for through-hole mounting.
- Operates with a maximum input voltage of 35V and a minimum input voltage of 16.7V.
- Includes internal thermal shutdown and current limiting features for protection.
- Maintains a quiescent current of 3mA for efficient power operation.
- Compact dimensions of 5.2mm length, 5.2mm height, and 4.19mm width.
- Capable of operating up to 125°C for industrial-grade applications.
- Part of the LM78Lxx series, supporting 0.1A output current.
- Does not require external components for voltage regulation.
Product Description
Texas Instruments LM78L15ACZ/NOPB Voltage Regulator 0.75W 35V TO-92 3-Pin is a linear, fixed positive voltage regulator designed for reliable voltage regulation in electronic circuits.
This device supports a power rating of 0.75 watts and operates within an input voltage range of 16.7V to 35V, making it suitable for diverse electronic applications requiring stable voltage outputs.
The regulator is housed in a compact TO-92 package with three pins, which facilitates easy through-hole mounting on printed circuit boards.
Key internal features include thermal shutdown protection, current limiting, and output transistor safe-area compensation, ensuring robustness against overheating and short circuits.
It maintains a low quiescent current of 3mA, allowing efficient power use in sensitive electronic systems. The device can operate at a maximum temperature of 125 degrees Celsius, suitable for demanding industrial and commercial environments.
The LM78L15ACZ/NOPB belongs to the LM78Lxx series with an output current rating of 0.1A, making it ideal for local on-card voltage regulation, power supplies, and power distribution systems requiring fixed voltage outputs.
Features three pins and a TO-92 package type suitable for through-hole mounting. Operates with a maximum input voltage of 35V and a minimum input voltage of 16.7V. Includes internal thermal shutdown and current limiting features for protection.
Maintains a quiescent current of 3mA for efficient power operation. Compact dimensions of 5.2mm length, 5.2mm height, and 4.19mm width. Capable of operating up to 125°C for industrial-grade applications. Part of the LM78Lxx series, supporting 0.1A output current.
Does not require external components for voltage regulation. Designed for use in electronics, industrial machines, power supplies, and other fixed voltage applications.
This voltage regulator from Texas Instruments is widely used in electronic circuits, power distribution, and embedded systems requiring stable and fixed DC voltage outputs. Its robust protections and reliable performance make it suitable for industrial, laboratory, manufacturing, and HVAC applications.
Explore more high-quality electronic components and Voltage Regulators in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
This voltage regulator supports an output current of 0.1A.
It maintains a quiescent current of 3mA for efficient power operation.
The compact dimensions are 5.2mm in length, 5.2mm in height, and 4.19mm in width.
It can operate at a maximum temperature of 125°C, suitable for industrial applications.
This model is housed in a TO-92 package type, which is suitable for through-hole mounting.
No, it does not require external components for voltage regulation.
The minimum input voltage is 16.7V.
It belongs to the LM78Lxx series.
This device has a positive polarity.
It includes internal thermal shutdown and current limiting features for protection.
This voltage regulator is commonly used in electronics, industrial machines, and power supplies requiring stable voltage outputs.
