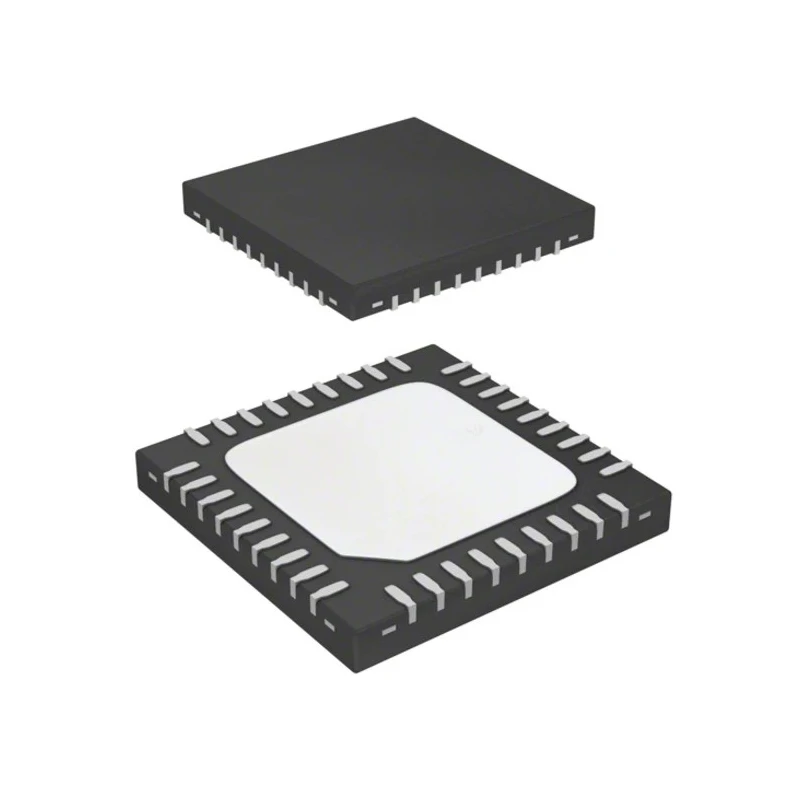

Toshiba Brushless 3-Phase Motor Driver IC 36-Pin WQFN TC78B016FTG(Z,EL)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 0.8mm |
| Length | 5mm |
| Model | TC78B016FTG(Z,EL) |
| Width | 5mm |
| Motor Type | Brushless |
| Mount Type | Surface |
| Series | TC78B016FTG |
| Configuration | 3 Phase |
| Output Current | 3A |
| Maximum Operating Temperature | 105°C |
| Package Type | WQFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 36 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 6V |
| Supply Current | 8.5mA |
| Selectable lead angle control function | Auto lead angle function (proportion to frequency /phase control) and External lead angle control (32 steps correspond to 0° to 58°) |
| Current limit circuit | external sensing resistor |
Key Features
- Supports 3-phase brushless motor configurations with surface mount.
- Operates from 6V to 30V supply voltage with 3 A output current.
- Adjustable PWM control for motor speed and lead angle.
- Includes brake, lock detection, restart, and rotation frequency signals.
- Equipped with overcurrent, thermal shutdown, and under voltage lockout protections.
- Compact 5mm x 5mm x 0.8mm WQFN package with 36 pins for efficient PCB layout.
- Operating temperature range from -40°C to 105°C suitable for industrial environments.
- Low supply current consumption of 8.5mA enhances power efficiency.
Product Description
Toshiba TC78B016FTG(Z,EL) is a high-performance brushless motor driver IC designed for three-phase sine-wave PWM control, enabling precise speed regulation in brushless motors.
This surface mount device comes in a compact 36-pin WQFN package measuring 5 mm by 5 mm with a height of 0.8 mm, suitable for space-constrained industrial and commercial electronics.
The IC supports a wide supply voltage range of 6 V to 30 V and can deliver a maximum output current of 3 A, making it reliable for various motor applications including industrial automation, robotics, HVAC systems, and power management.
Advanced features include selectable PWM frequency, adjustable minimum duty cycle, and configurable lead angle control with both automatic and external lead angle adjustments, optimizing motor efficiency and performance.
Safety and operational reliability are ensured by integrated circuits such as overcurrent detection (ISD), thermal shutdown (TSD), under voltage lockout (UVLO), and current limiting with external sensing resistor.
The device provides functional terminals for brake, lock detection, a restart function, and outputs signals such as rotation frequency (FG_OUT) and lock detection (LD_OUT) for comprehensive motor status monitoring.
Its operating temperature range from -40°C to 105°C meets demanding industrial standards guaranteeing robust performance under harsh conditions. Ideal for industrial manufacturing, electronics assembly, and motor control system designs, this IC facilitates efficient and adaptive brushless motor control.
Supports 3-phase brushless motor control configurations. Wide operating voltage from 6 V to 30 V with 3 A output current capacity. Compact 36-pin WQFN surface mount package measuring 5x5x0.8 mm. Integrated safety features include thermal shutdown and overcurrent protection.
Configurable PWM duty cycles and selectable lead angle control. Brake and lock detection functions enhance motor safety and diagnostics. Operating temperature range suitable for industrial applications. Low supply current improves energy efficiency in embedded systems.
Discover more semiconductor and power management ICs in the Motor Driver IC category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver a maximum output current of 3 A, making it suitable for various motor applications.
It operates within a supply voltage range of 6 V to 30 V, allowing for flexibility in different applications.
The compact package measures 5 mm in length, 5 mm in width, and has a height of 0.8 mm, making it suitable for space-constrained designs.
It supports configurations for 3-phase brushless motors, allowing for precise motor control.
The IC includes overcurrent detection, thermal shutdown, and under voltage lockout protections to ensure operational reliability.
This model operates effectively within a temperature range of -40°C to 105°C, suitable for industrial environments.
It allows for motor speed regulation and lead angle adjustments, optimizing motor efficiency through selectable PWM frequency and duty cycles.
It has a low supply current consumption of 8.5 mA, enhancing power efficiency in embedded systems.
It includes brake and lock detection functions, as well as outputs for rotation frequency and lock detection signals for comprehensive monitoring.
This model features a total of 36 pins, facilitating efficient PCB layout for various applications.
It is designed for surface mounting, which is ideal for compact electronic assemblies.
Yes, the Toshiba TC78B016FTG(Z,EL) is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
