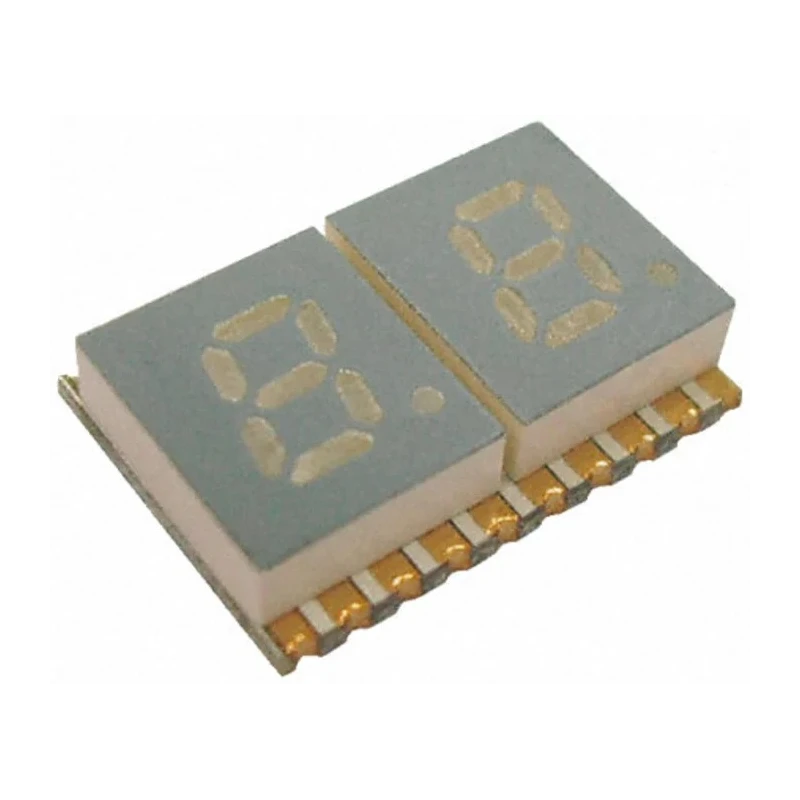

Kingbright 2-Digit 7 Segment Green LED Display Anode 12mcd Right Side Decimal Orientation 5.1mm KCDA02-123
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDA02-123 |
| Mount Type | Surface |
| Series | KCDA02 |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 14.1mm |
| External Depth | 10mm |
| External Height | 3mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 12mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 3.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Dual-digit 7 segment green LED display with an anode common connection.
- Character height of 5.1 mm and width of 3.2 mm for clear representation.
- Luminous intensity of 12 millicandela ensures excellent visibility.
- Surface mount type for easy PCB assembly and robust mechanical stability.
- Operates reliably from -40°C to 85°C temperature range.
- Forward voltage of 2.1 V and forward current of 30 mA typical.
- Power dissipation rating is 75 mW for energy efficient operation.
- Grey face with white segments provides high contrast appearance.
Product Description
Kingbright KCDA02-123 is a dual-digit 7 segment LED display module featuring green LEDs with an anode common connection. This surface mount display ensures excellent character visibility with a character height of 5.1 mm and width of 3.2 mm, providing clear numerical indication for electronic applications.
The luminous intensity of 12 millicandela delivers high visibility even in varying lighting conditions, making it ideal for use in industrial and commercial electronic displays. With a robust temperature range from -40°C to 85°C, it supports reliable operation in harsh environments.
This display integrates easily onto printed circuit boards due to its surface mount design and adheres to industry standards for dimensions - external measurements are 14.1 mm in width, 3 mm in height, and 10 mm in depth. The grey face with white segment style enhances readability and aesthetic appeal.
The module operates at a forward voltage of 2.1 V with a forward current of 30 mA and a power dissipation of 75 mW, making it energy efficient and suitable for long-term use. The right side decimal orientation adds flexibility for applications requiring decimal point precision.
Applications for the KCDA02-123 include industrial electronic panels, instrumentation displays, measurement devices, and embedded systems requiring clear numeric output. Its RoHS compliance and categorization for luminous intensity ensure adherence to environmental and quality standards.
Dual-digit 7 segment green LED display with anode common connection. 5.1 mm character height and 3.2 mm width for clear numeric display. 12 millicandela luminous intensity for strong visibility. Surface mount package type for easy PCB integration.
Wide operating temperature range of -40 to 85 degrees Celsius. Forward voltage of 2.1 V and forward current of 30 mA. Power dissipation rated at 75 mW. Grey face with white segments offers high contrast. Right side decimal orientation for precise display needs.
Compact external dimensions: 14.1 mm x 3 mm x 10 mm. Explore comprehensive LED Display options with Kingbright products at EnvMart for advanced industrial, laboratory, and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this display is 12 millicandela, providing strong visibility in various lighting conditions.
The forward voltage is 2.1 V, and the forward current is 30 mA, making it suitable for energy-efficient operation.
The external dimensions of the KCDA02-123 are 14.1 mm in width, 3 mm in height, and 10 mm in depth.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
This model utilizes a surface mount type, facilitating easy integration onto printed circuit boards.
The character height is 5.1 mm, and the character width is 3.2 mm, ensuring clear numerical representation.
The KCDA02-123 features an anode common connection, which is typical for many LED displays.
The LEDs in this display are green, providing a clear and vibrant indication.
The power dissipation rating is 75 mW, contributing to its energy-efficient operation.
This model has a right side decimal orientation, allowing for precise display needs.
Yes, this display is RoHS compliant, adhering to environmental and quality standards.
It is suitable for applications in industrial electronic panels, instrumentation displays, and embedded systems requiring clear numeric output.
