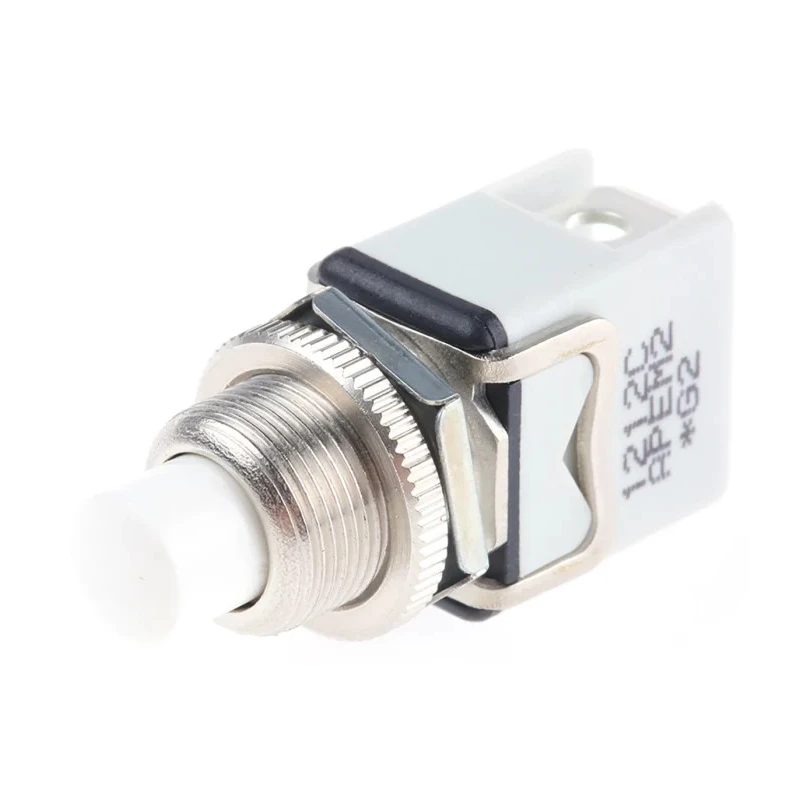

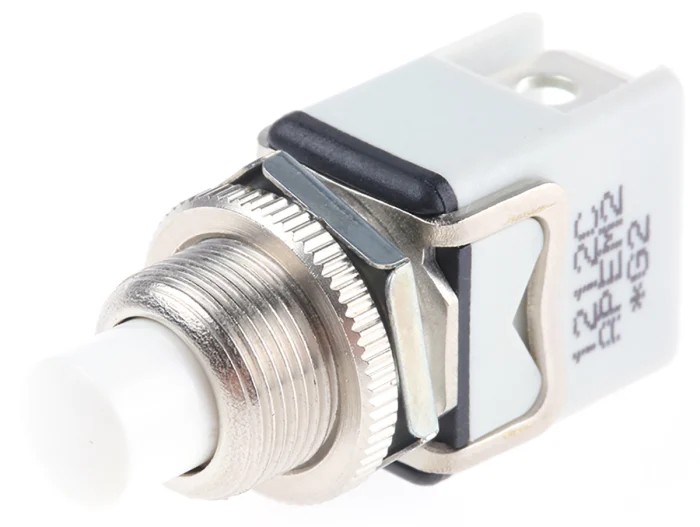

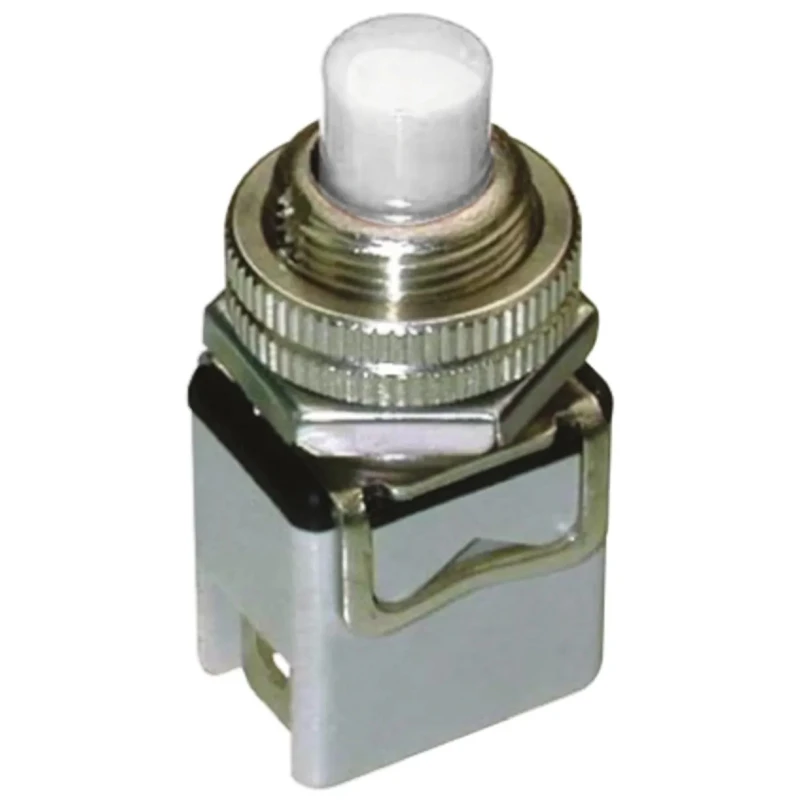

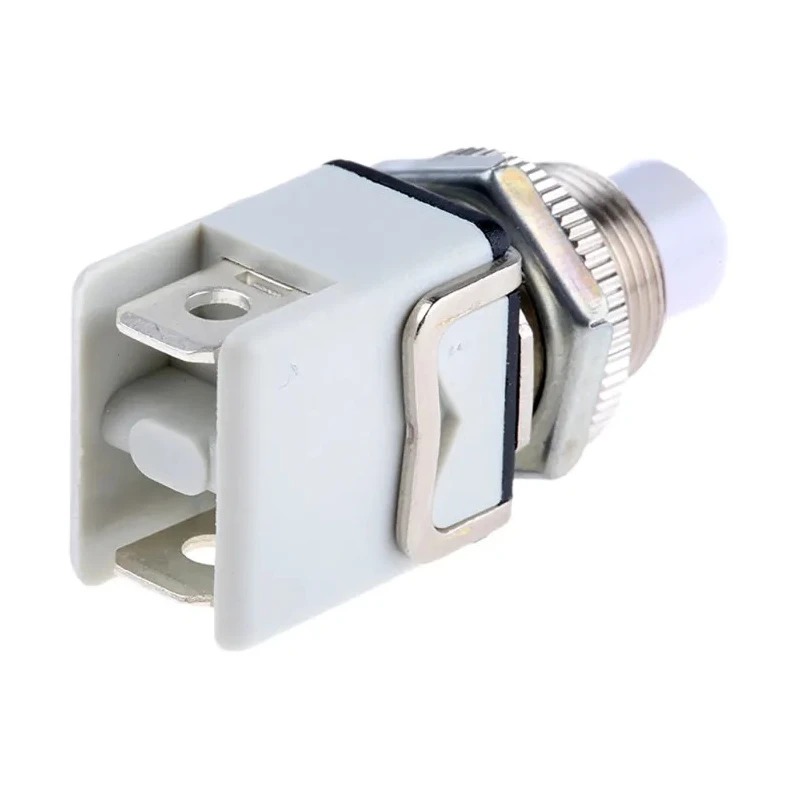

APEM 1200 Series Momentary Push Button Switch Panel Mount 12.2 mm Cutout SPST 1212C WHITE

APEM 1212C WHITE is a 1200 Series momentary push button switch designed for panel mounting applications. With a 12.2 mm panel cutout diameter and 22 mm rear depth, this switch fits compact industrial control setups. It uses a plunger style white actuator made for single-pole single-throw (SPST) momentary switching operation. Its terminals comprise 0.250in solder tabs, facilitating solid panel-mounted electrical connections.

This switch operates reliably within an ambient temperature range between -20°C and 55°C. It has a contact rating of 4A at 250 VAC, 8A at 125 VAC, and 4A at 24 VDC, suitable for varied control voltages. The switch materials include silver contact points delivering low 10 mΩ contact resistance to minimize voltage drop and energy loss. Insulation resistance exceeds 1000 MΩ at 500 VDC, and dielectric strength is rated at 2000 Vrms ensuring safe operation under voltage stress.

The mechanical endurance of the switch is rated for 10,000 actuations, guaranteeing long service life in industrial or laboratory settings. This non-illuminated white plunger actuator is easy to engage and release, providing momentary switching. Panel mounting is achieved by a bush thread of M12 x 0.75 with a 12.2 mm panel cutout.

Accessories such as the push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319) are available separately to enhance protection and aesthetics as required. The switch complies with RoHS directives and is manufactured in France, ensuring high European quality standards.

The switch is ideal for industrial automation, control panels, electrical equipment, and instrumentation applications requiring momentary push button control functionality. It suits environments needing reliable manual switching with clear tactile feedback and negligible contact resistance.

Its compact panel mounting design fits narrow spaces while providing secure switch operation. Non-illuminated for use where indicator light is not necessary or separately controlled. Explore the range of APEM 1200 Series Push Button Switches and accessories in EnvMart for professional electrical and automation solutions.
