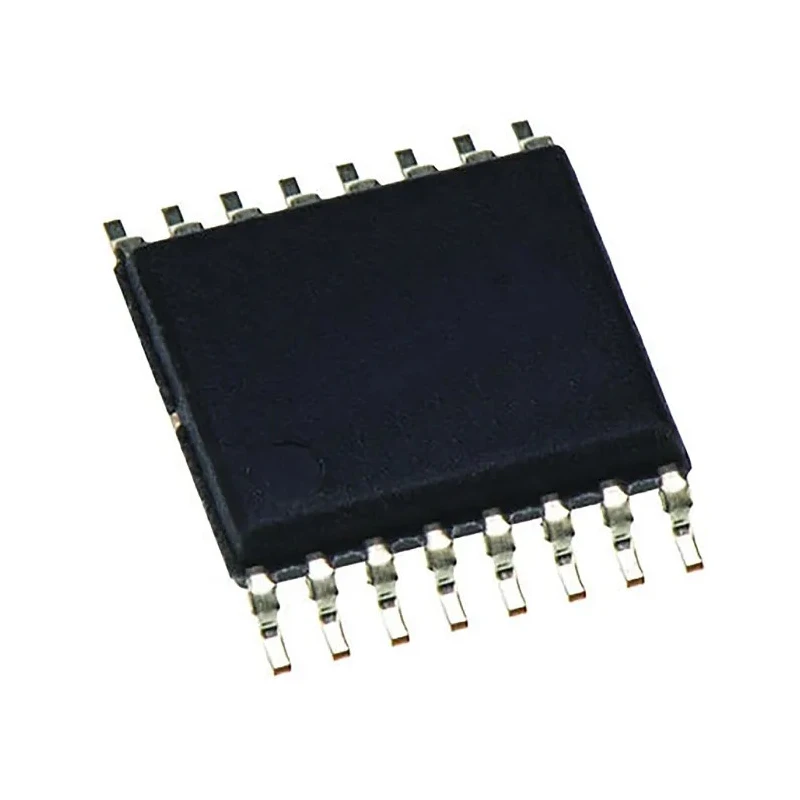

Texas Instruments Voltage Level Translator Bus Transceiver 16-Pin TSSOP SN74AVCH4T245PWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | SN74AVCH4T245PWR |
| Mount Type | Surface |
| Output type | 3 State |
| Series | SN74AVCH4T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AVCH |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -12mA |
| Maximum Propagation Delay Time @ CL | 5.6ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 12mA |
| Translation | Level Shifting, Voltage Translator |
Key Features
- Operates with a minimum supply voltage of 1.2V and maximum of 3.6V.
- Provides a maximum propagation delay time of 5.6 nanoseconds at a capacitive load of 5 pF.
- Features 3-state output type suitable for bus transceiver functions.
- Supports bi-directional data flow with level shifting capabilities.
- Operates reliably within a temperature range of -40°C to 85°C.
- Compact 16-pin TSSOP surface-mount package with dimensions of 5.1mm length and 1.05mm height.
- Maximum low-level output current is 12mA with maximum high-level output current of -12mA.
- Designed without automotive standard compliance and no specific standards or approvals listed.
Product Description
Texas Instruments SN74AVCH4T245PWR Voltage Level Translator Bus Transceiver is a high-performance device from the 74AVCH family designed for seamless level shifting and voltage translation in bi-directional bus communication systems.
This logic IC operates within a supply voltage range of 1.2V to 3.6V, supporting interface voltages for modern low-voltage electronics. The device ensures fast signal propagation with a maximum delay time of 5.6ns at a capacitive load of 5pF, making it ideal for high-speed digital applications.
Packaged in a compact 16-pin Thin Shrink Small Outline Package (TSSOP), measuring 5.1mm in length and 1.05mm in height, it is optimized for surface mounting in space-constrained circuit designs. The output type is a 3-state bus transceiver configuration, allowing multiple devices to share data lines efficiently without interference.
The bi-directional voltage translation functionality enables communication between logic devices operating at different voltage levels, facilitating compatibility and signal integrity across systems. It maintains operation across a wide industrial temperature range from -40°C to 85°C, suitable for harsh environments.
This product does not carry specific automotive certification or other standards approvals but meets general semiconductor requirements for reliable performance in electronics, power, and connector assemblies.
Bi-directional bus transceiver logic IC for voltage level translation. Compatible with voltage supply range from 1.2V to 3.6V. High speed with maximum propagation delay time of 5.6 nanoseconds. Compact 16-pin TSSOP surface-mount package dimensions: 5.1mm x 1.05mm.
Operates within industrial temperature range from -40°C to 85°C. 3-state output suitable for bus-line control. Maximum current output ±12mA ensuring reliable drive capability.
This voltage level translator is ideal for industrial, electronic design, and manufacturing applications requiring efficient voltage interfacing and fast data communication. Compatible with a variety of control systems, embedded designs, and semiconductor solutions.
For additional technical details, datasheets and design files from Texas Instruments can be referred. This product is part of the broad catalog of semiconductor bus transceivers available for procurement via EnvMart.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 1.2V to 3.6V.
The maximum propagation delay time is 5.6 nanoseconds at a capacitive load of 5 pF.
It features a 3-state output type suitable for bus transceiver functions.
It operates reliably within a temperature range of -40°C to 85°C.
The compact 16-pin TSSOP package measures 5.1mm in length and 1.05mm in height.
The maximum low-level output current is 12mA.
Yes, it supports bi-directional data flow with level shifting capabilities.
The maximum high-level output current is -12mA.
This model functions as a bus transceiver, facilitating voltage level translation.
It has a total of 16 pins.
The country of origin is India.
No, it is designed without automotive standard compliance and does not carry specific standards or approvals.
