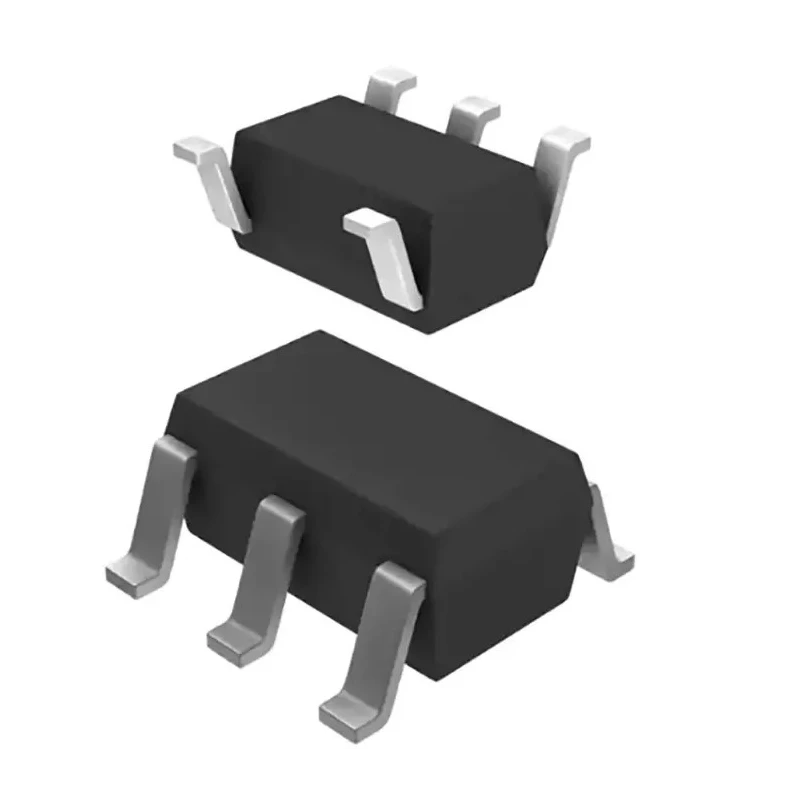

DiodesZetex High Side 1 Load Switch Power Switch IC 3A 5-Pin TSOT-25 AP22815BWT-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.9mm |
| Model | AP22815BWT-7 |
| Width | 2.8mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP22815 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOT-25 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 3A |
| Number of outputs | 5 |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Switch On Resistance RdsOn | 50mΩ |
Key Features
- Features low switch on resistance of 50 milliohms for efficient power delivery.
- Supports a maximum supply voltage of 5.5 volts with minimum supply voltage of 3 volts.
- Operates reliably in a wide temperature range from -40 to 85 degrees Celsius.
- Optimized for USB and hot-swap applications with active low enable functionality.
- Compact TSOT-25 package measuring 2.9 mm length by 2.8 mm width and 1 mm height.
- Includes fast short-circuit and overvoltage protection response for system robustness.
- Surface mount design facilitates easy PCB integration in power management circuits.
Product Description
The DiodesZetex AP22815BWT-7 is a high side, single-channel load switch designed to handle currents up to 3 amperes with a low on-resistance of 50 milliohms. Packaged in a compact TSOT-25 surface mount form factor, this power switch IC measures 2.9 mm in length, 2.8 mm in width, and 1 mm in height, making it suitable for space-constrained electronic applications.
Its operational voltage range spans from 3 to 5.5 volts, making it ideal for USB power applications and other hot-swap environments that require reliable overvoltage and short-circuit protection. The device offers active low enable input to control power delivery with fast response times to abnormal conditions, enhancing system reliability and protection.
The AP22815BWT-7 supports operation across a broad temperature range from -40 to 85 degrees Celsius, suitable for industrial and commercial environments. Its low-profile package contributes to thermal efficiency while simplifying PCB layout for power management designs.
This power switch IC is widely used in industrial, consumer electronic, computer, and automotive-grade power regulation and power sequencing functions where precise high-side switching is needed. Applications include USB power distribution, battery management, and overvoltage protected power buses.
Low switch on resistance for minimized power loss and heat generation. Fast short-circuit and overvoltage response for enhanced system safety. Surface mount TSOT-25 package supports compact, high-density circuit layouts.
Wide operational temperature supports harsh industrial applications. Single-channel high side switch simplifies design for load power control. Manufactured in China, this component is part of the AP22815 series by DiodesZetex, recognized for high-quality semiconductor power management devices.
Explore the Electronics & Electricals category for more Power Switch ICs and related components at EnvMart to support your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for the AP22815BWT-7 is 3 amperes.
It features a low switch on resistance of 50 milliohms, which helps in efficient power delivery.
The device operates within a voltage range of 3 to 5.5 volts.
The TSOT-25 package measures 2.9 mm in length, 2.8 mm in width, and 1 mm in height.
This model operates reliably in a temperature range from -40 to 85 degrees Celsius.
It utilizes a surface mount design, facilitating easy PCB integration.
Yes, it includes fast short-circuit and overvoltage protection for enhanced system safety.
It features an active low enable input, which controls power delivery effectively.
This power switch IC is used in applications such as USB power distribution and battery management.
The AP22815BWT-7 has a pin count of 5.
It is part of the AP22815 series by DiodesZetex.
The AP22815BWT-7 is manufactured in China.
