Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 3A Operating Current BTS50901EJAXUMA1

Free Delivery in India | Lowest Global Shipping Charges

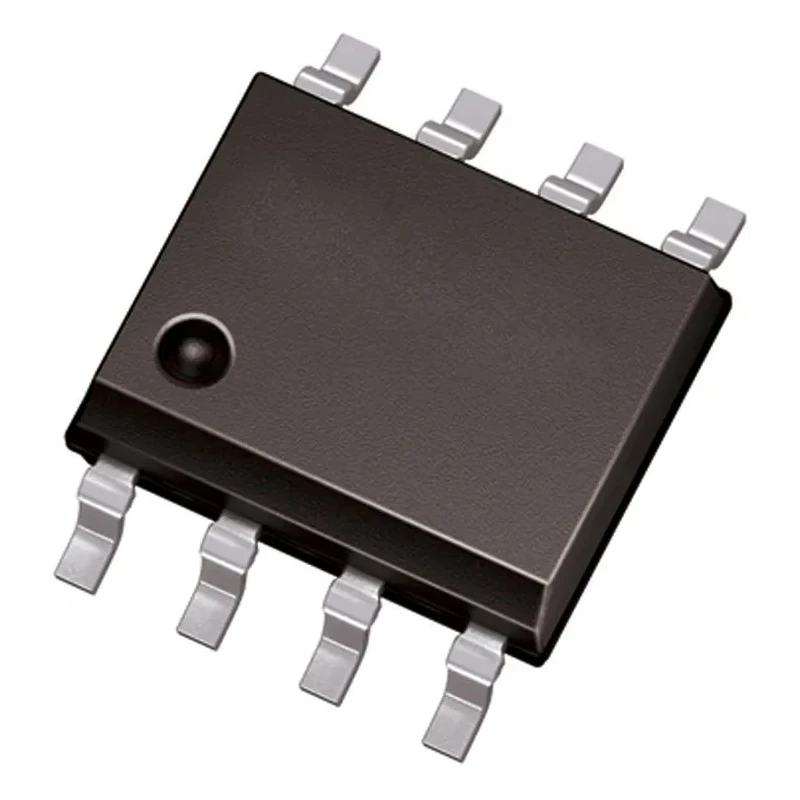

Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 3A Operating Current BTS50901EJAXUMA1

Name: Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 3A Operating Current BTS50901EJAXUMA1
Brand: Infineon
SKU: 138876
Price: 1.1 USD
Availability: InStock



Category Power Switch ICs Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.45mm
Length	4.9mm
Model	BTS50901EJAXUMA1
Width	3.9mm
Mount Type	Surface
Number of inputs	1
Series	PROFET
Maximum Operating Temperature	150°C
Package Type	DSO-8
Minimum Operating Temperature	-40°C
Operating Current	3A
Number of outputs	5
Pin Count	8
Automotive Standard	AEC
Maximum Supply Voltage	28V
Minimum Supply Voltage	-0.3V
Switch On Resistance RdsOn	180mΩ

Key Features

This power switch IC has a switch on resistance of 180mΩ.
Designed for surface mount with an 8-pin DSO-8 package.
Supports a maximum supply voltage of 28V and operates with a current up to 3A.
The device operates reliably between temperatures of -40°C to 150°C.
Incorporates protections against overload, short circuit, thermal shutdown, overvoltage, and ESD events.
Automotive grade with AEC standard compliance.
The compact dimensions are 4.9mm length, 3.9mm width, and 1.45mm height.
Features 5 outputs and 1 input, enabling smart high-side switching applications.

Product Description

Infineon BTS50901EJAXUMA1 is a PROFET series Smart High-Side Power Switch integrated circuit that offers single-channel power switching for efficient load management in industrial, automotive, and electronic applications.

Designed in an 8-pin DSO-8 surface mount package, this IC supports a maximum supply voltage of 28V and continuous operating current of up to 3A. Its low switch on resistance of 180mΩ ensures minimal power dissipation and efficient energy handling, essential for robust power management systems.

The device includes multiple built-in protection features such as overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, and electrostatic discharge (ESD) immunity, providing reliability and safety in critical environments.

Operating within a broad temperature range of -40°C to 150°C, the switch is suitable for demanding automotive and industrial scenarios, aligned with AEC standards for automotive quality and durability.

The compact dimensions of 4.9mm length, 3.9mm width, and 1.45mm height allow easy integration into space-constrained printed circuit boards (PCBs). This power switch IC has a switch on resistance of 180mΩ. Designed for surface mount with an 8-pin DSO-8 package.

Supports a maximum supply voltage of 28V and operates with a current up to 3A. The device operates reliably between temperatures of -40°C to 150°C. Incorporates protections against overload, short circuit, thermal shutdown, overvoltage, and ESD events.

Automotive grade with AEC standard compliance. The compact dimensions are 4.9mm length, 3.9mm width, and 1.45mm height. Features 5 outputs and 1 input, enabling smart high-side switching applications. This device is ideal for various applications including automotive load management, industrial controllers, power distribution boards, and electronic switch modules.

Explore EnvMart for a wide selection of Infineon semiconductor components and power management ICs suitable for your industrial and electronic designs.
