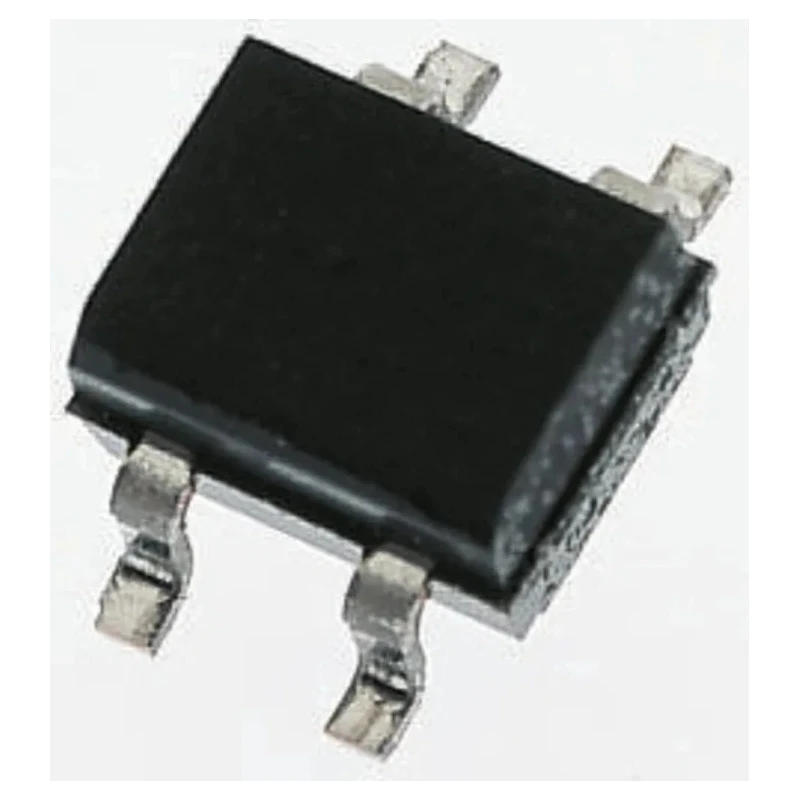

Vishay Bridge Rectifier 100 V 30 A, 4-Pin Single Surface Mount DFS Package DF01SA-E3/77

Vishay DF01SA-E3/77 Bridge Rectifier is a single-phase diode module designed for converting alternating current (AC) into direct current (DC). It features a compact DFS surface mount package suitable for efficient integration into PCB assemblies. The diode bridge arrangement provides consistent polarity output regardless of the AC input phase, enabling reliable power rectification.

With a peak reverse repetitive voltage (Vrrm) of 100 V and a continuous forward current rating of 1 A, this rectifier is engineered to handle moderate power applications efficiently. It can withstand peak non-repetitive forward surge currents up to 30 A, providing transient current handling capabilities essential for demanding switching environments.

The rectifier supports a wide operating temperature range from -55°C to 150°C, ensuring dependable performance across industrial and commercial applications. The component’s compact size - measuring 8.51 mm in length, 6.5 mm in width, and 3.3 mm in height - facilitates high-density PCB layouts.

Constructed with a glass-passivated die, the rectifier offers low forward voltage drop (1.1 V typical) which enhances energy efficiency. Peak reverse current is limited to 500 μA, reducing leakage and power loss. The device complies with UL certification (file E94661) and meets RoHS requirements, confirming adherence to safety and environmental standards.

This bridge rectifier is suitable for various applications including power supplies, battery chargers, and AC/DC conversion modules in industrial machines, HVAC systems, and consumer electronics. Its robust design and surface mount packaging make it an optimal choice for modern electronic manufacturing processes.

Designed with a DFS package suitable for surface mounting on PCBs. Peak reverse repetitive voltage rating of 100 V ensures robust operation under voltage stress. Forward current of 1 A with peak surge current capacity up to 30 A for transient conditions.

Operates reliably within a temperature range of -55°C to 150°C. Compact dimensions: length 8.51 mm, width 6.5 mm, height 3.3 mm. Utilizes glass-passivated die construction for low forward voltage drop and high current capability.

Ideal for use in power supplies, electronic appliances, and industrial PCB applications. Compliance ensured via UL file E94661 and RoHS directives for environmental safety. Explore more Vishay semiconductor components and bridge rectifiers on EnvMart for your next project requirements.
