| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 1.65mm |
| Model | BAS16TT1G |
| Width | 0.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-75 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 75V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 6ns |

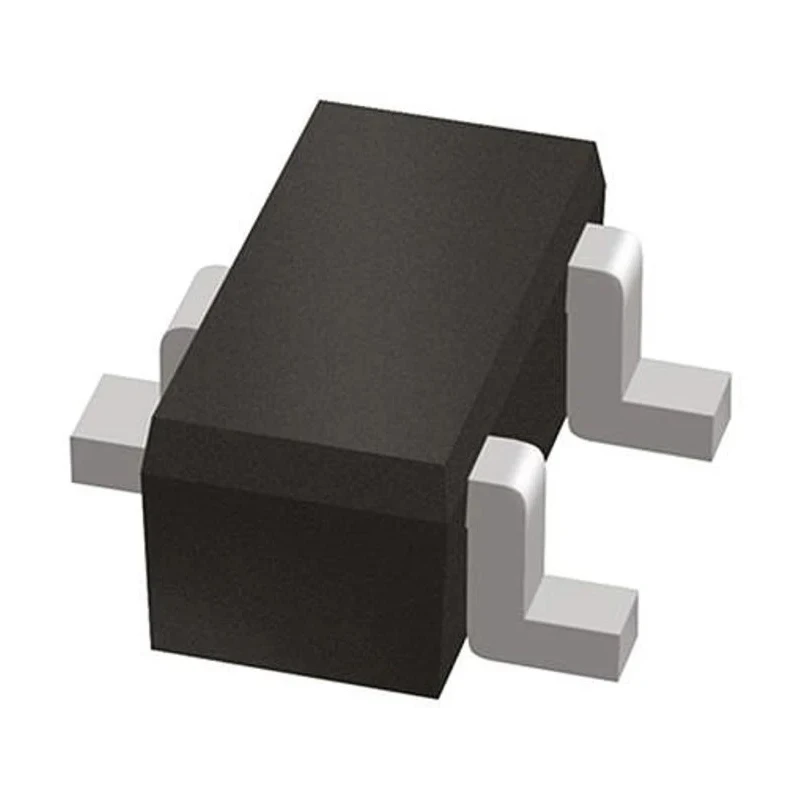

onsemi BAS16TT1G Schottky Diode is a compact, surface-mounted discrete semiconductor component designed for high-efficiency switching and rectification applications in electronic circuits. It offers a maximum continuous forward current of 200 mA and can withstand a peak reverse repetitive voltage of 75 V, making it suitable for low power rectification.
The diode is housed in a space-saving SC-75 package measuring 1.65 mm in length, 0.9 mm in width, and 0.9 mm in height. Its low forward voltage drop of 1.25 V enhances power efficiency and reduces heat generation. Operating temperature limits range from -55°C to 150°C, allowing reliable performance in various industrial, consumer electronics, automotive, and communication system environments.
This device features a peak non-repetitive forward surge current of 500 mA and a very fast reverse recovery time of 6 ns, which is critical for switching applications requiring fast response and low switching losses. The single diode configuration with three pins supports surface mount technology, improving manufacturing efficiency.
The BAS16TT1G does not carry specific automotive or industry approvals but is a small signal switching Schottky diode suitable for a wide range of electronic designs including power management, signal clamping, and freewheeling diode roles in power supplies and converters.
This diode is built for small signal switching and rectification at low current and voltage levels. Its compact SC-75 surface mount package supports automated assembly lines. Fast recovery time ensures efficient switching and minimum signal distortion.
Wide operating temperature range supports demanding industrial and consumer applications. Low forward voltage drop minimizes power losses and heat. The 3-pin configuration facilitates easy integration into PCB layouts. Explore EnvMart's Electronics & Electricals category for more on semiconductors, diodes, and specialized rectifiers for industrial, laboratory, and manufacturing applications.
