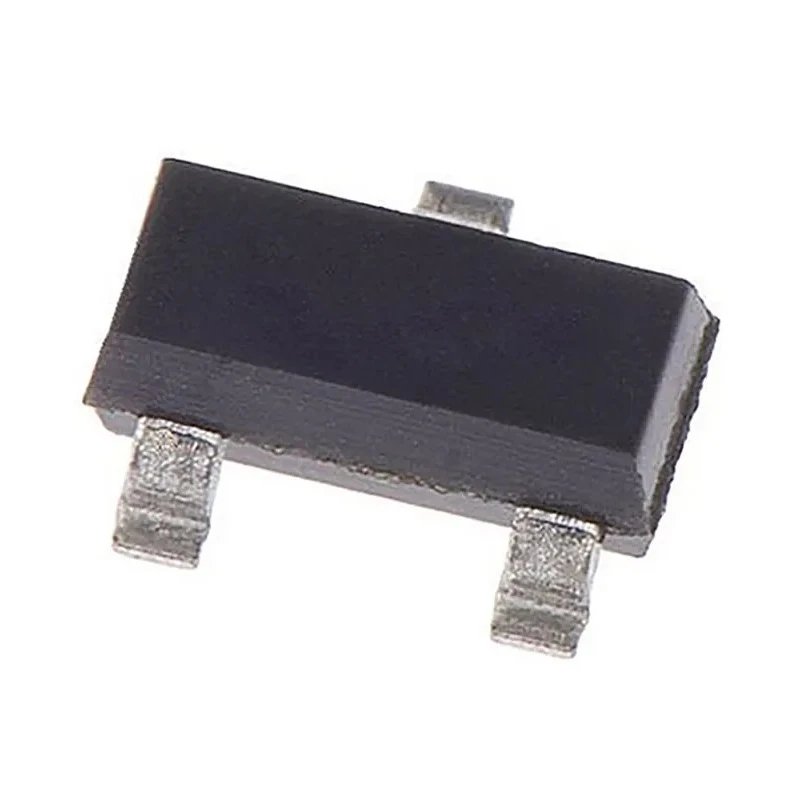

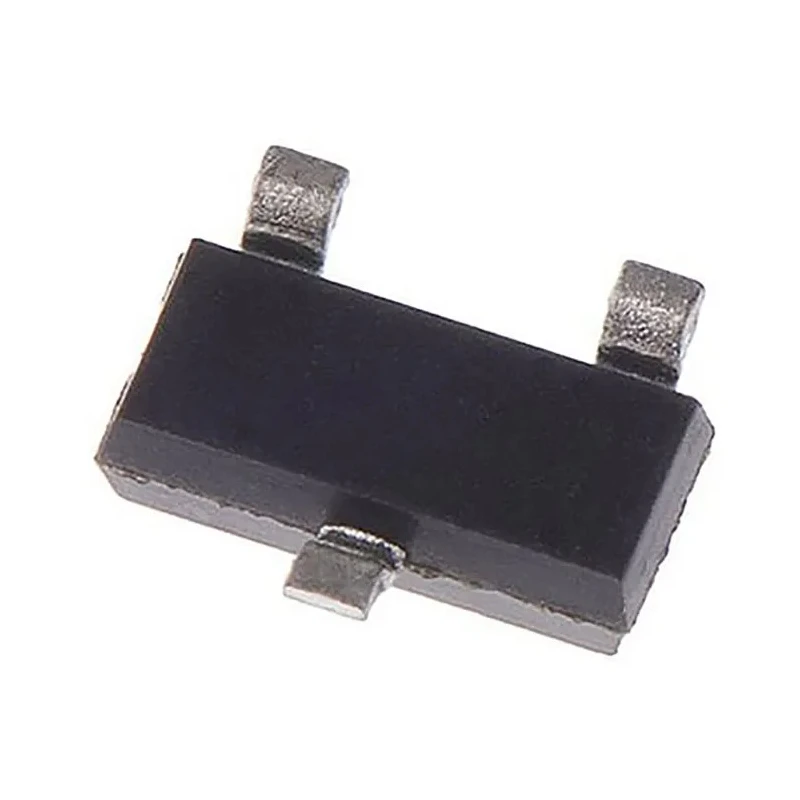

onsemi 50 V 500 mA Schottky Diode Single Configuration Surface Mount SOT-23 SB05-05C-TB-E

onsemi SB05-05C-TB-E Schottky Diode is a surface mount diode designed for low voltage, high-frequency rectification and polarity protection applications. It employs the Schottky barrier principle to provide an optimal forward voltage drop and reverse leakage current characteristic.

This diode features a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage rating of 50 V, making it suitable for various electronic circuits requiring efficient switching and rectification.

The device is housed in a compact SOT-23 package that measures 2.9 mm in length, 2.5 mm in width, and 1.15 mm in height, facilitating high-density PCB assembly. It has a maximum forward voltage of 550 mV and a peak reverse recovery time of 10 ns, enabling fast switching with minimal losses.

Operating temperature range spans from -55°C to 125°C, ensuring reliable performance under diverse environmental conditions. The diode also supports a peak non-repetitive forward surge current of 5 A and maintains a low peak reverse current of 50 µA for energy-efficient circuit operation.

Additional features include an epoxy molded case that protects the device from environmental and mechanical stresses and a lightweight package weighing approximately 11.7 mg, making it optimal for automated assembly processes.

The diode supports a maximum continuous forward current of 500 mA. It has a peak reverse repetitive voltage rating of 50 V. The maximum forward voltage is 550 mV ensuring low voltage drop. Designed for high-frequency applications with a peak reverse recovery time of 10 ns.

Suitable for operating temperatures ranging from -55°C to 125°C. Compact SOT-23 package with dimensions: 2.9 mm length, 2.5 mm width, and 1.15 mm height. Peak non-repetitive forward surge current rating of 5 A. Low peak reverse current of 50 µA ensures efficient performance.

Epoxy molded case with lightweight construction, ideal for automated board assembly. This Schottky diode is appropriate for industrial, electronics manufacturing, telecommunications, automotive non-standard applications, and general electronic device protection.
