| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 2.2mm |
| Model | BAT54SWT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Series |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |
| Fairchild 30V 200mA, Dual Schottky Diode, 3-Pin SOT-323 BAT54SWT1GBrand | Fairchild Semiconductor |

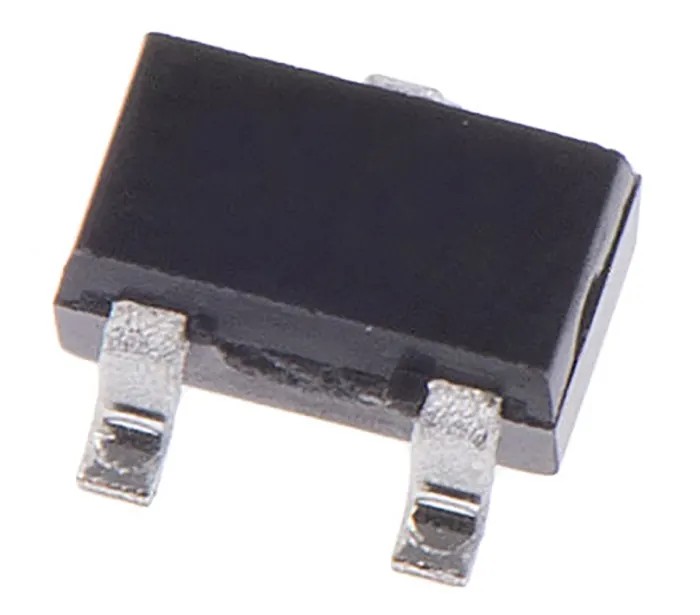

The onsemi BAT54SWT1G is a 30 V, 200 mA surface mount switching diode housed in a compact 3-pin SC-70 package. It utilizes Schottky barrier technology to achieve an efficient low forward voltage drop and low reverse current, making it ideal for high-frequency switching and low voltage rectification applications.
Designed for automated board assembly processes, the diode features epoxy moulding for mechanical strength and reliability. Its compact dimensions (2.2 mm length, 1.35 mm width, and 0.9 mm height) and lightweight package (~11.7 mg) make it excellent for space-constrained electronic designs.
This diode operates safely within a temperature range from -55°C to 125°C and has a peak non-repetitive forward surge current of 600 mA. Its peak reverse repetitive voltage is rated at 30 V, with an ultra-fast reverse recovery time of 5 ns. The maximum forward voltage is 800 mV, supporting efficient power management in switching circuits.
The BAT54SWT1G meets stringent automotive standards with AEC-Q101 qualification, ensuring robustness and suitability for automotive and industrial electronics. Package configuration and mounting type are tailored for surface mount technology (SMT) enabling optimal placement on PCBs.
Suitable for low voltage, high-frequency rectification applications. Efficient Schottky barrier design reduces forward voltage drop and leakage current. Compact 3-pin SC-70 surface mount package. Wide operating temperature range (-55°C to 125°C) ensures versatility.
Fast recovery time of 5 ns for high-speed switching. Peak forward surge current of 600 mA supports transient loads. Lightweight epoxy moulded body enhances device durability. Compliant with automotive AEC-Q101 certification for quality assurance.
Ideal for automotive, industrial, and consumer electronic applications.
This product is an essential component in industrial, automotive, and consumer electronics circuits requiring reliable switching diodes with low forward voltage drop and fast recovery. For more semiconductor and diode solutions, explore EnvMart’s extensive electronics catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
