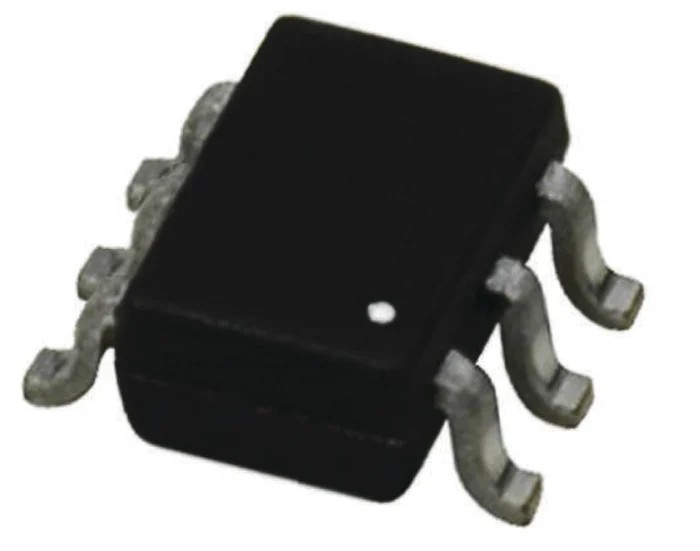

DiodesZetex 30 V 200 mA Surface Mount Switching Diode 6-Pin SC-88 BAT54TW-7-F

DiodesZetex BAT54TW-7-F is a highly reliable 30 V 200 mA surface mount switching diode housed in a 6-pin SC-88 package. It is engineered for semiconductor applications requiring efficient switching with low forward voltage and fast recovery times.

The device features a maximum continuous forward current of 200 mA and handles a peak non-repetitive surge current up to 600 mA. With a maximum forward voltage of 1 V, the diode minimizes power loss for improved circuit efficiency.

Its peak reverse repetitive voltage rating of 30 V and very low peak reverse current of 2 μA enable robust protection and safe operation in sensitive electronic circuits. The isolated diode configuration offers flexibility for various design needs.

The fast peak reverse recovery time of 5 ns makes this diode suitable for high-speed switching applications in power supplies, signal processing, and automotive electronics.

The component is designed to operate reliably across a wide temperature range from -65°C to 125°C. Its compact dimensions of 2.2 mm length by 1.35 mm width and 1 mm height allow for high-density PCB assemblies.

This switching diode features a maximum continuous forward current of 200 mA. It supports a peak reverse repetitive voltage of 30 V for robust operation. The diode is configured as isolated with a rectifier type of switching suitable for circuit protection.

Pin count is 6, with a compact surface mount SC-88 package for space-efficient layouts. Maximum forward voltage drop is 1 V, ensuring low power dissipation. Capable of handling a peak non-repetitive forward surge current of 600 mA.

Peak reverse current is low at 2 μA, enhancing efficiency and thermal stability. Reverse recovery time is fast at just 5 ns, ideal for high-speed switching circuits. Operates within a temperature range from -65°C minimum to 125°C maximum for diverse environmental conditions.

The compact dimensions are approximately 2.2 mm in length, 1.35 mm in width, and 1 mm in height.

This diode is used extensively in industrial, automotive, consumer electronics, and power management systems, offering excellent switching performance and thermal reliability. Its surface mount nature ensures compatibility with modern automated PCB assembly processes.
