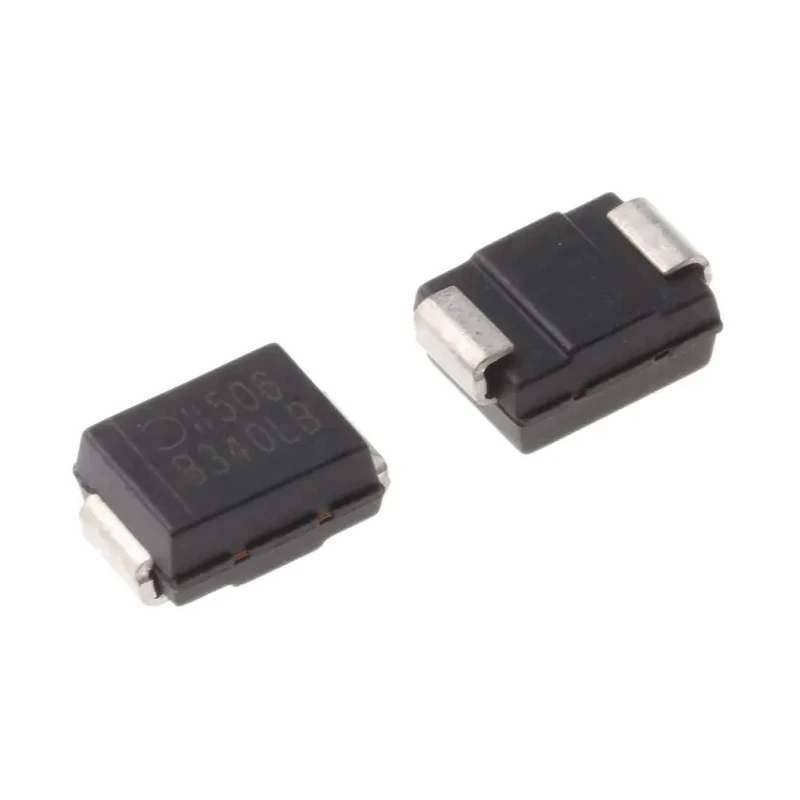

DiodesZetex 40 V 3 A Schottky Diode 2-Pin Surface Mount DO-214AA B340LB-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.3mm |
| Length | 4.57mm |
| Model | B340LB-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | B340LB |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 450mV |
Key Features
- Designed as a Schottky rectifier diode with low forward voltage drop.
- Surface mount package type DO-214AA for compact PCB layout.
- Capable of 3 A continuous forward current and 70 A surge current.
- Peak reverse repetitive voltage of 40 V and peak reverse current of 2 mA.
- Operates across temperature range from -55°C to 125°C for high reliability.
- 2-pin single diode configuration suitable for various electronic circuits.
- Complies with automotive standard AEC-Q101 and FBI specifications.
- Typical forward voltage of 450 mV ensures high efficiency in power applications.
Product Description
DiodesZetex B340LB-13-F is a 40 V, 3 A Schottky diode in a compact 2-pin surface mount DO-214AA package, engineered for high efficiency and reliability in power electronics and semiconductor applications.
This Schottky barrier rectifier offers lower forward voltage than comparable diodes ensuring minimal power loss and improved thermal performance. The device supports continuous forward current up to 3 A and a surge current rating of 70 A, suitable for transient conditions in industrial and automotive circuits.
Its operating temperature range from -55°C to 125°C allows usage in harsh environments, meeting demanding automotive AEC-Q101 standards for quality and reliability. The diode's small form factor with dimensions of 4.57 mm by 3.94 mm by 2.3 mm optimizes PCB space and facilitates efficient assembly in compact circuit designs.
This diode is ideal for industrial electronics, power supply rectification, automotive electronics, telecommunications, and various consumer electronic devices requiring efficient low forward voltage rectification.
Designed as a Schottky rectifier diode with low forward voltage drop. Surface mount package type DO-214AA for compact PCB layout. Capable of 3 A continuous forward current and 70 A surge current. Peak reverse repetitive voltage of 40 V and peak reverse current of 2 mA.
Operates across temperature range from -55°C to 125°C for high reliability. 2-pin single diode configuration suitable for various electronic circuits. Complies with automotive standard AEC-Q101 and FBI specifications. Typical forward voltage of 450 mV ensures high efficiency in power applications.
Compact dimensions of 4.57 mm length, 3.94 mm width, and 2.3 mm height. Explore the extensive range of semiconductor components and Schottky diodes at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
This diode has a peak reverse repetitive voltage rating of 40 V.
The typical forward voltage drop is 450 mV, which contributes to its efficiency in power applications.
The dimensions of this diode are 4.57 mm in length, 3.94 mm in width, and 2.3 mm in height.
It is capable of handling a peak non-repetitive forward surge current of 70 A.
The operating temperature range for this diode is from -55°C to 125°C.
This model comes in a surface mount package type DO-214AA, which is designed for compact PCB layouts.
It complies with the automotive standard AEC-Q101, ensuring quality and reliability in automotive applications.
The peak reverse current is rated at 2 mA.
This diode features a single diode configuration, suitable for various electronic circuits.
The country of origin for this diode is India.
This model meets FBI specifications, ensuring compliance with relevant standards.
